Floor Deck Roll Forming Machines: Comprehensive Guide

Comprehensive Guide to Floor Deck Roll Forming Machines: Specifications, Setup, and More

Floor deck roll forming machines are essential for industries focused on constructing sturdy and long-lasting floors in commercial and industrial buildings. By producing highly durable floor decks with precision and efficiency, these machines have become a critical part of the construction sector globally. In this post, we’ll dive into every aspect of floor deck roll forming machines, from specifications and profile details to installation, maintenance, and FAQs.

1. Introduction to Floor Deck Roll Forming Machines

Floor deck roll forming machines are designed to produce floor decks, which are essential in building multi-story structures, warehouses, and industrial buildings. These machines streamline the production process, creating floor decks with a uniform profile that adds structural strength to floors. The efficiency, precision, and consistency offered by these machines make them invaluable in the construction industry.

2. Machine Description

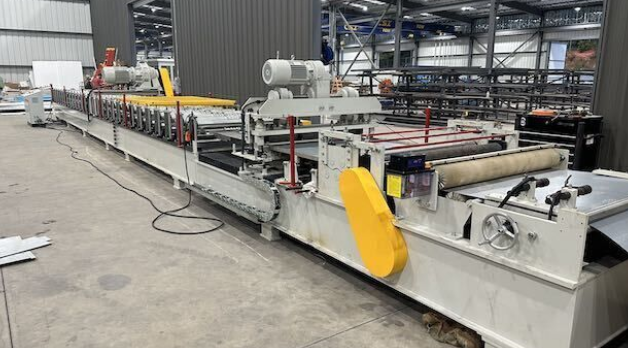

A floor deck roll forming machine is a specialized piece of equipment that transforms coiled sheet metal into floor deck profiles through a continuous bending process. This machine’s design enables high-speed production, maintaining precise dimensional accuracy and a professional finish across thousands of floor deck panels. The machine operates through a series of rollers that progressively shape the metal into the desired profile, ensuring both speed and reliability.

3. Machine Specifications

• Roller Materials: The rollers are typically made of high-grade steel or alloy, often hardened to withstand continuous use and prevent wear, ensuring long-term durability and quality of the profile finish.
• Punching and Notching Capabilities: Many floor deck roll forming machines come with built-in punching and notching systems, allowing for customized shapes and holes in the profiles. This adds versatility to the machine, enabling it to meet specific project requirements.
• Servo Motors and Hydraulic Cutting Systems: Servo motors and hydraulic cutting systems ensure precise, smooth cutting at high speeds, reducing material wastage and enhancing production efficiency.
• Frame Size and Motors: Floor deck roll forming machines are generally built with a heavy-duty frame to provide stability and minimize vibrations during operation. Motors with higher horsepower are typically used to handle the machine’s demands and ensure reliable operation.
• PLC System: A programmable logic controller (PLC) system allows operators to control and monitor the machine easily. This automation feature not only simplifies the operation but also enhances accuracy, making the machine more user-friendly.
• Machine Speed: The machine is designed to operate at high speeds, with an average production rate of up to 15–30 meters per minute, allowing manufacturers to meet large orders efficiently.
• Safety Guards and Enclosures: Equipped with safety guards and enclosures, these machines protect operators from moving parts, helping them comply with industry safety standards. These features ensure safe operation and reduce the risk of accidents.

4. Profile Description

• Materials, Sizes, and Material Gauge: Floor deck profiles are commonly manufactured using galvanized steel, though other materials can be used depending on project requirements. The profile sizes can vary but typically range from 0.8mm to 1.5mm in thickness, providing a balance between structural integrity and ease of installation.
• Market Size for This Profile: The demand for floor deck profiles is driven by construction projects worldwide, particularly in commercial and industrial real estate. With increasing urbanization, the market for floor deck profiles continues to expand.
• Industries Using Floor Deck Profiles: The primary industries that use floor deck profiles include construction, real estate development, and warehouse construction. These profiles are chosen for their strength, longevity, and cost-effectiveness, making them a preferred choice for multi-story structures.
• Popular Countries and Reasons: Floor deck roll forming machines are highly popular in countries with booming construction sectors, such as China, the United States, India, and the Middle East. Rapid urban development and infrastructure expansion drive demand in these regions, making the floor deck roll forming machine a staple in these markets.

5. Additional Features and Optional Extras

• Stackers: Stackers simplify the handling and organization of finished profiles, improving efficiency in high-volume production.
• Remote PLC Systems: These systems allow operators to monitor and control the machine remotely, providing convenience and flexibility, especially in automated production lines.
• Coil Car Tippers, Uncoilers, and Recoilers: Essential for handling raw material coils, these components streamline the feeding and recoiling process, allowing for uninterrupted production.
• Automatic Stackers, Leveling Systems, and Coil Handling Systems: These optional extras further enhance automation and ensure smooth, accurate production.

6. Pricing Range

The cost of floor deck roll forming machines varies widely based on customization, additional features, and brand reputation. Prices can start from as low as $50,000 for basic models, with advanced machines featuring extras and enhanced specifications reaching up to $150,000 or more. Buyers are advised to choose based on their specific production needs and volume requirements.

7. Setup and Installation Process

Setting up a floor deck roll forming machine involves several key steps. First, ensure the machine is securely positioned in a suitable production area. Connect it to a stable power source compatible with its specifications. Calibration is essential to align rollers accurately and ensure precise cutting. Once calibrated, conduct a test run to verify that the machine operates smoothly and produces profiles with the correct dimensions. Proper setup and installation help in achieving optimal performance from the start.

8. Maintenance Requirements

To maintain the floor deck roll forming machine’s efficiency and longevity, regular maintenance is essential. Key maintenance tasks include:

• Lubricating moving parts and checking for wear on rollers.
• Inspecting and maintaining the PLC system and safety features.
• Checking the hydraulic cutting system for consistent performance.
• Ensuring that punching and notching systems are free of obstructions.

Routine checks and timely maintenance help prevent breakdowns and ensure smooth, continuous production.

9. Questions and Answers

Q: What materials are compatible with floor deck roll forming machines?
A: Floor deck roll forming machines are compatible with a range of materials, including galvanized steel, aluminum, and other metals suitable for structural applications.

Q: How long does setup typically take?
A: Depending on the machine size and configuration, setup can take anywhere from a few hours to a full day, especially if calibration and test runs are required.

Q: What are the main maintenance tasks required?
A: Regular lubrication, inspection of moving parts, and checking the cutting, punching, and notching systems are critical to maintain performance.

Q: Can the machine be customized for different deck sizes?
A: Yes, most floor deck roll forming machines offer customizable options to accommodate various deck sizes and gauges.

Q: How is the machine monitored during operation?
A: The machine is monitored via the PLC system, which allows operators to oversee the entire process and make adjustments as needed.

Conclusion

Floor deck roll forming machines are indispensable in modern construction, offering high-speed production and precision for durable floor profiles. By understanding the specifications, setup, maintenance, and available options, buyers can select a machine that best suits their needs. Investing in a floor deck roll forming machine can streamline production, ensuring quality and efficiency in every project.
