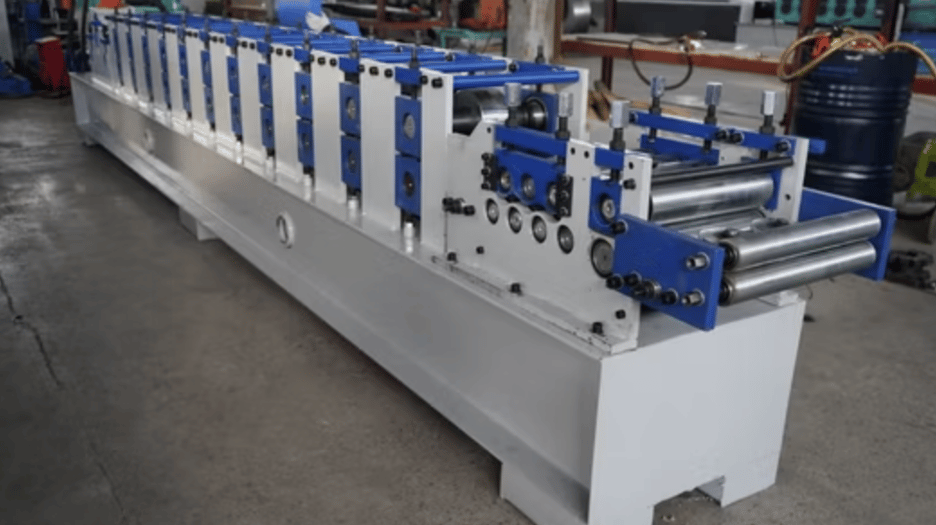

Rake trim roll forming machine: A Comprehensive Guide

The Ultimate Guide to Rake Trim Roll Forming Machines: Specifications, Profile, and Industry Use

Rake trim roll forming machines are essential for producing precise and durable trim profiles for roofing and cladding applications. These machines create rake trim, which is crucial for weatherproofing and enhancing the aesthetic finish of roofing structures. In this comprehensive guide, we'll cover everything from machine specifications to setup, maintenance, and industry applications, helping you decide if this machine is right for your needs.

1. Machine Description and Core Specifications

A rake trim roll forming machine is specifically designed for creating angled trim profiles used in the edges of roofing systems, known as rake trim. This machine operates by feeding metal coils through a series of rollers that shape the material into the desired profile. Built for efficiency and precision, rake trim roll forming machines are a vital tool for roofing manufacturers, contractors, and fabricators looking to streamline their operations and produce high-quality products consistently.

Key Specifications:

• Roller Materials: Typically constructed from hardened or chrome-plated steel, these rollers ensure durability and resistance against wear, which is critical for high-volume production and maintaining profile accuracy over time.
• Punching and Notching: Equipped with advanced punching and notching systems, these machines offer flexibility in profile design by allowing for various notch shapes and punch patterns. This feature is particularly useful for applications requiring custom profiles or designs that suit different structural needs.
• Servo Motors: Servo motors provide enhanced control, speed, and accuracy in the machine's operation. With precision control, operators can produce consistent profiles quickly, reducing waste and operational costs.
• Hydraulic Cutting System: A robust hydraulic cutting system enables smooth, burr-free cuts at high speeds, which is essential for maintaining the integrity and finish of each trim profile.
• Frame Size and Structure: The sturdy frame size of a rake trim roll forming machine ensures stability and minimal vibration, which is crucial for consistent profile shaping, especially during extended production runs.
• Motors and PLC System: Powered by heavy-duty motors and managed by an advanced PLC (Programmable Logic Controller) system, the machine offers fully automated, customizable settings, enabling precise control over speed, profile dimensions, and quality.
• Machine Speed: Production speeds often reach several meters per minute, allowing manufacturers to meet high demand without compromising quality. Adjusting speed based on material and profile complexity is easy with the PLC system.
• Safety Guards and Enclosures: Safety is paramount, and this machine includes guards and enclosures to protect operators. Emergency stops and safety interlocks add layers of security during operation.

2. Profile Description: Materials, Sizes, and Market Size

The rake trim profile produced by this machine has widespread applications in construction, particularly in roofing.

• Materials and Sizes: The machine can handle various materials, including galvanized steel, aluminum, and other coated metals. This versatility makes it suitable for different climates and architectural styles. Standard sizes are available, but many machines allow for customizable dimensions to suit specific project requirements.
• Material Gauge: Rake trim roll forming machines typically work with gauges ranging from 24 to 30, although some models can handle thicker or thinner materials depending on the profile requirements. Gauge flexibility is essential, as different projects may need different thicknesses for structural and aesthetic reasons.
• Market Size and Industry Use: The rake trim market continues to grow, driven by demand in the construction sector for durable roofing solutions. Industries like residential and commercial roofing, architectural cladding, and modular construction are primary users. With the rise in metal roofing popularity, rake trim has become essential for seamless roof finishes.
• Popular Countries and Demand: Rake trim roll forming machines are especially popular in the United States, Canada, and Europe, where stringent building codes and aesthetic requirements drive the need for precise roofing trim profiles. The machine is valued in these regions for its efficiency, durability, and ability to meet diverse design standards.

3. Optional Extras and Accessories

To optimize performance, several optional accessories are available for rake trim roll forming machines:

• Stackers: Automatic stackers streamline the process by neatly stacking finished profiles, making it easier to organize and transport.
• Remote PLC Systems: With remote PLC systems, operators can adjust and monitor the machine's performance from a distance, enhancing operational efficiency.
• Coil Car Tippers, Uncoilers, and Recoilers: These accessories simplify the loading and unloading of heavy metal coils, saving time and reducing the need for manual labor.
• Automatic Stackers, Leveling Systems, and Coil Handling Systems: Advanced stacking and leveling systems can further automate production, enabling high throughput and reducing handling time for each batch.

4. Machine Pricing: Low to High Range

Pricing for rake trim roll forming machines varies based on features, capabilities, and optional accessories:

• Entry-Level Models: Basic models without advanced automation start in the lower price range, typically ideal for smaller operations or companies with limited budget constraints.
• Mid-Range Models: These models include more automation, such as servo motors, advanced punching systems, and enhanced PLC control, offering a balance between cost and functionality.
• High-End Models: Fully automated machines with comprehensive safety features, high-speed capabilities, and additional accessories like stackers and remote control systems are at the higher end. These models are well-suited for large-scale manufacturers aiming for maximum efficiency and minimal manual intervention.

5. Setup and Installation Process

Setting up a rake trim roll forming machine involves several key steps:

1. Site Preparation: The installation area should be spacious and well-equipped with appropriate power supplies and ventilation.
2. Machine Assembly: Trained technicians assemble the machine, ensuring all components are correctly aligned and securely mounted.
3. Calibration and Testing: After assembly, the machine undergoes calibration to ensure profile accuracy and production speed. Test runs help verify all settings before full operation.
4. Operator Training: Proper training for operators is essential to ensure efficient and safe operation, covering everything from PLC controls to safety protocols.

Typically, full installation and setup can take a few days to a week, depending on the machine’s complexity and the level of customization required.

6. Maintenance Requirements

Regular maintenance is crucial to keeping the rake trim roll forming machine in peak condition:

• Routine Lubrication: Keeping rollers, bearings, and moving parts lubricated reduces wear and prolongs the life of the components.
• Roller Alignment: Periodically checking and adjusting roller alignment ensures consistent profile quality, especially important in high-volume production.
• PLC Software Updates: Updating the PLC system helps maintain optimal control and efficiency, allowing for the latest in automation and profile management features.
• Cleaning and Inspection: Regularly cleaning the machine and inspecting for any signs of wear or damage will prevent costly downtime and keep operations running smoothly.

By following these maintenance practices, manufacturers can maximize uptime and extend the machine's lifespan, ensuring a solid return on investment.

Conclusion

Rake trim roll forming machines are a vital asset in the roofing and cladding industry, providing the precision, efficiency, and durability required to meet modern construction demands. With options for customization, automation, and a range of material compatibility, these machines offer a solution for businesses of all sizes. Whether you’re looking to expand your roofing product line or optimize current production, investing in a rake trim roll forming machine could be the strategic move that propels your business forward.

Frequently Asked Questions (FAQ)

Q1: What is the production capacity of a rake trim roll forming machine?

A1: Production capacity varies depending on the model and configuration. Basic machines can produce around 10–15 meters per minute, while more advanced models with higher motor power and efficiency can achieve speeds of up to 30–50 meters per minute. The production speed is also influenced by factors such as profile complexity and material thickness.

Q2: Can this machine be customized for different trim profiles?

A2: Yes, many rake trim roll forming machines offer customization options. You can adjust roller configurations, punching and notching patterns, and even material handling features to create different trim profiles. Some machines allow for multiple profiles with quick-change tooling to switch between them efficiently.

Q3: What types of materials can this machine work with?

A3: Rake trim roll forming machines are compatible with a range of materials, including galvanized steel, aluminum, copper, and coated metals. The machine’s capacity to work with these materials depends on its motor strength, roller quality, and gauge range.

Q4: How long does it take to install a rake trim roll forming machine?

A4: Installation time depends on the complexity of the machine and any additional accessories. Generally, it takes about 3 to 7 days, including setup, alignment, calibration, and training for operators. More complex models or custom setups may require additional time.

Q5: What maintenance is required for this machine?

A5: Regular maintenance includes lubricating moving parts, checking and aligning rollers, inspecting the hydraulic cutting system, and cleaning the machine. It’s also important to update the PLC system periodically to maintain efficiency and ensure any newly available features are integrated.

Q6: What safety features are included?

A6: Rake trim roll forming machines are designed with several safety features, such as protective guards, emergency stop buttons, and interlock systems on doors or access points. These features are essential for protecting operators during machine operation and maintenance.

Q7: How much does a rake trim roll forming machine typically cost?

A7: Pricing varies widely depending on the machine’s capabilities, brand, and additional accessories. Basic models can start from around $30,000 to $50,000, while high-end models with advanced automation and extra features may exceed $150,000. Pricing will also depend on the manufacturer and specific customizations.

Q8: Can this machine operate in extreme environmental conditions?

A8: While these machines are generally built for durability, it’s best to operate them in environments that are dry and temperature-controlled to prevent moisture damage, rust, and overheating. If installed in high-humidity or extremely hot or cold conditions, protective enclosures or climate control may be necessary.

Q9: What additional features can I add to increase automation?

A9: Additional automation features include remote PLC control systems, automatic stackers, coil car tippers, and uncoilers/recoilers. These additions streamline production, reduce manual handling, and improve overall efficiency. Automation options can be customized based on your production needs and budget.

Q10: How does a rake trim roll forming machine impact production efficiency?

A10: This machine significantly improves efficiency by automating the profile forming process, minimizing material waste, and reducing the need for manual handling. With high-speed production capabilities, it enables manufacturers to meet large orders quickly while maintaining consistent quality.

Q11: Is operator training required for this machine?

A11: Yes, operator training is recommended to ensure efficient and safe machine use. Most manufacturers or suppliers offer initial training on the PLC system, safety protocols, maintenance requirements, and profile adjustment, which helps maximize productivity and minimize operational risks.
