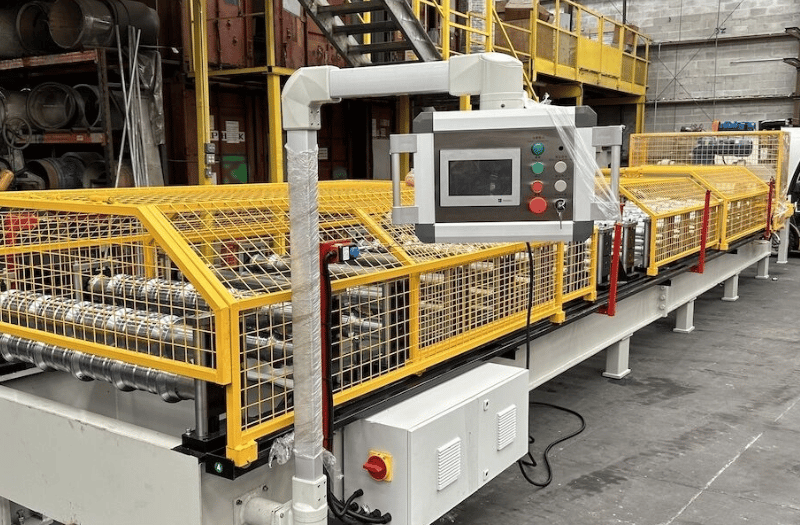

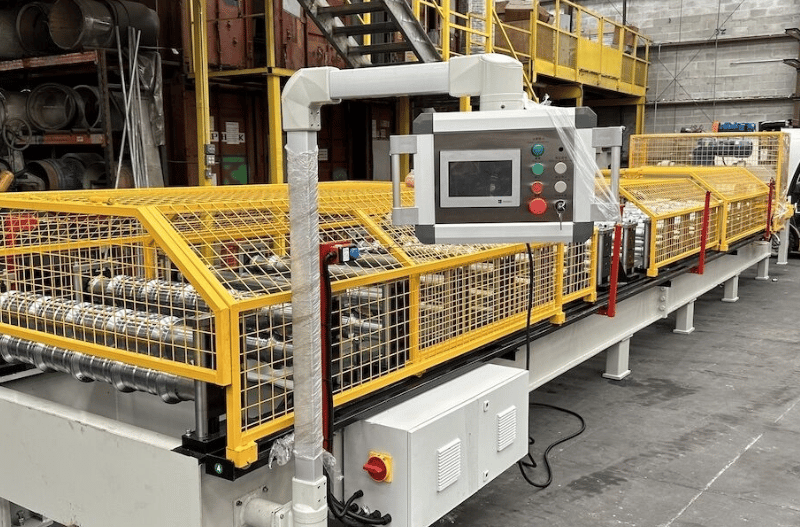

Texas rib panel machine

Texas rib panels are among the most widely used metal roofing and siding profiles in the construction industry. Known for their structural strength, clean lines, and easy installation, these panels are a staple in residential, commercial, and agricultural buildings across North America and beyond.

In this guide, we explore everything you need to know about Texas rib panel roll forming machines—including machine specifications, profile details, applications, pricing, setup, and maintenance. We’ll also explain how Machine Matcher can help you find the right equipment for your business.

What Is a Texas Rib Panel Roll Forming Machine?

A Texas rib panel roll forming machine is a precision-engineered system designed to form metal coils into Texas rib panel profiles through a series of roller stations. These machines are built for high-speed, high-volume production with consistent accuracy.

Texas rib panels typically feature wide flats between raised ribs, providing strength and aesthetics. This machine can process a variety of gauges and materials, making it a versatile addition to any roofing or siding panel production line.

Full Machine Description

These machines are typically composed of the following:

Uncoiler or Coil Car: Loads and feeds metal coils into the machine.
Leveling System (Optional): Flattens the coil material before forming.
Roll Forming Section: A series of precisely machined rollers form the metal into the Texas rib shape.
Punching and Notching Unit: Adds features like fastener slots or vents if needed.
Hydraulic Cutting System: Cuts the panel to the desired length without distorting the profile.
Stacking System (Optional): Automatically stacks the finished panels.
PLC Control Panel: Automates operations and allows recipe management for different sizes or gauges.
Safety Guards and Enclosures: Ensure safe operation during high-speed runs.

Machine Specifications

Roller Materials: Hardened GCr15 steel with hard chrome coating for durability and rust resistance.
Punching and Notching: Hydraulic units with programmable logic for customized features; optional servo-driven accuracy.
Servo Motors: High-precision motors for feeding and cutting operations.
Hydraulic Cutting System: Quick-change blades with hydraulic power packs for efficient, clean cuts.
Frame Size: Heavy-duty steel frame, typically welded 300–400H beam or tube structure, stress-relieved for long-term durability.
Motors: Main drive motors (5.5 kW to 15 kW depending on the machine); gear or chain-driven.
PLC System: Siemens, Mitsubishi, or Delta systems with touchscreen HMI interfaces.
Machine Speed: Standard speeds range from 15–40 meters per minute; high-speed models can reach up to 60 m/min.
Safety Guards & Enclosures: Full-length steel guards, emergency stops, and interlocked access doors.

Texas Rib Panel Profile Description

Materials: Galvanized steel, Galvalume, painted steel, or aluminum.
Panel Widths: Common widths are 36 inches (914 mm) with rib spacing of 9 inches (229 mm).
Panel Lengths: Custom-cut to any required length.
Material Gauge: 26 to 29 gauge for roofing; 22–24 gauge options for siding and commercial applications.

Market Size and Industry Applications

Texas rib panels are used extensively in:

Residential roofing
Agricultural buildings
Warehouses and commercial structures
Storage facilities and workshops

This profile is especially popular in the U.S., Canada, Mexico, and growing markets in Latin America and Southeast Asia. In the U.S., the term "Texas rib" is synonymous with utility panels—thanks to their popularity across the state of Texas and surrounding regions.

Countries and Industries Where This Machine Is Most Popular

Most popular in:

United States: Especially in Texas, Florida, and the Midwest
Canada: Used in both residential and farming industries
Mexico: Rapidly growing roofing panel market
Brazil and Argentina: Popular for prefabricated building systems

Industries:

Construction
Agriculture
Metal building manufacturing
Roofing and cladding suppliers
Fabricators of pre-engineered metal buildings

The popularity stems from the ease of installation, structural integrity, and cost-effectiveness of Texas rib panels.

Optional Extras for Enhanced Productivity

Stackers: Manual or automatic stacking systems for efficient panel collection.
Remote PLC Systems: Monitor and control machines from another location.
Coil Car Tippers: For easy coil loading and positioning.
Uncoilers and Recoilers: Motorized or hydraulic uncoilers up to 10 tons capacity.
Automatic Stackers: Programmable stacking of panels by count or length.
Leveling Systems: Precision flattening to ensure smooth panels before forming.
Coil Handling Systems: Integrated coil feeding and storage systems.

Machine Price: Low to High

Machine pricing depends on several factors, including production speed, automation, and added extras:

Entry-Level Manual Machines: $25,000 – $45,000
Mid-Range Machines with Hydraulic Cutting and PLC: $45,000 – $75,000
High-Speed, Fully Automated Systems with Servo Control: $75,000 – $120,000+
Custom Turnkey Lines with Stackers and Coil Cars: $120,000 – $180,000+

Machine Matcher can help you compare quotes and choose the right system based on your budget and production needs.

How Machine Matcher Can Help

Machine Matcher is your trusted partner for sourcing the right roll forming machinery. We offer:

Access to a wide inventory of new and used Texas rib panel machines
Detailed specs, pricing guidance, and profile matching
Support from experienced engineers and machine specialists
Assistance with shipping, installation, and after-sales support

We help you avoid costly mistakes and ensure the machine fits your exact production needs—whether you’re upgrading, expanding, or starting a new line.

Setup and Installation

Setting up a Texas rib panel roll forming machine involves:

Foundation preparation: Level and reinforced base.
Machine positioning and alignment: Using laser levels for accuracy.
Electrical and hydraulic hookups: Voltage adaptation for your facility.
PLC configuration: Input your panel dimensions and cutting lengths.
Trial run and training: Test run for alignment, cutting precision, and operator training.

Installation typically takes 5–10 days depending on machine complexity and facility layout.

Maintenance and Upkeep

Regular maintenance ensures longevity and consistent performance:

Daily Checks: Clean rollers, check sensors, and oil moving parts.
Weekly Tasks: Check hydraulic oil levels, inspect chains or belts.
Monthly Maintenance: Tighten bolts, check cutting blades, and verify PLC settings.
Annual Service: Full inspection, lubrication of bearings, and software updates.

Machine Matcher offers maintenance support packages and spare parts sourcing to help minimize downtime.

Questions and Answers

Q: Can I run different gauges of steel through one machine?
A: Yes, most machines can handle 26 to 29 gauge with minor roller gap adjustments.

Q: How much space do I need for a Texas rib panel machine?
A: A standard setup requires 25 to 35 meters in length and 3–5 meters in width depending on stackers and coil handling.

Q: Is operator training required?
A: While machines are automated, operator training is essential for safe and efficient production.

Q: Can I add stackers or automation later?
A: Yes, many machines are modular and can be upgraded with additional systems.

Q: Does Machine Matcher help with international shipping and customs?
A: Yes, we assist with logistics, documentation, and import/export compliance globally.
