The Complete Guide to Jamb Trim Roll Forming Machines

If you’re in the construction or door manufacturing industry, you’ve likely encountered the importance of jamb trim profiles. A reliable jamb trim roll forming machine can streamline production, ensuring you meet demand with consistent quality. This guide dives into the essential features, specifications, and extras of the Jamb Trim Roll Forming Machine, along with setup, maintenance, and a handy Q&A section to answer common questions.

1. Machine Description

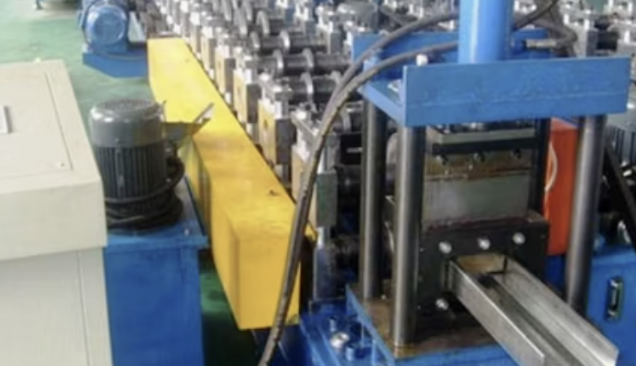

The Jamb Trim Roll Forming Machine is engineered to produce high-quality jamb trims with precision and efficiency. Known for its robustness and advanced features, this machine is capable of processing various materials, allowing users to achieve specific profile shapes and sizes tailored to industry needs. Whether for interior or exterior applications, the Jamb Trim Roll Forming Machine ensures smooth, durable, and customizable trims ready for the construction sector.

2. Machine Specifications

• Roller Materials: The machine is equipped with durable rollers, often made from hardened steel, to ensure long-lasting performance and resistance to wear. Roller design allows the creation of precise jamb profiles, even with high-volume runs.
• Punching and Notching: Featuring customizable punching and notching stations, the machine can add unique cutouts or reinforcements directly into the profile during the roll forming process, ideal for specific applications like hinges or locks.
• Servo Motors: High-precision servo motors power the feeding and shaping process, providing reliable control over profile dimensions, reducing material waste, and allowing efficient operation.
• Hydraulic Cutting Systems: The hydraulic cutting system ensures smooth, burr-free cuts, essential for a professional finish. This system is designed for minimal maintenance and maximum precision, regardless of production speed.
• Frame Size: The machine’s frame is crafted to withstand heavy-duty use while maintaining stability. Standard models often include a reinforced frame that prevents vibrations, ensuring that the profile remains accurate over extended production runs.
• Motors: Equipped with high-torque motors, the machine can maintain a steady production rate while handling various material thicknesses without compromising quality.
• PLC System: A Programmable Logic Controller (PLC) system integrates advanced control functions, allowing operators to set specifications, monitor production, and adjust processes easily.
• Machine Speed: Depending on configuration, the machine typically operates at speeds of 10 to 40 meters per minute, ideal for high-demand production settings.
• Safety Guards and Enclosures: Comprehensive safety guards and enclosures protect operators from moving parts, ensuring compliance with industry safety standards and minimizing risk during operation.

3. Profile Description

• Materials: Jamb trims produced by this machine can be made from materials like galvanized steel, aluminum, and other metals commonly used in construction.
• Sizes and Material Gauge: The machine is compatible with various widths and gauges, commonly producing profiles ranging from 0.3mm to 2mm thickness.
• Market Size: The jamb trim profile is widely used in construction, especially for door framing applications. As construction and infrastructure projects increase globally, so does the demand for quality jamb trims.
• Industries that Use this Profile: The primary industry is construction, especially sectors focused on door and window frame production. Profiles made by this machine can be found in residential, commercial, and industrial projects.
• Popular Countries and Reasons: This machine is particularly popular in the United States, Germany, and Canada, where the construction industry has high demand for standardized, high-quality jamb trims. These markets prioritize efficiency, durability, and compliance with stringent building codes, all met by this roll forming machine.

4. Optional Extras

To increase productivity and automation, the following optional extras can be added:

• Stackers: Automated stackers organize the finished profiles, ready for packaging, reducing manual handling and improving workflow efficiency.
• Remote PLC Systems: Allows remote monitoring and adjustment of machine parameters, ideal for facilities where operators need oversight from different locations.
• Coil Car Tippers: Aids in loading coils onto the machine safely and efficiently, especially beneficial for handling heavy coils.
• Uncoilers and Recoilers: Manage coils effectively, preventing material mishaps and improving production flow.
• Automatic Stackers: Fully automate the stacking process, organizing products efficiently, saving labor, and reducing handling time.
• Leveling System: Ensures the raw material is flat before entering the machine, minimizing defects and improving the final profile quality.
• Coil Handling Systems: Offers comprehensive coil management, ensuring smooth, uninterrupted material feed into the machine.

5. Machine Pricing (Low to High)

Pricing for the Jamb Trim Roll Forming Machine varies depending on configuration:

• Basic Models: Start around $50,000, providing essential features and basic automation suitable for smaller operations.
• Mid-Range Models: Around $75,000–$100,000, offering enhanced features like servo motors and hydraulic cutting.
• High-End Models: Starting from $120,000+, including complete automation, advanced PLC systems, and optional extras such as stackers and remote PLC systems.

6. Setup and Installation

Setting up the Jamb Trim Roll Forming Machine is a straightforward process, but it requires experienced technicians for optimal performance:

1. Preparation: Ensure a stable, level floor to support the machine’s weight and minimize vibrations.
2. Power and Connections: Connect the power supply, usually 3-phase, and ensure proper grounding to prevent electrical issues.
3. Coil Loading: Set up the uncoiler, load the coil, and align it with the machine for an even feed.
4. Calibration: Program desired profiles and adjust machine settings using the PLC system.
5. Test Runs: Run initial tests to check for accuracy and make necessary adjustments.
6. Operator Training: Train operators on safety protocols, control panel operation, and troubleshooting basics.

7. Maintenance Requirements

To maintain peak performance, regular maintenance is recommended:

• Daily Checks: Inspect rollers, punching and notching tools, and other critical parts for wear.
• Lubrication: Regularly lubricate moving parts as recommended by the manufacturer to prevent friction and wear.
• Monthly Inspections: Verify motor and hydraulic system conditions, and replace any worn or damaged components.
• Annual Servicing: A full inspection by a certified technician to assess any deep maintenance needs or repairs.

8. Q&A Section

Q: What materials are compatible with this machine?
A: Common materials include galvanized steel and aluminum, but other metals can be used depending on the model and customer requirements.

Q: What’s the expected lifespan of the rollers?
A: With regular maintenance, rollers can last several years, even with heavy usage.

Q: Can the machine be customized for different profile sizes?
A: Yes, most models offer adjustable settings to accommodate different widths, heights, and gauges.

Q: How long does it take to install and start up?
A: Typically, setup and installation take 2-3 days, with an additional day for operator training and test runs.

Q: What is the warranty period?
A: Warranty periods vary but generally cover up to one year for parts and labor, with extended warranties available.

This guide covers all aspects of the Jamb Trim Roll Forming Machine, from its technical specifications to practical uses and maintenance needs. By understanding these elements, buyers can make informed decisions to get the most out of their investment, ensuring reliable, high-quality production for years to come.
