Ag panel roll forming machines are vital for industries that require durable metal panels, particularly in the agricultural, construction, and industrial sectors. These machines produce corrugated metal panels ideal for roofing and siding applications, providing a reliable, weather-resistant solution for a variety of structures. This guide explores everything you need to know about Ag panel roll forming machines, from specifications and setup to maintenance and frequently asked questions.

1. Machine Description

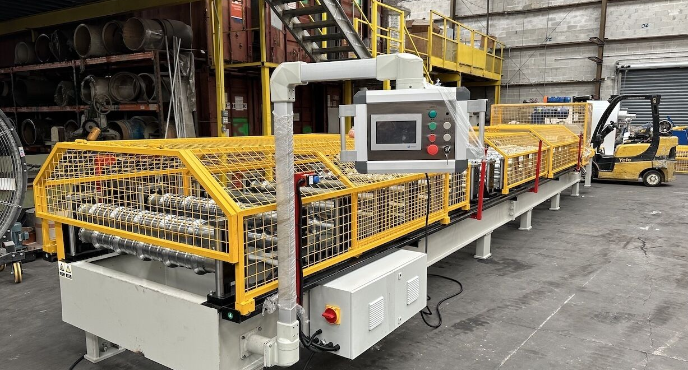

An Ag panel roll forming machine is a sophisticated piece of equipment designed to produce metal panels efficiently and consistently. The machine works by feeding metal coils through a series of precisely aligned rollers that shape the metal into the desired profile. As the metal progresses through the machine, each roller applies a specific amount of pressure to shape the metal gradually, ensuring durability and consistency.

Typically, these machines are automated using a PLC (Programmable Logic Controller) system, which allows for easy adjustments, precise control, and high-speed production. The hydraulic cutting system ensures clean, accurate cuts at the end of the roll-forming line, producing panels with smooth edges ready for installation.

2. Machine Specifications

• Roller Materials: Rollers are often made from high-quality steel or alloy to withstand constant pressure and prevent wear, ensuring longevity and consistent panel quality.
• Punching and Notching: Many Ag panel roll forming machines come with optional punching and notching capabilities. These features allow users to create openings or other customizations in the panels, catering to specific design or functionality requirements.
• Servo Motors: Servo motors offer precise control, allowing the machine to operate at high speed without compromising accuracy. This is particularly beneficial for complex or custom profiles.
• Hydraulic Cutting System: The hydraulic cutting system allows for fast and efficient cuts, ensuring each panel is identical. This system also provides smooth edges, which reduces the need for further finishing.
• Frame Size: Ag panel roll forming machines generally come with sturdy frames designed to withstand industrial usage. Frame size varies but typically allows for stability and minimal vibration.
• Motors and PLC System: These machines are powered by heavy-duty motors and are equipped with a PLC system for automation. The PLC system enables users to adjust parameters like speed, length, and profile with ease.
• Machine Speed: Standard production speeds range from 10 to 40 meters per minute, depending on machine settings and model specifications.
• Safety Guards and Enclosures: Safety features are essential in these machines. Guards and enclosures around critical moving parts protect operators from accidental contact, complying with safety regulations and standards.

3. Profile Description

• Materials, Sizes, and Material Gauge: Ag panels are typically produced from metals like galvanized steel and aluminum, known for their durability and resistance to weathering. Common gauges range from 26 to 29, with 29-gauge panels being lightweight and cost-effective, while thicker 26-gauge panels provide additional strength.
• Market Size for the Profile: The demand for Ag panels is consistently high, especially in the agricultural and industrial sectors. Farms, warehouses, barns, and industrial buildings often require these durable panels for roofing and siding.
• Industries Using this Profile: Agriculture, construction, and industrial storage are the primary sectors using Ag panels. The versatility of these panels makes them suitable for numerous applications, from weatherproofing to structural reinforcement.
• Popular Countries for Ag Panel Roll Forming Machines and Reasons: The U.S., Canada, Australia, and several European countries have a high demand for Ag panel machines. This popularity is largely due to the extensive use of metal structures in these regions, where weather durability and cost-effectiveness are prioritized.

4. Optional Extras

Ag panel roll forming machines can be customized with various optional extras, such as:

• Stackers: Automatically stack finished panels, saving time and labor costs.
• Remote PLC Systems: These allow operators to monitor and control the machine remotely, enhancing convenience.
• Coil Car Tippers: Simplify the loading of heavy metal coils into the machine, improving efficiency and reducing manual labor.
• Uncoilers and Recoilers: Uncoil and manage material feeding while recoiling finished products, streamlining production.
• Automatic Stackers and Leveling Systems: Add automation to stacking and leveling processes for increased productivity.
• Coil Handling Systems: Enhance coil management, allowing for easy and efficient handling of raw materials.

5. Machine Pricing

The price range of Ag panel roll forming machines varies based on features, automation level, and quality of materials. Here’s a general breakdown:

• Entry-Level Machines: $30,000 - $50,000
  • Suitable for smaller operations with basic features.
• Mid-Range Machines: $50,000 - $100,000
  • Includes advanced features like PLC systems, hydraulic cutting, and moderate automation.
• High-End Machines: $100,000 and above
  • These machines are fully automated with top-tier components, suitable for high-volume production.

6. Setup and Installation

Setting up an Ag panel roll forming machine involves several steps:

1. Positioning: Place the machine in a spacious area with adequate room for coil feeding and panel output.
2. Power Connection: Connect the machine to a reliable power source suitable for its voltage and current requirements.
3. Hydraulic and Air Systems: If the machine includes hydraulic and air components, ensure these systems are properly installed and pressurized.
4. Calibration: Calibrate rollers and cutting systems to match the desired panel specifications.
5. PLC System Configuration: Configure the PLC system to set parameters like panel length, profile type, and production speed.

Professional installation is recommended to ensure optimal performance.

7. Maintenance

Regular maintenance keeps the machine in top condition:

• Lubrication: Apply lubrication to moving parts and rollers as recommended by the manufacturer.
• Calibration Checks: Periodically check and recalibrate rollers and cutting systems to maintain accuracy.
• Cleaning: Keep the machine clean and free of dust or debris that could interfere with operation.
• Inspection: Conduct routine inspections of electrical and hydraulic systems to prevent unexpected downtime.

8. Questions and Answers

Q: What is the expected lifespan of an Ag panel roll forming machine?
A: With regular maintenance, these machines can last up to 15–20 years, depending on usage and care.

Q: Can the machine produce custom panel dimensions?
A: Yes, most Ag panel machines can be adjusted to produce different lengths, and with the right setup, they can handle custom profiles.

Q: What power requirements should I consider?
A: Power requirements depend on the machine's model and motor capacity. Many machines require a three-phase power source for optimal operation.

Q: Are training and support available for operators?
A: Most suppliers offer training and technical support to help operators understand setup, maintenance, and troubleshooting.

Conclusion

Ag panel roll forming machines offer a cost-effective, reliable solution for industries needing durable metal panels. Whether you're looking for an entry-level machine or a high-end model with full automation, understanding the specifications, setup, and maintenance needs can help you make the best investment for your operation. With a range of optional extras and customizable profiles, these machines can cater to various industrial and agricultural needs.
