The Ultimate Guide to PBR Roofing Roll Forming Machines

This comprehensive guide explores every aspect of the PBR roofing roll forming machine, from machine specifications to maintenance

PBR (Purlin Bearing Rib) roofing profiles are essential in modern construction for their durability, cost-efficiency, and versatility. A PBR Roofing Roll Forming Machine is designed to efficiently manufacture these profiles, meeting the needs of industries worldwide. This comprehensive guide explores every aspect of the PBR roofing roll forming machine, from machine specifications to maintenance, ensuring you make an informed decision.

Machine Description

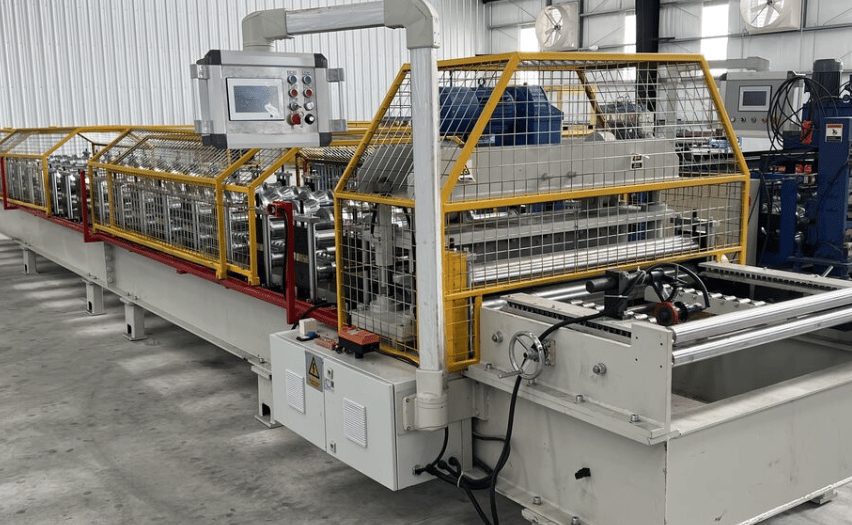

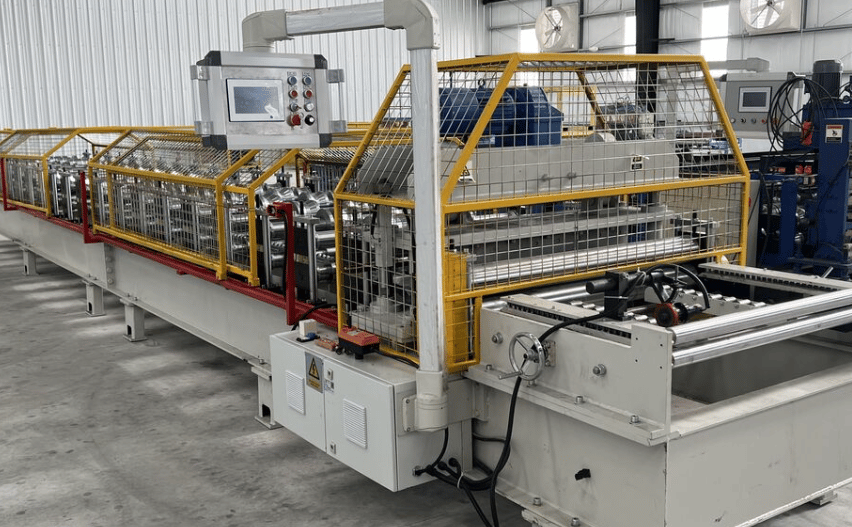

A PBR roofing roll forming machine is a specialized piece of equipment designed to produce Purlin Bearing Rib profiles for roofing applications. These machines are engineered for precision, high-speed production, and durability, making them ideal for large-scale manufacturing.

Machine Specifications

  1. Roller Materials
    • High-grade steel or chromium-coated rollers for durability and precision.
    • Heat-treated rollers to withstand heavy workloads and ensure long-lasting performance.
  2. Punching and Notching
    • Hydraulic or servo-controlled systems for precise punching and notching.
    • Adjustable configurations for varying profile requirements.
  3. Servo Motors
    • High-efficiency servo motors ensure smooth and accurate operation.
    • Energy-efficient designs reduce operational costs.
  4. Hydraulic Cutting Systems
    • High-speed hydraulic cutting for precise and clean cuts.
    • Minimal material wastage and high repeatability.
  5. Frame Size
    • Heavy-duty frame for machine stability.
    • Standard sizes range from 300mm to 600mm in height, ensuring rigidity during high-speed operations.
  6. Motors and PLC System
    • Robust motor systems for consistent performance.
    • Advanced PLC (Programmable Logic Controller) systems with user-friendly interfaces for ease of operation and automation.
  7. Machine Speed
    • Speeds range from 10m/min to 40m/min depending on the model.
    • High-speed models for large production volumes.
  8. Safety Guards and Enclosures
    • Protective covers over moving parts to ensure operator safety.
    • Compliance with international safety standards.

Profile Description

  1. Materials
    • Compatible with steel, aluminum, and galvanized sheets.
    • Material thickness: 0.3mm to 0.8mm.
  2. Sizes
    • Width: Typically ranges between 600mm and 1200mm.
    • Rib height: Adjustable for custom applications.
  3. Material Gauge
    • Common gauges: 20 to 29 gauge depending on the project requirements.
  4. Market Size
    • Growing demand in residential, commercial, and industrial roofing sectors.
  5. Industries Using This Profile
    • Construction
    • Warehousing
    • Agricultural buildings
    • Industrial facilities
  6. Popular Countries and Reasons
    • United States: High demand for durable and weather-resistant roofing.
    • Australia: Preference for metal roofing in agricultural and industrial sectors.
    • India: Cost-effective roofing solutions for residential and commercial buildings.

Optional Extras

  1. Stackers
    • Automated systems for stacking finished profiles.
  2. Remote PLC Systems
    • For remote monitoring and control of the machine.
  3. Coil Car Tippers
    • Eases the loading of heavy coils.
  4. Uncoilers and Recoilers
    • Ensures smooth feeding of raw materials into the machine.
  5. Automatic Stackers
    • Fully automated stacking to improve production efficiency.
  6. Leveling Systems
    • For ensuring flat and even material feeding.
  7. Coil Handling Systems
    • Enhance material handling and reduce operator workload.

Machine Pricing

  • Low-End Models: Basic machines start at $30,000.
  • Mid-Range Models: Enhanced features and better speeds, priced between $50,000 and $80,000.
  • High-End Models: Fully automated systems with premium build quality, costing $100,000 or more.

Setup and Installation

  1. Setup
    • Requires a stable and level floor surface.
    • Adequate power supply based on machine specifications.
  2. Installation
    • Performed by trained technicians.
    • Includes calibration and testing to ensure optimal performance.

Maintenance

  1. Daily Maintenance
    • Check for debris and clean the rollers.
    • Inspect hydraulic systems for leaks.
  2. Monthly Maintenance
    • Lubricate moving parts.
    • Tighten bolts and check for wear and tear.
  3. Annual Maintenance
    • Overhaul the PLC system and update software if necessary.
    • Replace worn-out rollers and components.

Questions and Answers

  1. What is the average production speed of a PBR roofing roll forming machine?
    • Speeds range from 10m/min to 40m/min depending on the model.
  2. Can this machine handle different material thicknesses?
    • Yes, it can process thicknesses ranging from 0.3mm to 0.8mm.
  3. What industries are best suited for PBR profiles?
    • Construction, warehousing, agriculture, and industrial facilities.
  4. Are training and support provided for new machines?
    • Most manufacturers offer training during installation and ongoing technical support.
  5. How long does it take to install the machine?
    • Installation typically takes 2-3 days depending on the complexity.

This guide ensures you have all the necessary information to make an informed decision about purchasing a PBR roofing roll forming machine. Whether you are looking for a basic model or a high-end system, understanding these details will help maximize your investment.
