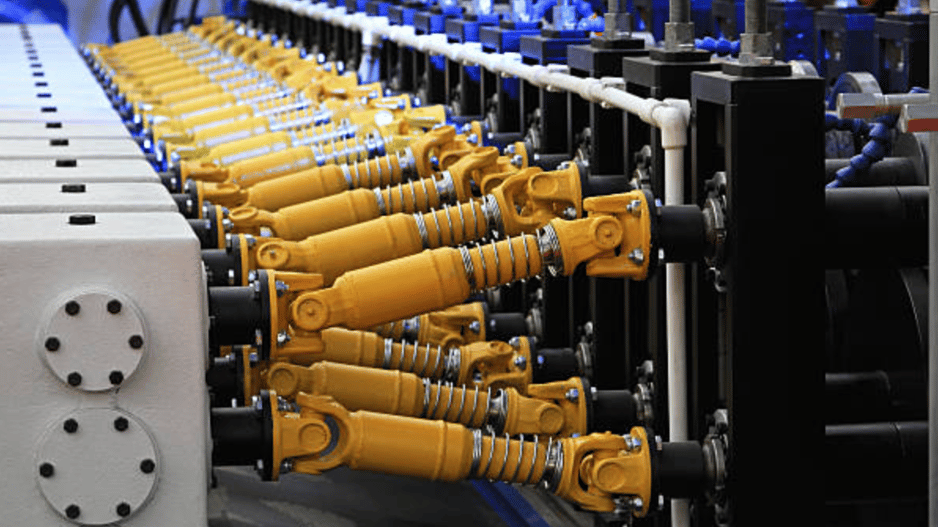

How to maintain gearbox drive on a roll forming machine
Here's a comprehensive guide to maintaining the gearbox drive:
Maintaining the gearbox drive on a roll forming machine is crucial for ensuring efficient operation, prolonging the lifespan of the equipment, and preventing costly downtime.
1. Regular Inspection
- Visual Check: Inspect the gearbox housing for any visible cracks, oil leaks, or damage.
- Noise and Vibration: Monitor for unusual noise or vibrations during operation, which can indicate wear or misalignment.
- Temperature: Check if the gearbox operates within the recommended temperature range.
2. Lubrication Maintenance
- Oil Levels: Regularly check and maintain the appropriate oil level using the sight glass or dipstick.
- Oil Quality: Ensure the lubricant is clean and free from contaminants. Replace if it appears dark, gritty, or has a burnt smell.
- Oil Changes: Follow the manufacturer's guidelines for oil change intervals, typically every 6–12 months depending on usage and operating conditions.
- Recommended Oil Type: Use the gearbox manufacturer’s specified oil type for optimal performance.
3. Alignment Check
- Coupling Alignment: Misaligned couplings between the motor and gearbox can cause uneven wear and vibration. Use precision tools like laser alignment devices to check and adjust.
- Roll Shaft Alignment: Ensure the gearbox properly aligns with the roll shafts to avoid stress on components.
4. Fastener and Seal Inspection
- Fasteners: Periodically tighten all bolts and screws to prevent loosening due to vibration.
- Seals: Check oil seals for leaks or wear and replace them if necessary to prevent contamination.
5. Load Monitoring
- Avoid overloading the gearbox by staying within the machine's operational limits.
- Use torque limiters or overload protection devices if available.
6. Cleaning and Ventilation
- Keep the gearbox clean from dust and debris to prevent overheating.
- Ensure the vents and cooling fans are free of blockages to maintain proper heat dissipation.
7. Periodic Component Checks
- Gears and Bearings: Inspect for wear, pitting, or cracks. Replace components showing significant signs of wear.
- Shafts and Keys: Check for wear or damage that might affect operation.
8. Monitoring and Diagnostics
- Implement predictive maintenance tools such as vibration analysis or thermal imaging to detect early signs of wear or failure.
- Use condition-monitoring sensors for real-time data on gearbox performance.
9. Training and Documentation
- Train operators and maintenance staff on proper handling and maintenance of the gearbox.
- Keep a detailed maintenance log for tracking inspection, service intervals, and repairs.
10. Scheduled Professional Servicing
- Have the gearbox professionally inspected and serviced annually or as recommended by the manufacturer.
Tips for Extending Gearbox Lifespan
- Use genuine spare parts for replacements.
- Operate the roll forming machine within its designed parameters.
- Protect the gearbox from sudden shocks or jerks during operation.
Proper and consistent maintenance ensures the gearbox remains reliable and efficient, minimizing the risk of unexpected breakdowns and extending the overall lifespan of your roll forming machine.
