Comprehensive Guide to the Type A Roof Deck roll forming machine

Type A Roof Deck roll forming machines are highly specialized equipment designed to produce high-quality Type A roof decking profiles efficiently and consistently. These machines play a critical role in the construction industry, particularly in large-scale roofing and flooring projects. In this guide, we will explore the machine's features, specifications, applications, pricing, and maintenance, along with how Machine Matcher can assist you in finding the best roll forming machine suited to your profile needs.

Machine Description

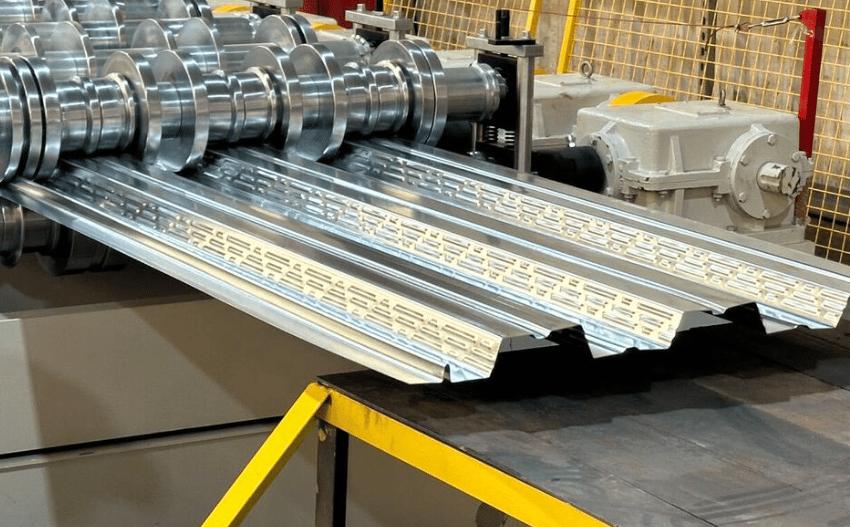

A Type A Roof Deck roll forming machine is engineered to produce 1.5-inch deep roof deck profiles used extensively in low-slope roof systems. The machine forms structural steel sheets into corrugated profiles that provide durability, strength, and load distribution. It uses advanced technology to ensure precision, high speed, and minimal material waste during the forming process.

Type A Roof Deck, also known as "narrow rib deck," is commonly used where low loads and minimal diaphragm shear are required. This profile is ideal for applications where insulation or lightweight concrete is added above the deck.

Machine Specifications

Here’s an overview of the detailed specifications of a Type A Roof Deck roll forming machine:

1. Roller Materials

• Material: High-quality GCr15 steel or D2 tool steel.

• Hardness: Hardened to HRC 58-62 for prolonged life and minimal wear.

• Coating: Chrome-plated rollers to prevent rust and extend service life.

2. Punching and Notching Systems

• Punching: Servo-driven punching system with high precision.

• Notching: Hydraulic notching with programmable punching patterns.

• Die Material: SKD11 steel with heat treatment for longer durability.

3. Servo Motors

• Type: AC servo motors for high-speed, accurate feeding and cutting.

• Brand Options: Siemens, Yaskawa, or Mitsubishi (based on customer requirements).

• Power: 5 kW to 10 kW depending on line speed.

4. Hydraulic Cutting Systems

• Cutting Type: Post-cut with hydraulic shear system.

• Blade Material: High-grade Cr12Mov steel for clean and precise cuts.

• Cutting Tolerance: ±1.0 mm

5. Frame Size

• Frame Type: Heavy-duty steel frame, welded and stress-relieved.

• Thickness: 20 mm to 30 mm side panels for maximum stability.

• Construction: Robust design for vibration-free operations.

6. Motors and PLC System

• Main Motor: 15 kW to 30 kW depending on machine size and capacity.

• PLC System: Siemens or Delta PLC with touchscreen HMI.

• Control Panel: User-friendly interface with multilingual support.

• Operating Mode: Manual, semi-automatic, and fully automatic modes.

7. Machine Speed

• Production Speed: 10-15 meters per minute.

• Speed Control: Variable frequency drive (VFD) for precision.

8. Safety Guards and Enclosures

• Safety Features: Full safety guards with emergency stop buttons.

• Enclosures: Noise-reducing covers for operator safety and compliance with industry regulations.

Profile Description

1. Materials Used

• Steel Thickness: 0.7 mm to 1.5 mm.

• Material Options: Galvanized steel (G550), aluminum, and stainless steel.

2. Sizes and Dimensions

• Profile Depth: 1.5 inches (38.1 mm).

• Flange Width: Typically 2.5 inches (63.5 mm).

• Rib Pitch: 6 inches (152.4 mm).

3. Material Gauge

• Common Gauges: 18 to 22 gauge steel.

• Thickness Range: 0.7 mm to 1.5 mm.

4. Market Size and Industries Using Type A Roof Deck Profiles

• Market Demand: High in the commercial and industrial construction sectors.

• Industries:

  • Commercial building projects

  • Industrial facilities

  • Warehouses and storage buildings

  • Multi-level parking structures

Popular Countries and Industries

1. Countries Where Type A Roof Deck Machines Are Popular

• USA: Widely used in commercial and industrial buildings.

• Canada: High demand in construction and renovation projects.

• UK and Europe: Growing use in steel-framed structures.

• Middle East: Used extensively in high-rise buildings and large-span structures.

2. Industries Using This Profile

• Construction: Roofing and flooring applications.

• Infrastructure Projects: Large-span building roofs.

• Warehouses and Manufacturing Facilities: Structural support and strength.

Optional Extras and Customization

To enhance the efficiency and automation of Type A Roof Deck roll forming machines, the following optional extras can be added:

1. Stackers

• Automatic stackers for precise collection and stacking of finished profiles.

2. Remote PLC Systems

• Wireless or remote monitoring and control of the machine from off-site locations.

3. Coil Car Tippers

• Efficient loading and positioning of heavy coils.

4. Uncoilers and Recoilers

• Single or double-head uncoilers for continuous production.

• Recoilers for re-winding finished coils.

5. Automatic Stackers

• High-speed stackers to automate profile stacking and minimize labor.

6. Leveling System

• Automatic leveling to ensure flatness and accuracy.

7. Coil Handling Systems

• Coil cars and hydraulic lifting for smooth coil transfer.

Machine Price Range

1. Entry-Level Machines

• Price Range: $50,000 - $80,000

• Speed: 8-10 meters per minute.

• Automation: Basic control system.

2. Mid-Range Machines

• Price Range: $80,000 - $150,000

• Speed: 10-12 meters per minute.

• Extras: Partial automation and enhanced safety features.

3. High-End Machines

• Price Range: $150,000 - $250,000

• Speed: 12-15 meters per minute.

• Extras: Full automation with remote PLC and advanced coil handling systems.

How Machine Matcher Can Help You

Machine Matcher specializes in connecting buyers with high-quality roll forming machines, ensuring that you get the machine best suited to your profile requirements. Our experts work closely with clients to assess production needs, recommend the best models, and facilitate smooth purchasing and delivery.

We provide:

• Personalized Consultation: Understanding your requirements and suggesting the best machine.

• Access to Multiple Manufacturers: Comparing features, prices, and delivery options.

• Post-Sale Support: Ensuring smooth setup, commissioning, and maintenance.

• Inspection and Quality Assurance: Verifying that the machine meets global standards.

Setup and Installation Process

1. Site Preparation

• Ensure a level foundation and adequate space for installation.

• Verify power supply meets the machine’s requirements.

2. Machine Assembly

• Mount the main frame and align the rollers.

• Install the hydraulic cutting and punching systems.

3. Electrical Connections

• Connect the PLC, motors, and control panel.

• Test the servo system and safety mechanisms.

4. Trial and Calibration

• Run test profiles to calibrate settings.

• Fine-tune speed and cutting precision.

Maintenance Requirements

1. Daily Checks

• Inspect roller alignment and cleanliness.

• Check lubrication systems and hydraulic fluid levels.

2. Weekly Inspections

• Check for loose bolts and fasteners.

• Ensure PLC system and safety features are functioning correctly.

3. Monthly Maintenance

• Lubricate all moving parts.

• Clean and inspect hydraulic cutting blades.

• Test emergency stop and safety systems.

4. Annual Overhaul

• Inspect and replace worn rollers.

• Service hydraulic and servo systems.

• Calibrate sensors and control systems.

Questions and Answers (Q&A)

Q: How long does it take to set up a Type A Roof Deck roll forming machine?
A: It typically takes 3-5 days for complete setup and calibration, depending on the machine’s complexity and optional extras.

Q: What is the lifespan of a Type A Roof Deck roll forming machine?
A: With regular maintenance, these machines can last 15-20 years.

Q: Can the machine handle different profile gauges?
A: Yes, the machine can process 18 to 22 gauge steel, depending on the roller and cutting system specifications.

Q: Is operator training required?
A: Yes, basic operator training is recommended to ensure smooth operation and troubleshooting.
