Pbr eave flashing machine

The PBR eave flashing roll forming machine is a vital piece of equipment for fabricators producing precision roof trim components for metal building systems. Known for its ability to create high-quality eave flashings consistently and efficiently, this machine is engineered for durability, precision, and high-volume production. Whether you’re running a large manufacturing line or a specialized fabrication shop, a PBR eave flashing roll forming machine can elevate your operations.

In this detailed guide, we’ll explore the machine’s complete specifications, the eave flashing profile it produces, popular industries and countries using this equipment, available upgrades and extras, pricing insights, setup and installation details, maintenance, and how Machine Matcher can support your purchase process.

Machine Description

The PBR eave flashing roll forming machine is designed to shape steel and aluminum coils into precise eave flashing components used in roofing and cladding systems. The machine typically operates in a continuous production setup, minimizing material waste and ensuring consistency across long production runs.

Engineered for speed and repeatability, this machine offers programmable controls, durable roller stations, and a range of auxiliary systems for automation. It is a preferred solution for manufacturers supplying components to agricultural, industrial, and commercial steel building projects.

Machine Specifications

Roller Materials

• Material: Chromium-coated GCr15 steel or hardened 45# steel

• Hardness: HRC 58–62

• Life Expectancy: Long-lasting with minimal wear, suitable for galvanized and pre-painted materials

Punching and Notching

• Punching Options: Optional hydraulic punching station before forming

• Notching: Custom inline notching available for drainage or joining features

• Controls: Integrated into the PLC system for timing precision

Servo Motors

• Type: High-precision servo motors for length and cutting accuracy

• Brands: Siemens, Yaskawa, or Delta depending on configuration

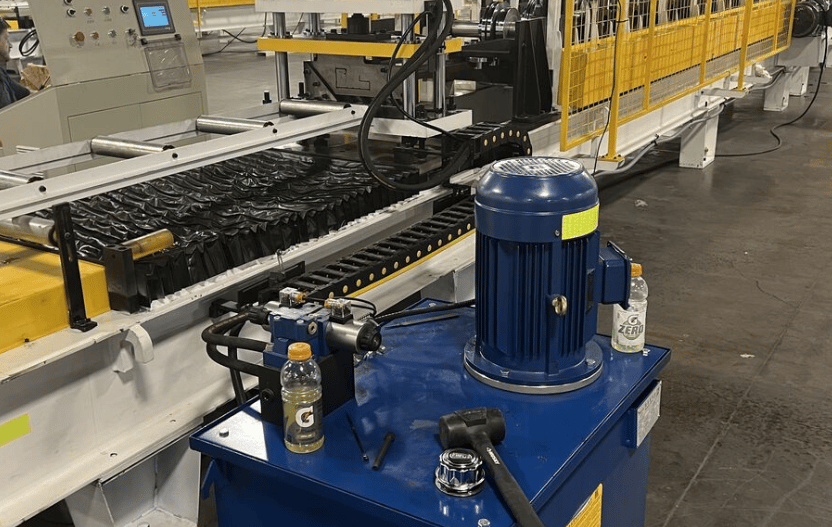

Hydraulic Cutting Systems

• Cutter Type: Post-cut or pre-cut shear system

• Blades: Cr12 or SKD11 high-strength steel

• Hydraulic Power Pack: Adjustable pressure, 5.5kW–11kW range

Frame Size and Structure

• Frame Type: Heavy-duty steel frame, H-beam welded base

• Thickness: 16–20 mm thick sidewalls

• Coated Finish: Industrial-grade paint for rust protection

Motors

• Main Drive Motor: 5.5kW to 15kW depending on line speed

• Transmission: Gearbox or chain drive

PLC System

• System Type: Fully programmable HMI touch screen

• Brands: Siemens, Delta, Mitsubishi

• Features: Length setting, batch control, fault detection, data storage

Machine Speed

• Standard Speed: 10–15 meters per minute

• High-Speed Option: Up to 30 meters per minute with upgraded motors

Safety Guards and Enclosures

• Guards: Transparent polycarbonate or steel mesh

• Emergency Stops: Installed at multiple locations

• Compliance: Meets CE, UL, or country-specific safety requirements

Profile Description – PBR Eave Flashing

Materials

• Galvanized steel

• Pre-painted steel

• Aluminum

• Galvalume

Sizes and Dimensions

• Custom widths between 8–14 inches (203–355 mm)

• Leg heights: 1–2 inches

• Hemmed or non-hemmed edges

• Bend angles: 90° to 130°, based on roofing geometry

Material Gauge

• 24–28 gauge (0.4 mm to 0.7 mm)

Market Size and Usage

PBR eave flashing is widely used in pre-engineered steel buildings, metal barns, sheds, storage facilities, and agricultural buildings. As part of the PBR panel roofing system, this trim helps protect the edges of the roof and provide a clean aesthetic finish.

Industries

• Steel building manufacturers

• Roofing system suppliers

• Agricultural storage construction

• Commercial and industrial metal buildings

Popular Countries and Industries

• USA: High demand in agricultural and warehouse construction

• Canada: Used in cold climates for weather-resistant installations

• Australia: Common in outback rural building projects

• Mexico & Latin America: Fast-growing prefab building markets

• Gulf Countries: Popular for industrial and logistics warehouses

The machine’s versatility and profile customization make it a global solution for roofing contractors and steel fabricators.

Optional Extras and Upgrades

To maximize productivity and automation, the following systems can be added:

• Stackers: Automatic or manual stackers to collect finished flashings

• Remote PLC Systems: For diagnostics, programming, or control via internet

• Coil Car Tippers: Hydraulic or mechanical systems to load coils safely

• Uncoilers and Recoilers: Hydraulic uncoilers for coils up to 5 tons

• Automatic Stackers: Fully automatic inline stacking units

• Leveling Systems: Optional leveling machine before forming for coil correction

• Coil Handling Systems: Cranes, coil cars, and guides for smooth transitions

Machine Pricing: From Low to High

• Entry-Level Machines: $18,000 – $28,000

  • Manual decoiler, basic PLC, low speed

• Mid-Range Machines: $30,000 – $45,000

  • Hydraulic cutting, servo drive, auto stacker options

• High-End Machines: $50,000 – $75,000+

  • Full automation, punching, remote control, high speed production

Pricing depends on configuration, speed, brand of components, and optional features. For a precise quote, sharing your profile drawing, gauge, and volume requirements is essential.

How Machine Matcher Can Help

Machine Matcher helps businesses worldwide source the right roll forming equipment with confidence. Whether you’re buying new or used, we match your exact requirements to machines available in our global inventory.

Our Services Include:

• Expert consultation to define your machine needs

• Matching you with verified machines that meet your specs

• Support with profile confirmation, power supply, shipping, and customs

• Inspection and video testing of machines before shipping

• Support across over 170 countries

Setup and Installation

Setting up a PBR eave flashing machine involves:

1. Site Preparation: A flat, level surface with adequate power supply

2. Positioning the Machine: Proper alignment to avoid twist or deformation

3. Connecting Power and Hydraulic Systems

4. Trial Runs with Your Coil Material

5. Profile Adjustment: Confirming bend angles and leg sizes

6. Operator Training: On using PLC and basic troubleshooting

We recommend professional installation for optimal performance and to avoid issues from incorrect leveling or misaligned rollers.

Maintenance Requirements

• Daily Checks: Remove debris, check oil levels, inspect rollers

• Weekly: Lubricate bearings and moving parts

• Monthly: Inspect hydraulic system and electrical wiring

• Annually: Full inspection, alignment checks, software updates if applicable

Preventive maintenance reduces wear and helps you avoid costly downtime.

Frequently Asked Questions

Q: Can the same machine make other flashing types?
A: With adjustable tooling or modular stations, yes. Otherwise, a new set of rollers is required.

Q: How long does it take to change profile sizes?
A: For fixed profile machines, switching takes several hours and requires new tooling. For adjustable systems, it can be done in minutes.

Q: What’s the typical delivery time for this machine?
A: For ready stock machines: 2–4 weeks. For customized orders: 6–12 weeks depending on complexity.

Q: What power supply do I need?
A: Most machines run on 380V / 50Hz / 3-phase, but configurations for 220V or 440V are available.

Q: Can I see the machine before buying?
A: Yes. Machine Matcher can arrange live video inspections and tests before shipment.
