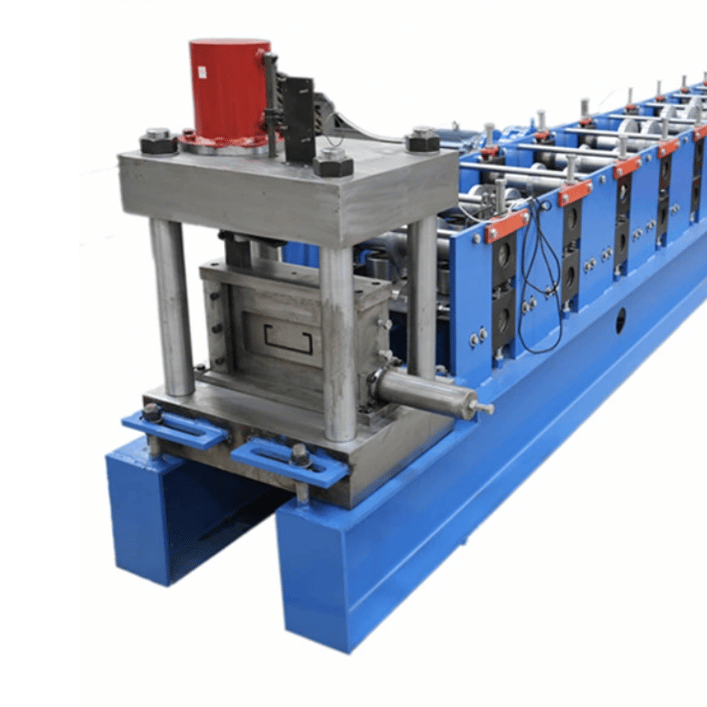

100-350mm Automatic C Purlin Roll Forming Machine in Rwanda

This is a new product line to produce C-purlin with pre-punching and post cutting, the panel have a wonderful aspect, punching holes are available as your particular requirement. C-purlin line can manufacture several types, such as C80 C100 C120 C140 C150 C160 C180 C200 C250 etc, the panel has high intension, reasonable design and easily installation, also have a strong economy benefit.

Un-coier, pre-leveling device, pre-punching, roll forming machine, post cutting device, PLC control system, Product rack.

2 Main motor power4kw, 3 phase

3 Hydraulic motor power3kw

4 Hydraulic Pressure10-12MPa

5 Voltage380V /3phase/ 50 HZ (or as your requirement)

6 Control SystemPLC Delta Inverter

7 Main Frame300mm H-Beam or 350mm

8 Backboard Thickness14mm

9 Chain Size20mm

10 Feeding Materialcolor steel coils

11 Feeding Thickness0.25-0.4mm

12 Feeding Width 500mm

13 Effective width 312mm

14 Productivity8-12m/min

15 Roll Station14 roll steps(according to different design)

16 Roller Diameter70mm(depend on different design)

17 Roller material 45# steel

18 Cutter materialCr12 , quenched

19 Cr-Plating Size0.05mm

20 Overall Size7500×1400×1500mm

21 Total Weight4.0T

The 100-350mm Automatic C Purlin Roll Forming Machine is designed for high-efficiency production of C purlins, which are essential components in construction and structural applications. Here are some key features and specifications of this machine:

Key Features

1. Automatic Operation: This machine features an automated control system that allows for precise and efficient production with minimal manual intervention, enhancing productivity and reducing labor costs.
2. Adjustable Width: Capable of producing C purlins with a width range of 100mm to 350mm, this machine can accommodate various project requirements, providing flexibility for different construction needs.
3. High-Speed Production: Designed for rapid roll forming, it can produce high volumes of C purlins in a shorter time, making it ideal for large-scale construction projects.
4. Robust Construction: Built with high-quality materials, the machine ensures durability and reliability, even in demanding working conditions.
5. User-Friendly Interface: Equipped with a simple control panel, operators can easily set parameters and monitor the production process.
6. Customization Options: The machine can be tailored to produce specific profiles and dimensions based on customer specifications, allowing for greater versatility in applications.

Technical Specifications

• Feeding Material: Typically uses galvanized or cold-rolled steel sheets.
• Thickness Range: Supports various thicknesses, usually from 1.5mm to 3.0mm.
• Production Speed: Can achieve speeds of 15-25 meters per minute, depending on material thickness and complexity of the profile.
• Power Supply: Requires a specific voltage and phase (e.g., 380V, 50Hz) for operation.
• Dimensions: The machine’s overall size will vary based on design and additional components, but it's generally compact for easy integration into existing production lines.
• Weight: Varies depending on specifications and additional features but usually weighs several tons.

Applications

• Used in the construction of warehouses, factories, and commercial buildings.
• Ideal for framing, roofing systems, and structural support elements.

This roll forming machine not only improves production efficiency but also ensures the consistent quality of C purlins, making it a valuable asset for manufacturers in the construction industry.
