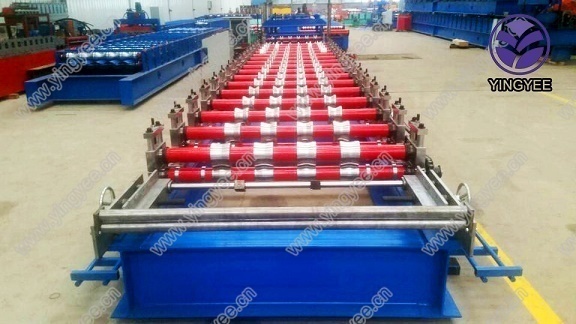

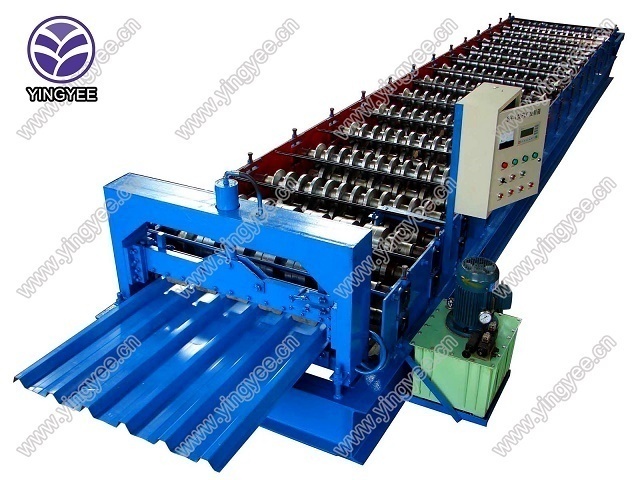

15m/min Trapezoid Roof Sheet Roll Forming Machine in China
Trapezoid roof sheet roll forming machine For making IBR roofing sheets forming machine. Simple operation, easy installation and easy maintenance.The solid roller and shaft have good quality and long service life. The delivery time: about 15 days it can be delivered, the regular type of the machine is in stock for a long time. A 40HQ container can loading in 3 sets small machines, saving freight.
| Material | 1. Thickness: 0.3--0.8mm 2. Input width: depend on drawing 3. Effective width:1000 mm 4. Material:PPGI |
| Power supply | 380V, 50Hz, 3 phase |
| Capacity of power | Main power:5.5kw |
| Speed | Forming speed: 15m/min |
| Total weight | Approx. 5Tons |
| Dimension | Approx.(L*W*H) 8000m*1800m*1750m |
| Stands of rollers | 26 rollers |
| Cut style | Hydraulic cut |
| 5 tons manual decoiler | 1: Max width of raw material :1250mm 2: Capacity: 5000kgs 3: Inner diameter of coil: 450-600mm |
