Automatic Trapezoidal Roofing Sheet Roll Forming Machine in China
- Control System:PLC
- Warranty:12 Months
- Thickness:0.3-1mm
- Using:Roof
- Type:Roof Sheet Roll Forming Machine
- Forming Speed:25-30m/min
- Voltage:38oV/3Phase/50Hz Or At Customer’s Request
- Material:GI, PPGI, Aluminum Coils
- Cutting Mode:Hydraulic
- Delivery:30 Days
IBR trapezoid Roof Sheet Roll Forming Machine
900mm IBR Corrugation Wave Metal Roof Sheet Roll Forming Machine, it is servo feeding to ensure the precision, hydraulic cutting, elegant appearance, fast speed
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |
| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |

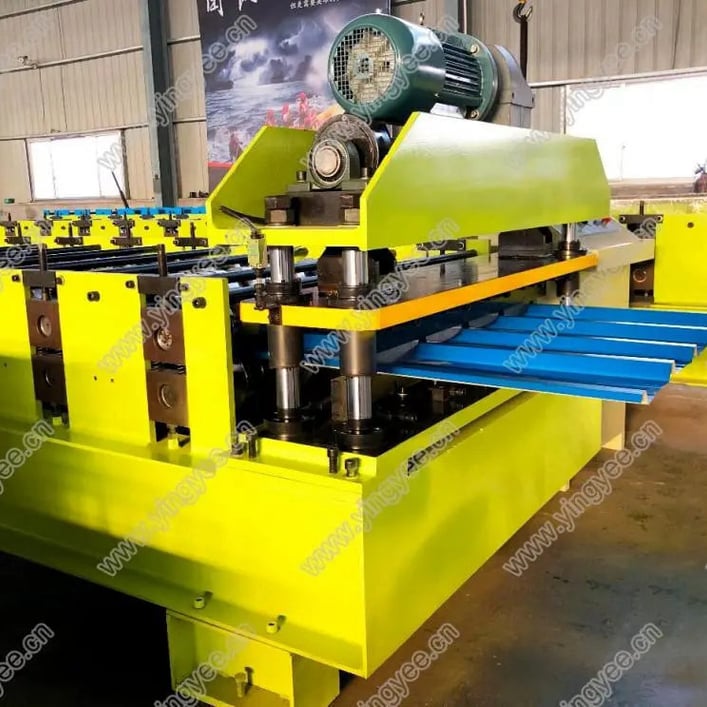

| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |
Request a quote
We’ll respond within one business day
Enquiring about Automatic Trapezoidal Roofing Sheet Roll Forming Machine in China
Prefer to talk?
Call us on +44 20 3355 6554 (UK) or +1 407 887 3237 (US) to speak directly with our sales engineers.
- Condition
- New
- Supplier
- Roll Forming Machines China
- Country
- China
- Category
- Trapezoidal Panel Machines
- Listing ID
- 14887
