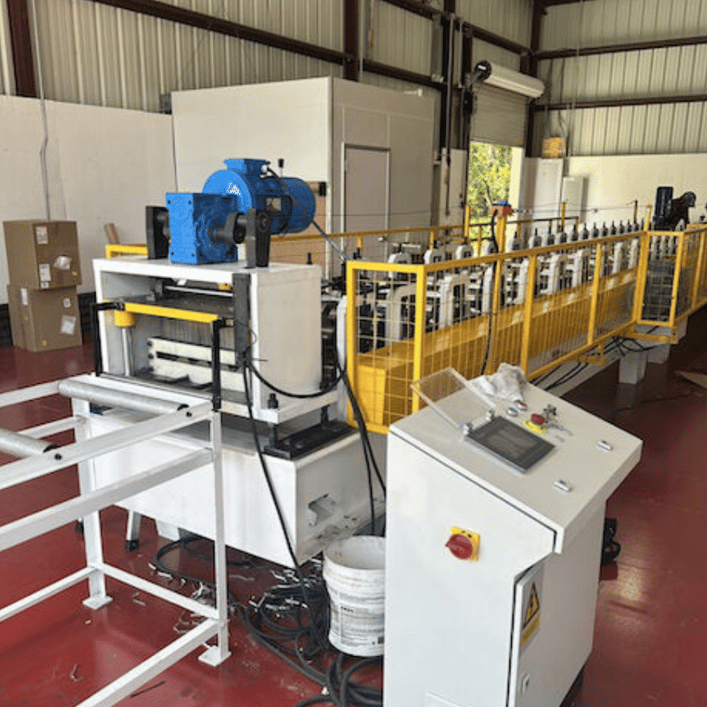

Board and Batten Metal Siding Roll Forming Machine USA

The Board and Batten Metal Siding Roll Forming Machine is a specialized industrial machine designed to produce high-quality board and batten metal siding panels efficiently. These panels are widely used in residential, commercial, and industrial applications for their timeless design, durability, and energy efficiency. The machine is tailored for the U.S. market, ensuring compatibility with local industry standards, power supplies, and customer demands.

This roll forming machine features a precise and automated process that transforms metal coils into accurately profiled siding panels. It offers high-speed production with minimal waste, making it an essential tool for siding manufacturers and contractors seeking efficiency and profitability.

Specifications

1. Roller Materials
   • Material: High-grade GCr15 steel, heat-treated for durability.
   • Coating: Hard chrome plating for extended life and corrosion resistance.
2. Frame Structure
   • Frame: Heavy-duty steel frame for stability and longevity.
   • Thickness: 16-20 mm reinforced sidewall panels.
3. Forming Stations
   • Number of Stations: 16-24 (depending on the profile and customization).
   • Roll Gap Adjustment: Manual or automatic (optional).
4. Motor System
   • Main Motor Power: 7.5-15 kW (depending on production speed and capacity).
   • Hydraulic Station Power: 4 kW for cutting and punching.
5. Cutting System
   • Type: Hydraulic cutting with post-cut design for precision.
   • Blade Material: Cr12Mov steel with high wear resistance.
6. Profile Specifications
   • Materials: Galvanized steel, aluminum, and pre-painted steel.
   • Thickness: 0.4 mm - 0.8 mm.
   • Width: Customizable based on requirements.
7. Control System
   • PLC System: Panasonic or Siemens with touchscreen HMI for user-friendly operation.
   • Features: Real-time monitoring, batch counting, and error detection.
8. Production Speed
   • Speed: 10-30 meters per minute (adjustable based on material and profile).
9. Safety Features
   • Safety Guards: Full enclosure for moving parts.
   • Emergency Stop: Strategically placed for operator safety.
10. Optional Add-Ons
    • Automated stackers for panel collection.
    • Decoilers with hydraulic expansion.
    • Coil car tippers for easy coil loading.
    • Remote PLC system for diagnostics and operation.

Features and Benefits

• High Precision: Ensures consistent panel quality with minimal deviations.
• Customizable Profiles: Adaptable to different board and batten panel dimensions and designs.
• Energy Efficient: Designed to reduce power consumption while maximizing output.
• Durable Construction: Built for long-term operation with minimal maintenance.
• Fast Production: Increases productivity for manufacturers meeting high demand.
• Ease of Use: Intuitive controls for seamless operation by operators with minimal training.

Question and Answer Section

Q1: What is the standard material thickness this machine can handle?

A1: The machine is designed to handle material thickness ranging from 0.4 mm to 0.8 mm, ideal for board and batten siding panels.

Q2: Can this machine produce customized board and batten profiles?

A2: Yes, the machine can be customized to produce specific dimensions and designs based on customer requirements.

Q3: What safety features are included?

A3: The machine includes full enclosures for moving parts, emergency stop buttons, and overload protection for operational safety.

Q4: Is it compatible with U.S. power standards?

A4: Absolutely. The machine is designed to operate on U.S. power supply standards, typically 220V/60Hz or 480V/60Hz, as specified by the customer.

Q5: How long does it take to set up and install the machine?

A5: The setup and installation process typically takes 2-3 days with professional assistance. This includes machine alignment, testing, and operator training.

Q6: Does it come with a warranty?

A6: Yes, the machine comes with a 1-2 year warranty covering key components such as the motor, PLC, and rollers.

Q7: What additional tools or equipment are recommended for operation?

A7: It is recommended to have an uncoiler, coil handling system, and stacker to streamline production and minimize manual intervention.

Q8: What industries use board and batten metal siding panels?

A8: These panels are commonly used in residential construction (farmhouses and modern homes), commercial buildings, barns, and industrial structures due to their durability and aesthetic appeal.
