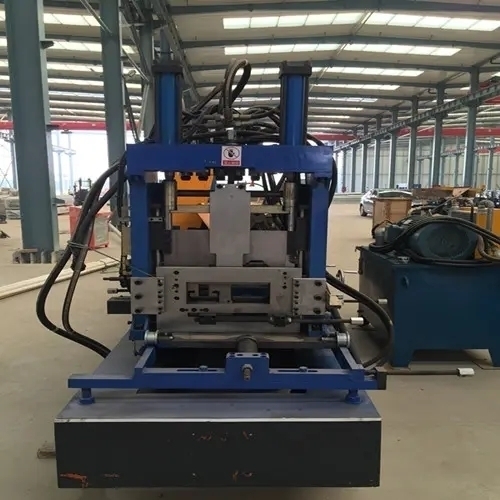

C Shaped Steel Roll Forming Machine in China
- Condition
- New
- Supplier
- Roll Forming Machines China
- Country
- China
- Listing ID
- 10077
Request a Quote
To express an interest in this machine please submit the form below.
- Delivery Time:30 Days
- Warranty:12 Months
- Material Of Cutting Blade:Cr12
- Type:Roof Sheet Roll Forming Machine
- Cutting Mode:Hydraulic
- Voltage:At Customer’s Request
- Way Of Driven:Chain Transmission
- Material:Steel Coil, Galvanized, PPGI, Aluminum
- Speed:6-8m/min(including Punching And Cutting Time)
- Control System:Panasonic/Mitsubishi PLC
- Packaging:NUDE
- Productivity:200 sets/year
- Brand:YY
- Transportation:Ocean
- Place of Origin:Hebei
- Supply Ability:200 sets/year
- Certificate:CE/ISO9001

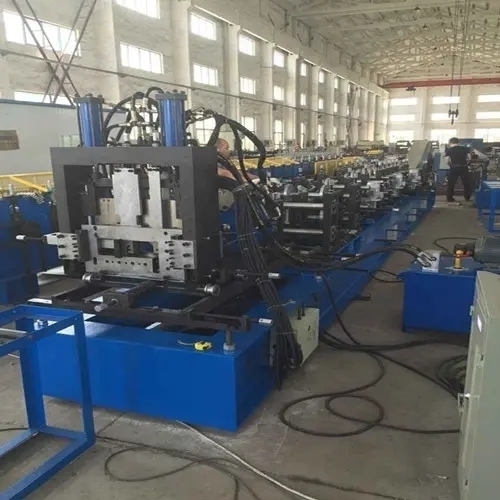

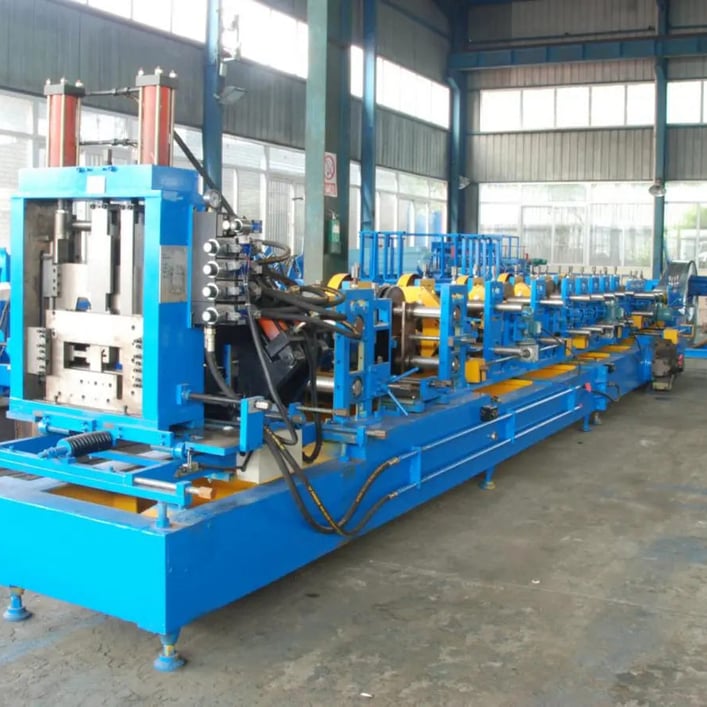

C Shaped Steel Roll Forming Machine
Product categories ofC Shaped Steel Roll Forming Machine, we are specialized manufacturers from China,C Shaped Steel Roll Forming Machine,C Shaped Steel Roll Forming Machine for Salesuppliers/factory, wholesale high-quality products ofC Shaped Steel Roll Forming Machine PriceR & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table
| Matching material | Steel coil, Galvanized, PPGI, Aluminum |
| Material thickness range | According to drawings |
| Main motor power | 15KW |
| Forming speed | 6-8m/min (include punching and cutting time) |
| Hydraulic power | 5.5KW |
| Quantity of rollers | About 18 |
| Shaft diameter and material | 70mm, material is 40Cr |
| Material of rollers | 45# steel with chromed |
| Way of driven | chain transmission |
| Controlling system | PLC |
| Voltage | 380V/30Phase/50Hz |
| Total weight | About 10 tons |
| Size of the machine | L*W*H 10m*1.2m*1.6m |
