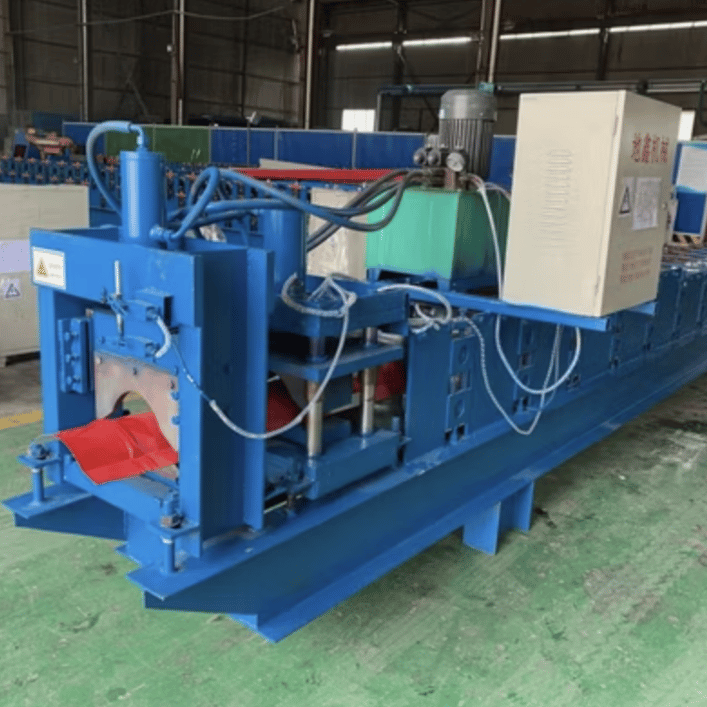

Cap Ridge Roll Forming Machine in China

The Cap Ridge Roll Forming Machine is designed for the efficient production of cap ridge profiles used in roofing systems. Cap ridges are essential components that seal the roof's ridgeline, ensuring durability and waterproofing while providing a neat finish to the roofing system. This machine delivers precision and productivity, catering to industries involved in construction, roofing, and infrastructure development.

Machine Description

The Cap Ridge Roll Forming Machine is a high-performance machine that fabricates cap ridge profiles with consistent quality. The machine integrates advanced technology, ensuring precise dimensions and high-speed operation. It is suitable for various material types and thicknesses, providing flexibility for manufacturers.

This machine is often equipped with user-friendly PLC systems for automation, minimizing human intervention while maximizing productivity. Its robust construction ensures long-term durability, even in demanding industrial environments.

Specifications

Machine Features

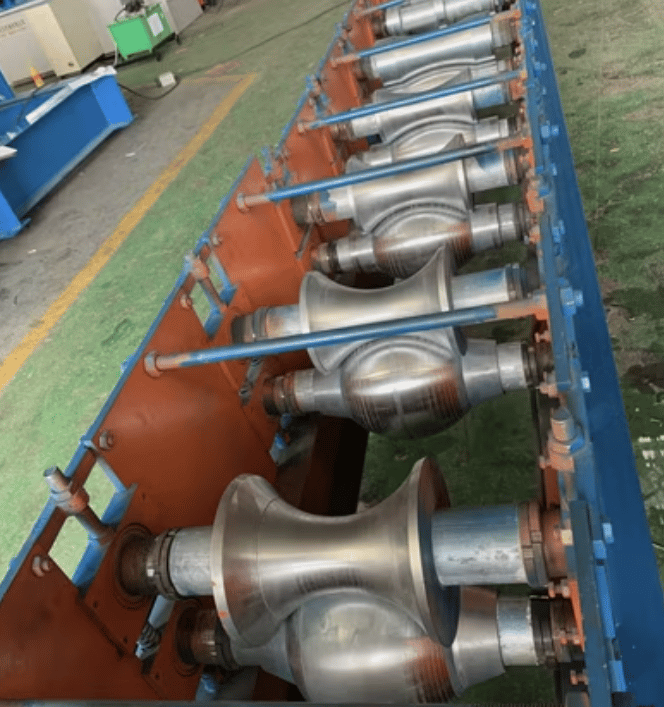

• Roller Materials: High-grade steel (e.g., GCr15 or 45# steel) with heat treatment and chrome coating for durability.
• Punching and Notching: Optional hydraulic or mechanical systems for holes or notches in profiles.
• Frame Size: Ranges from 300mm to 450mm, depending on machine configuration.
• Motor: Industrial-grade electric motors, typically 5.5 kW to 15 kW, based on production capacity.
• PLC System: Integrated control system (e.g., Siemens or Mitsubishi) with touchscreen HMI for easy operation.
• Machine Speed: Typically 15–30 meters per minute, adjustable as needed.
• Safety Features: Includes safety guards, emergency stop buttons, and enclosures for operator safety.
• Hydraulic Cutting System: Ensures precise and burr-free cuts, tailored to specific lengths.
• Power Requirements: Customizable for local standards (220V, 380V, 415V).

Profile Specifications

• Material Compatibility: Galvanized steel, aluminum, and coated steel.
• Material Thickness: 0.3mm to 0.8mm.
• Profile Width: Varies depending on customer requirements (standard profiles between 200mm and 400mm).
• Material Feed: Uncoiler system for smooth material feeding.

Optional Add-ons

• Automatic Stacker: For efficient stacking of finished products.
• Coil Car Tipper: Facilitates smooth coil handling.
• Remote PLC System: Enables remote operation and monitoring.
• Leveling Systems: Ensures flatness and accuracy in raw material feeding.

Maintenance Requirements

• Daily Maintenance: Regular lubrication of rollers and gears; cleaning of debris from the cutting area.
• Periodic Checks: Inspection of electrical connections, hydraulic oil levels, and motor performance.
• Replacement Parts: Rollers and cutting blades may require periodic replacement depending on usage.

Question and Answer Section

Q1. What industries typically use Cap Ridge Roll Forming Machines?

A1. These machines are widely used in the roofing and construction industries, especially by manufacturers of metal roofing systems for residential, commercial, and industrial buildings.

Q2. Can the machine handle different profile designs?

A2. Yes, the machine can be customized to produce various cap ridge designs by modifying the roller dies and PLC programming.

Q3. What materials are compatible with this machine?

A3. The machine supports galvanized steel, aluminum, and pre-coated steel with thicknesses ranging from 0.3mm to 0.8mm.

Q4. What is the average production speed of the machine?

A4. The machine typically operates at a speed of 15–30 meters per minute, which can be adjusted based on the production requirements.

Q5. Are there any special power requirements?

A5. The power requirements depend on the location and are customizable to meet local standards (220V, 380V, 415V, etc.).

Q6. How long does it take to set up and install the machine?

A6. The setup and installation process usually take 2–5 days, depending on the complexity of the machine and site conditions. It is advisable to have a professional technician assist with the installation.

Q7. What is the typical lifespan of a Cap Ridge Roll Forming Machine?

A7. With proper maintenance, the machine can last 10–15 years or more, depending on usage and operating conditions.
