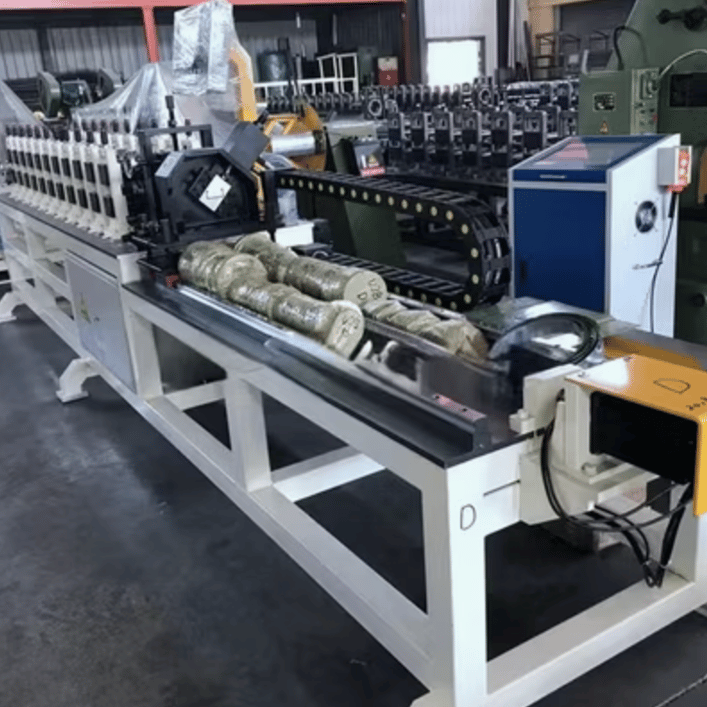

Ceiling T Bar Roll Forming Machine China

•
•
•

A Ceiling T-Bar Roll Forming Machine is a specialized piece of equipment designed to manufacture T-shaped steel bars used in suspended ceiling systems. These T-bars form the structural framework that holds ceiling panels in place. The machine is engineered for precision, speed, and efficiency, making it an ideal choice for large-scale production in the construction and interior design industries.

The machine uses sheet metal or coils of varying thicknesses and materials, forming them into the desired T-bar profile through a series of precisely aligned rollers. Its automation system ensures consistent quality while minimizing material wastage.

Specifications

• Roller Materials: High-grade chromium-plated steel or hardened alloy steel for durability and precision.
• Frame Size: Rigid, heavy-duty steel structure to minimize vibration and enhance stability.
• Forming Stations: 12–18 stations (customizable depending on the profile).
• Material Thickness: 0.3–1.0 mm (adjustable for different applications).
• Material Types: Galvanized steel, aluminum, and stainless steel.
• Profile Width: Adjustable to create various T-bar sizes (e.g., 24mm, 15mm).
• Production Speed: Up to 30–50 meters per minute.
• Cutting System: Hydraulic or servo motor-based cutting for high precision.
• Power Supply: 380V/50Hz (customizable for different regions).
• Control System: Fully automated PLC control with a touch screen interface.
• Motor Power: 5.5 kW to 11 kW (depending on the machine size and complexity).
• Safety Features: Emergency stop, safety guards, and enclosures for operator safety.
• Optional Features:
  • Automatic uncoiler and recoiler
  • Pre-punching and notching system
  • Online embossing for decorative finishes
  • Stacker and packaging unit

Profile Description

• Materials: Typically made from galvanized steel or aluminum for corrosion resistance.
• Sizes: Common T-bar profiles include cross T and main T with widths of 24mm or 15mm.
• Material Gauge: 0.3–1.0 mm, depending on structural and aesthetic requirements.
• Industries Using T-Bars:
  • Construction and interior design
  • Commercial and residential buildings
  • Hospitals, offices, and retail spaces
• Popular Countries: United States, United Arab Emirates, India, Germany, and Australia due to extensive commercial and residential construction activities.

Setup and Installation

1. Site Preparation: Ensure adequate space, power supply, and ventilation.
2. Machine Installation: Secure the machine to a leveled surface to avoid vibration.
3. Power Connection: Connect the machine to the designated power source.
4. Calibration: Set the rollers and cutting mechanism according to the desired profile dimensions.
5. Test Run: Run a trial to ensure smooth operations and accurate profiling.

Maintenance Requirements

• Regular lubrication of rollers and moving parts.
• Inspection of electrical systems and sensors for any faults.
• Cleaning the machine to prevent material build-up.
• Periodic sharpening or replacement of cutting blades.

Question and Answer Section

Q1: What types of materials can this machine process?
A: The Ceiling T-Bar Roll Forming Machine can process galvanized steel, aluminum, and stainless steel, with thicknesses ranging from 0.3 to 1.0 mm.

Q2: Can the machine produce different T-bar sizes?
A: Yes, the machine is equipped with adjustable rollers and cutting systems, allowing it to create various T-bar sizes, such as 24mm and 15mm profiles.

Q3: What is the average production speed?
A: The production speed ranges from 30 to 50 meters per minute, depending on the material and profile complexity.

Q4: Is the machine compatible with regional power supplies?
A: Yes, the power supply can be customized to match regional standards, such as 380V/50Hz or 220V/60Hz.

Q5: Does the machine come with a warranty?
A: Most manufacturers provide a 1-year warranty covering parts and labor. Extended warranties may be available at an additional cost.

Q6: How is the cutting precision ensured?
A: The machine uses a hydraulic or servo motor cutting system, controlled by a PLC for high precision.

Q7: What safety features are included?
A: The machine includes emergency stop buttons, safety guards, and enclosures to protect the operator from moving parts.

Q8: Can the machine be integrated with a packaging unit?
A: Yes, optional stacker and packaging units can be integrated for efficient handling of finished products.

Q9: How long does installation take?
A: Installation typically takes 2–3 days, depending on site readiness and machine complexity.

Q10: What industries commonly use T-bars?
A: T-bars are extensively used in the construction and interior design industries for suspended ceiling systems in commercial and residential buildings.
