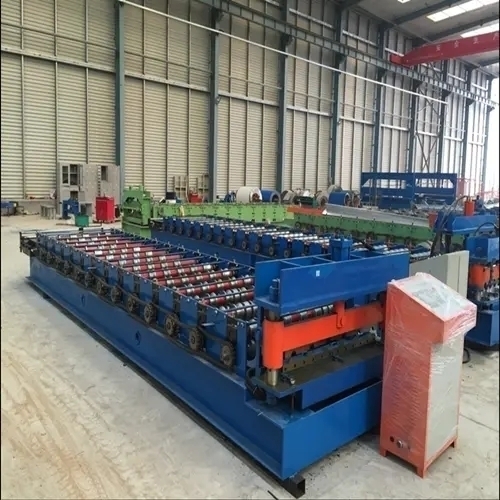

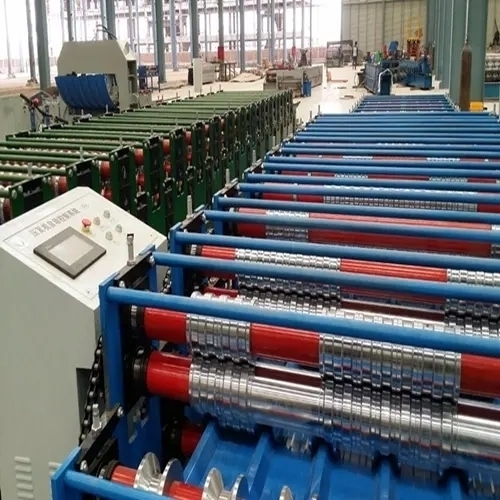

Color Steel Trapezoidal Tile Roll Forming Machine in China
- Control System:PLC
- Warranty:12 Months
- Thickness:0.3-1mm
- Using:Roof
- Type:Roof Sheet Roll Forming Machine
- Forming Speed:25-30m/min
- Voltage:38oV/3Phase/50Hz Or At Customer’s Request
- Material:GI, PPGI, Aluminum Coils
- Cutting Mode:Hydraulic
- Delivery:30 Days
IBR trapezoid Roof Sheet Roll Forming Machine
Roof panel are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What’s more, equipment can be designed and manufactured as customers’ requests.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |
| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |
