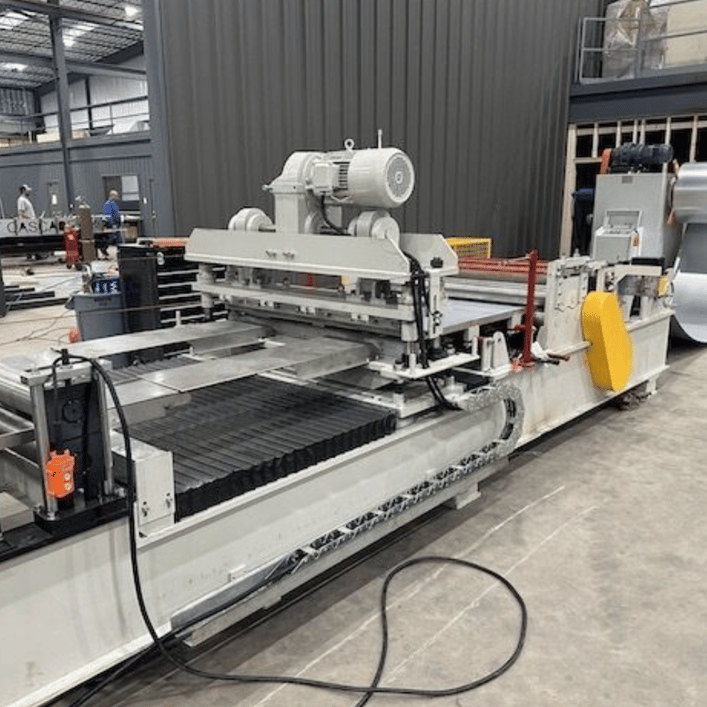

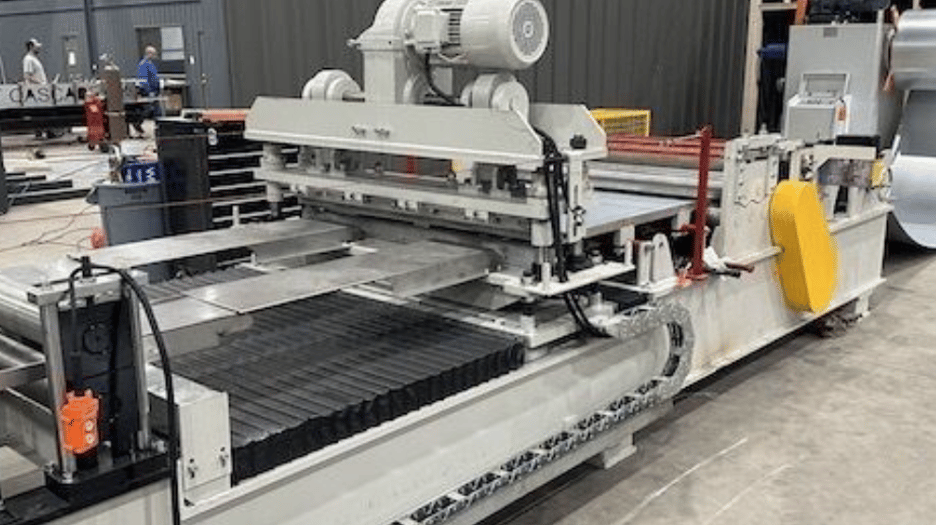

Floor Deck Roll Forming Machine USA

Floor deck roll forming machines are essential equipment in the construction and building industries, widely used to produce floor decking profiles that serve as structural platforms for floors and roofs. These machines are designed to deliver precision, speed, and durability while adhering to stringent quality standards. This guide provides a comprehensive overview of floor deck roll forming machines, focusing on their specifications, features, and market relevance in the USA.

1. Machine Description

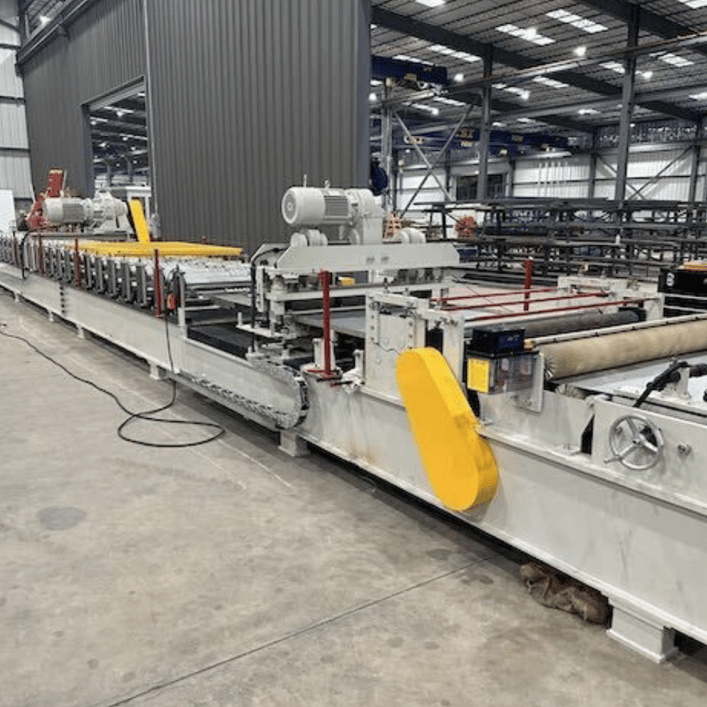

A floor deck roll forming machine is an advanced industrial machine specifically designed to manufacture steel floor decking sheets. These sheets provide structural strength to buildings and support concrete slabs in multi-story construction.

Key Features

• Durability: Built with heavy-duty materials to handle high-volume production.
• Precision: Ensures consistent profile dimensions for effective load distribution.
• Automation: Equipped with a PLC control system for efficient and user-friendly operation.
• Customizability: Can produce different decking profiles as per project requirements.
• Compliance: Meets American standards for construction materials and safety regulations.

2. Machine Specifications

The specifications of a floor deck roll forming machine vary based on the model and customization. Below are the general specifications suitable for the USA market:

Machine Details

• Roller Materials: High-grade chromium-coated steel for durability and wear resistance.
• Frame Size: Heavy-duty, 16-20 mm steel wall panels.

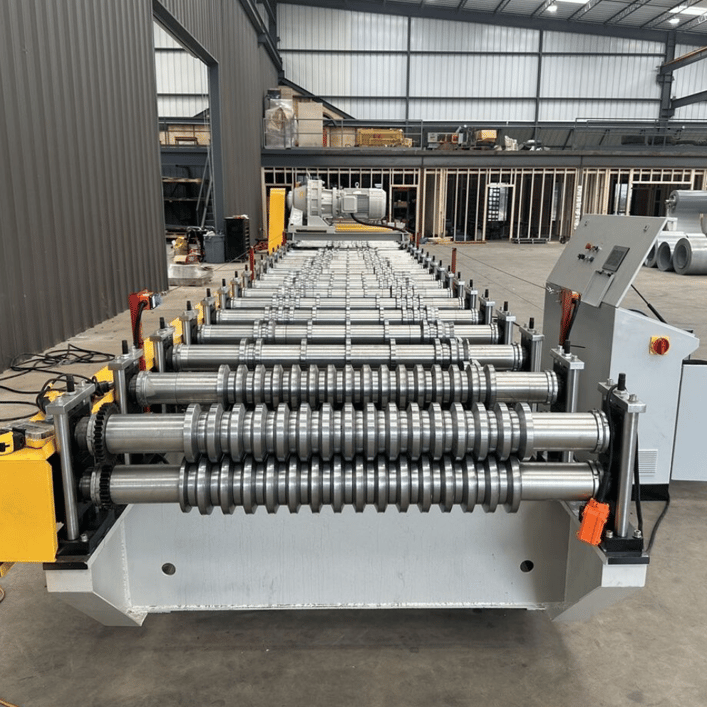

• Number of Rollers: 16–24 stations (depending on profile complexity).

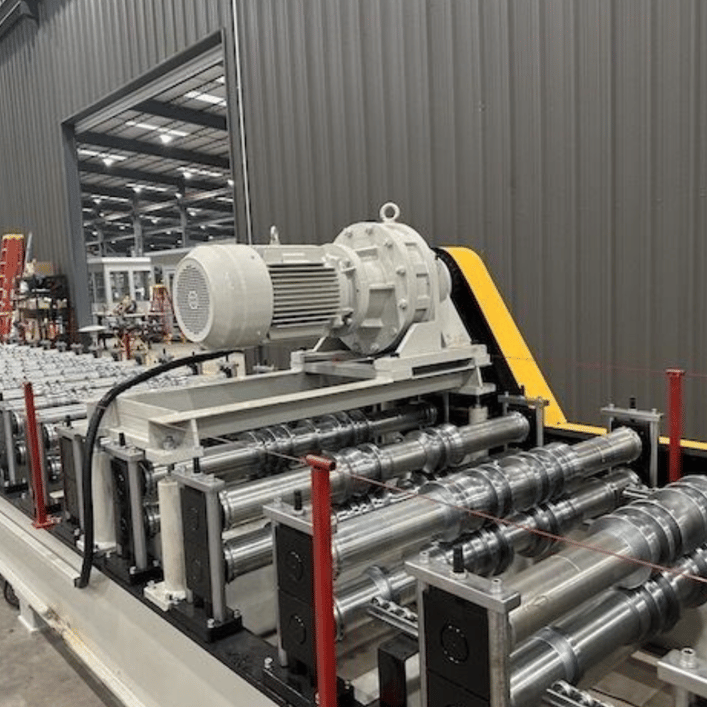

• Motor: 7.5 kW to 15 kW main motor with an additional 4 kW hydraulic motor.
• Cutting System: Hydraulic cutting system with high-precision molds.
• Machine Speed: 10-20 meters per minute (adjustable based on profile complexity).
• PLC Control System: Fully automated Siemens or Mitsubishi system with touchscreen interface.
• Safety Features: Enclosures, emergency stop buttons, and guards for operator protection.

Profile Specifications

• Material Compatibility: Galvanized steel, stainless steel, and aluminum.
• Thickness Range: 0.8 mm to 1.5 mm.
• Width Range: 600 mm to 1200 mm (customizable).
• Yield Strength: Up to 550 MPa.
• Profile Shape: Trapezoidal or ribbed designs.

Extras

• Uncoilers and Recoilers: Manual or hydraulic options for smooth material handling.
• Stacker System: Automatic stacking for finished profiles.
• Embossing Rollers: Optional for anti-slip surface patterns.

3. Applications in the USA

• High-Rise Buildings: Floor decking profiles are crucial in multi-story buildings for structural support.
• Bridges: Used in composite bridge flooring for increased durability.
• Industrial Warehouses: Enhances load-bearing capacity for heavy machinery.
• Stadiums and Arenas: Provides a robust base for seating structures.
• Residential Projects: Offers a cost-effective and strong base for floors.

4. Questions and Answers

Q1. What is the primary function of a floor deck roll forming machine?

The primary function of the machine is to produce high-strength steel floor decking profiles that support concrete slabs in construction projects.

Q2. How do I choose the right floor deck roll forming machine for my needs?

Consider the following factors:

• Required production volume.
• Material thickness and width.
• Specific floor deck profile design.
• Local power supply (USA typically uses 220V/60Hz or 440V/60Hz).
• Compliance with local construction standards.

Q3. Can the machine produce multiple profiles?

Yes, many machines offer customizable tooling, allowing users to switch between profiles with different designs and dimensions.

Q4. What are the maintenance requirements for this machine?

• Regular lubrication of rollers and moving parts.
• Inspection of hydraulic systems for leaks.
• Cleaning and replacing worn-out cutting blades.
• Periodic software updates for the PLC system.

Q5. How long does it take to install and set up the machine?

The installation and setup process typically takes 2-3 days, depending on the machine's complexity and factory infrastructure.

Q6. Is training provided for operating the machine?

Yes, most suppliers offer training sessions for operators, covering machine handling, maintenance, and troubleshooting.

Q7. How energy-efficient is this machine?

Modern floor deck roll forming machines are designed to be energy-efficient, with optimized motors and PLC systems minimizing power consumption.

5. Why Choose Floor Deck Roll Forming Machines in the USA?

• Compliance: These machines meet stringent U.S. construction standards, ensuring safety and reliability.
• Durability: Built for heavy-duty applications, ideal for large-scale projects.
• Customization: Offers versatility for various construction needs.
• Local Support: Many suppliers provide installation and after-sales services in the USA.

Investing in a floor deck roll forming machine is a critical step toward improving productivity and ensuring high-quality output in construction projects. By understanding the machine's capabilities and specifications, buyers can make informed decisions tailored to their specific requirements.
