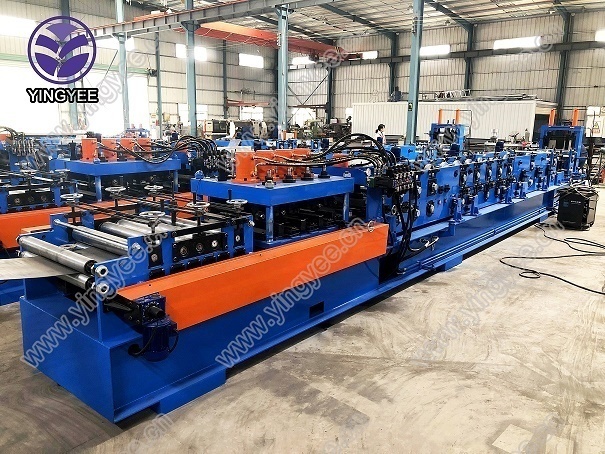

Fully Automatically CZ Purlin Machine in China

18-20m/min, good quality

• Mainly forming system
• Main power:5kw, hydraulic power：5.5kw
• 6 electronicmotors auto adjust size.
• Frame：500mm H frame steel
• Forming speed: 18-20m/min
• Shaft material and diameters: #45 steel and fit side 65mm. flexibleside:85mm
• Roller material: Gcr15. the hardness is HRC 52-55
• Steps: 15 steps for forming
• All size change by PLC. All parameter set from the PLC control system
• C/Z change, by manual change the rollers discretion
• Machine structure：pannel stand + one side can move

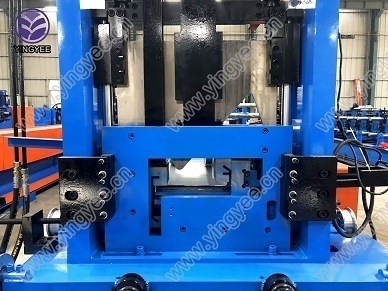

• Cutter:universal cut
• Hydraulic pre cut
• with 3 sets of holes

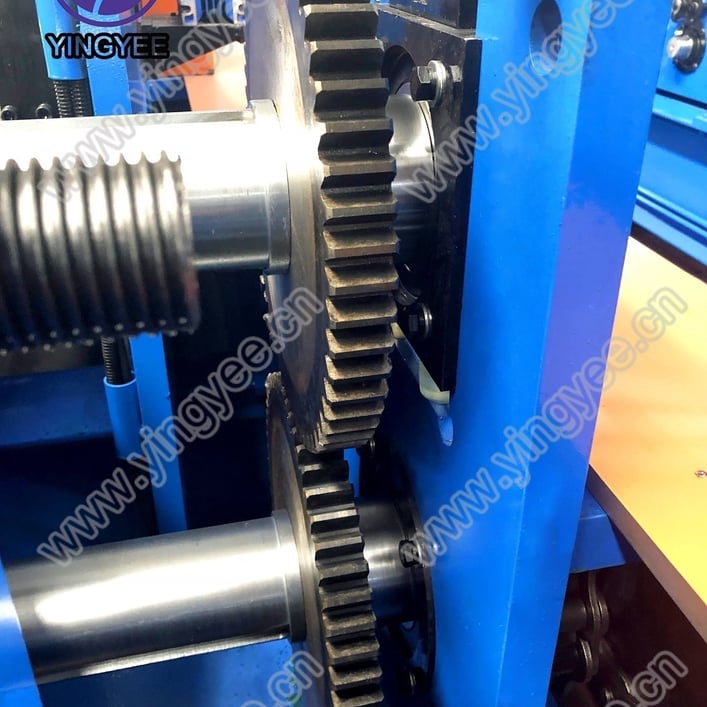

• Drive ：sprocket+gear
• Machine size: L*W*H 11.5m*1.6m*1.4m(approx size. correct size will be known when machineready)
• Machine weight about 12Tons
• Voltage: 380V/ 3phase/ 50 Hz
