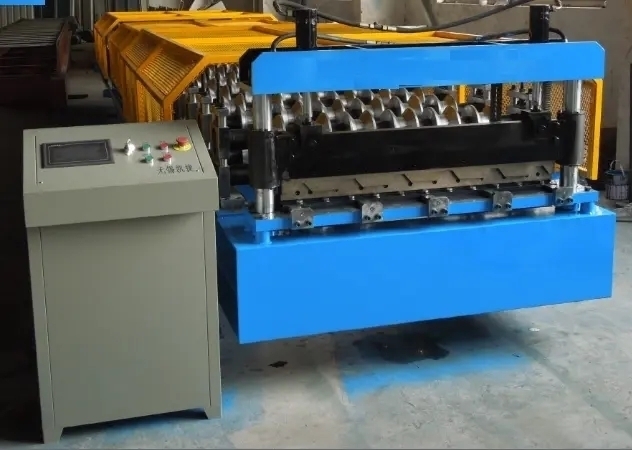

Galvanized Metal Trapezoid Roof Sheet Roll Forming Machine in China
- Control System:PLC
- Warranty:12 Months
- Thickness:0.3-1mm
- Using:Roof
- Type:Roof Sheet Roll Forming Machine
- Forming Speed:25-30m/min
- Voltage:38oV/3Phase/50Hz Or At Customer’s Request
- Material:GI, PPGI, Aluminum Coils
- Cutting Mode:Hydraulic
- Delivery:30 Days
Galvanized metal Trapezoid Roof Sheet Forming Machine
The trapezoid roofing metal roof panel machine is also called tile forming machine.The most important thing is that we can design it as our client’s request, no matter on the drawings or the sizes and brand of every part, we will try our best to satisfy our cuotomer’s requirement.Normally the working speed can be 12-18 m/min.Material type commonly are PPGI, galvanized coil,galvalume coil and so on.

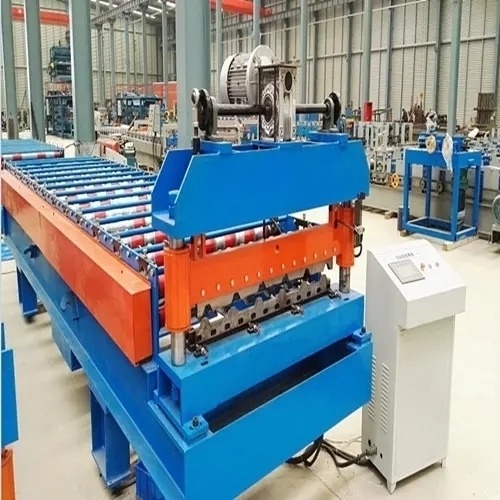

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |

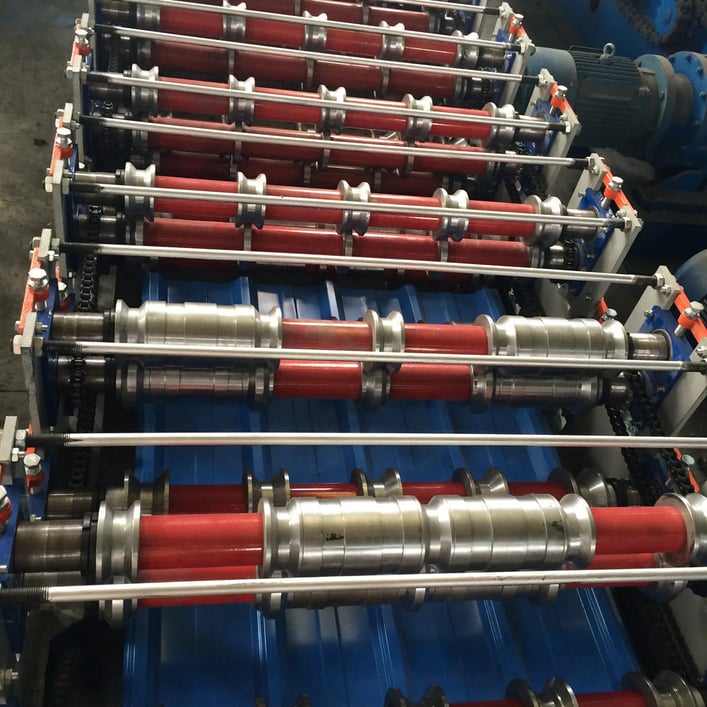

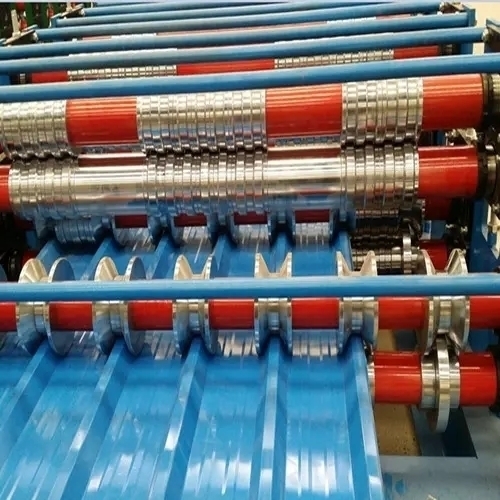

| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |
