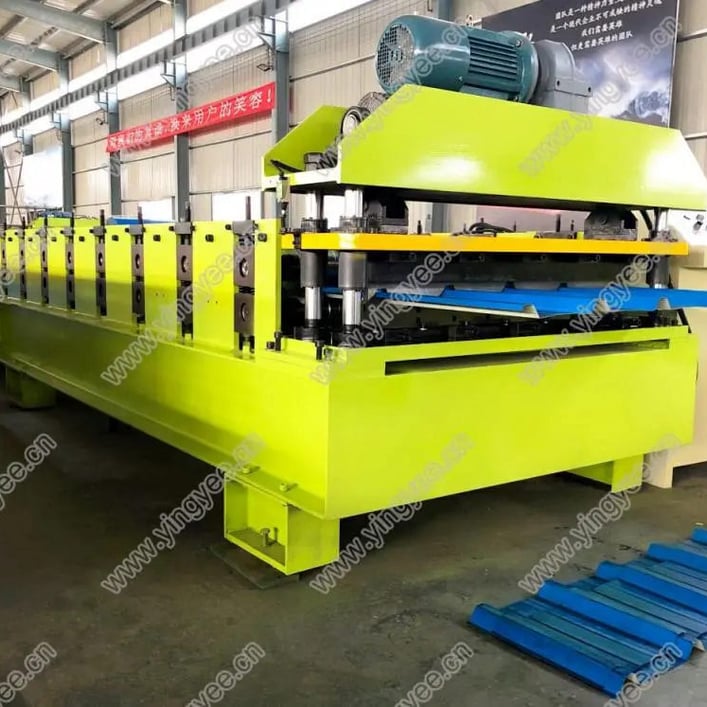

Galvanized Tile Roofing Roll Forming Machine in China
- Condition
- New
- Supplier
- Roll Forming Machines China
- Country
- China
- Category
- Listing ID
- 10337
Request a Quote
To express an interest in this machine please submit the form below.
- Control System:PLC
- Warranty:12 Months
- Thickness:0.3-1mm
- Using:Roof
- Type:Roof Sheet Roll Forming Machine
- Forming Speed:25-30m/min
- Voltage:38oV/3Phase/50Hz Or At Customer’s Request
- Material:GI, PPGI, Aluminum Coils
- Cutting Mode:Hydraulic
- Delivery:30 Days

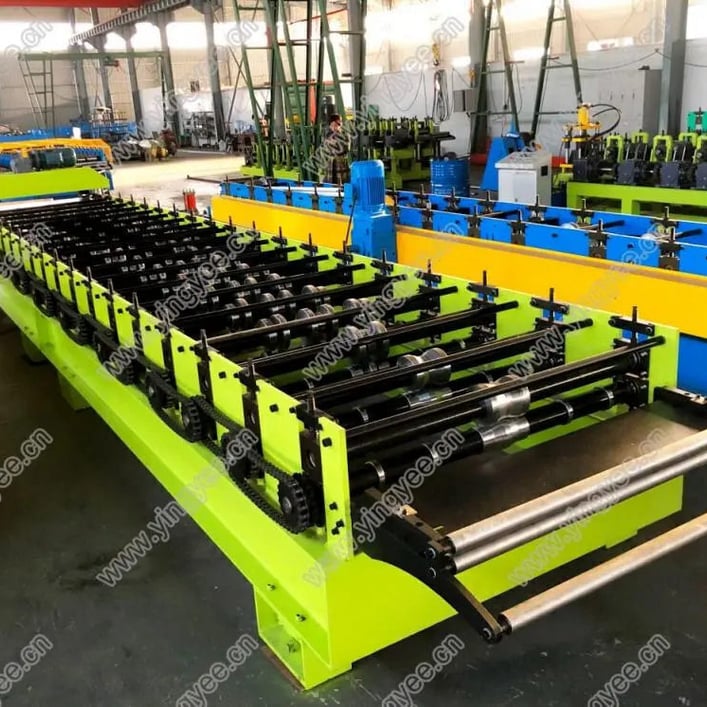

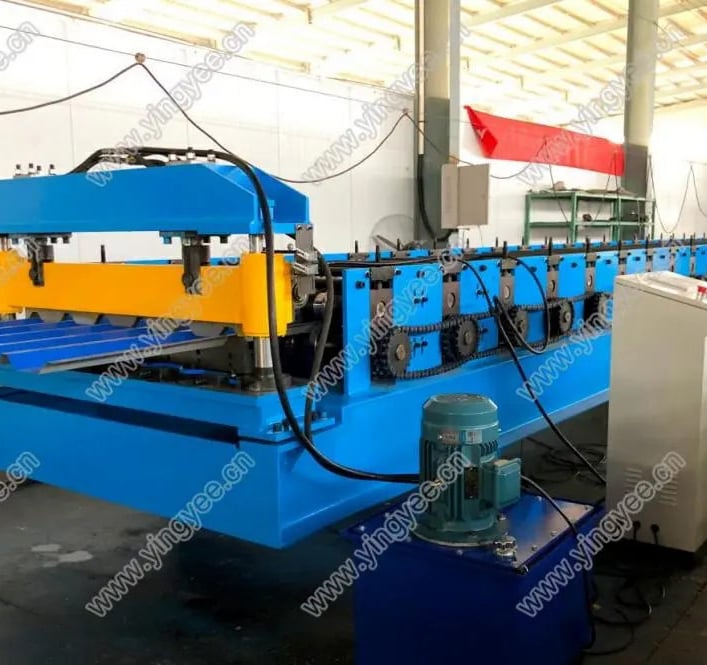

IBR trapezoid Roof Sheet Roll Forming Machine

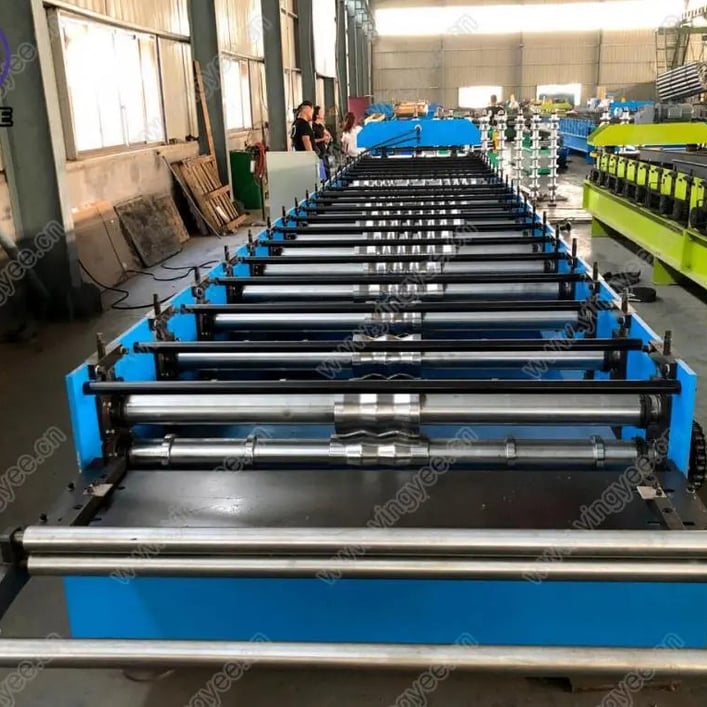

Trapezoid Metal Sheet Roll Forming Machine, The coil is fed into roll forming machine, after a continuous bending operation in which coil sheet is passed through consecutive sets of roller stands, steel strip is formed into required panel., has advantage of heavy strength
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |
| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |
