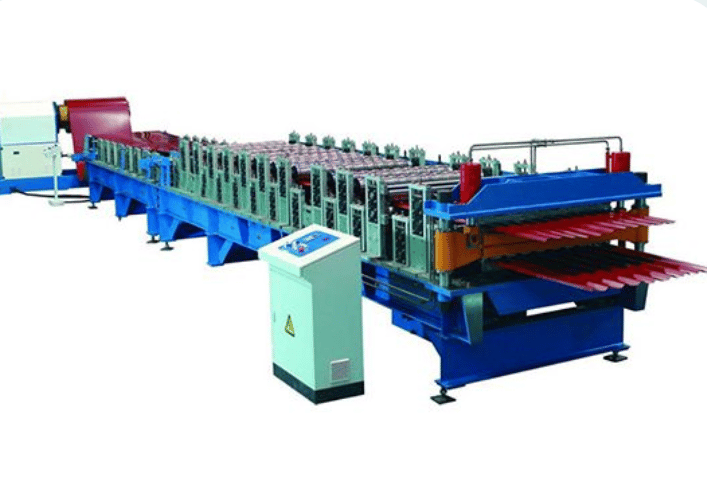

High-Speed Double Layer Roof Panel Roll Forming Machine in Shaoxing City, China
- Condition
- New
- Supplier
- Roll Forming Machines China
- Country
- China
- Listing ID
- 9073
Request a Quote
To express an interest in this machine please submit the form below.
This roll forming machine is ideal equipment used in steel structure & cold roll forming industry, it features double layers and can produce different profiles. It integrates mechanic, electric and hydraulic systems, therefore it can ensure a high working efficiency and can work in a full automation.
| Item | Unit | Parameter | Remark | |
| Suitable panel materials | Type | Color plate, aluminium sheet, galvanized plate | Depending on customers' requirement | |
| Thickness | mm | 0.4-0.8, 0.8-1.2 or 1.2-1.5 | ||
| Yield strength | Mpa | ≤550 | As per customers' material characteristic | |
| Width | mm | ≤1500 | According to different profile shape | |
| Coil weight | T | 5, 8 or 10 | Optional | |
| Working speed | m/min | ≤20-50 | According to customers' desired production capacity and requirement | |
| Roller material | 45steel, 38CrMoAl, GCr15 or D2 | |||
| Roller driving mode | Independent stander, built-in chain drive | |||
| Electric control system | Industrial computer PLC frequency control | |||
| Console mode | Touch screen+ button | |||
| Total power | kW | 12.7 | As per technical requirement | |
| Outline dimensions (LXWXH) | m | 30X3.5X2 | ||
