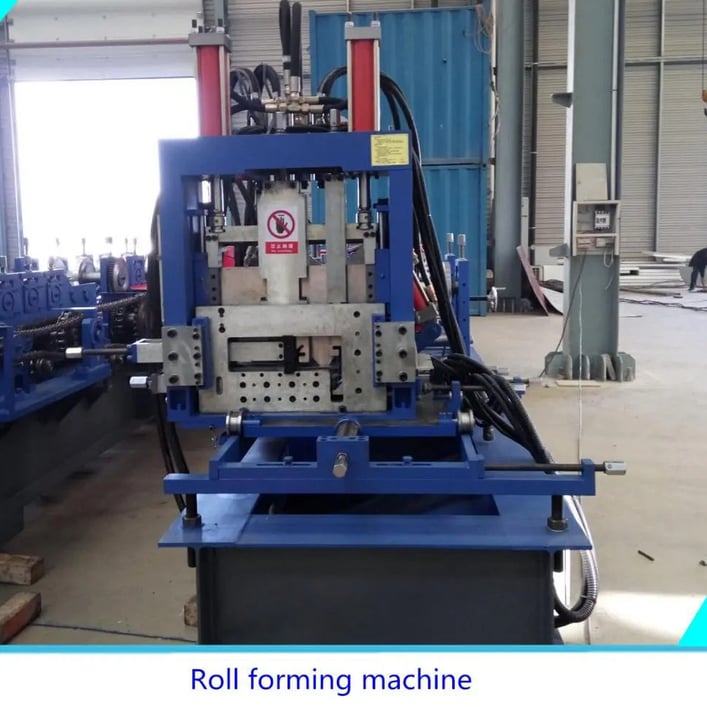

Hydraulic CZ Purlin Touch Screen Roll Forming Machine in China
- Condition
- New
- Supplier
- Roll Forming Machines China
- Country
- China
- Listing ID
- 10149
Request a Quote
To express an interest in this machine please submit the form below.
- Model No.:YY-CZ PULIN
- Type:Roof Sheet Roll Forming Machine
- Warranty:12 Months
- Material:Steel Coil, Galvanized, PPGI, Aluminum
- Speed:10-18m/min(not Include Punching And Cutting Time)
- Control System:Panasonic/Mitsubishi PLC
- Way Of Driven:Chain Transmission

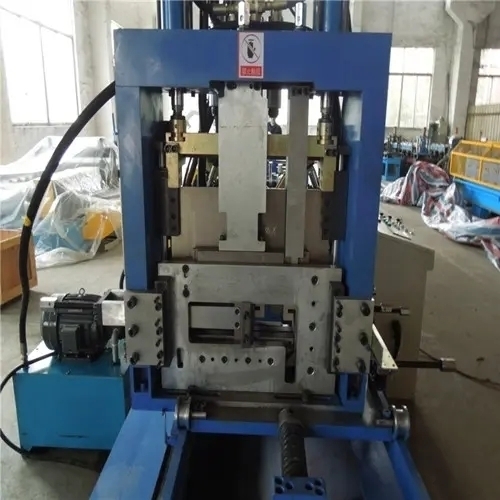

- Cutting Mode:Hydraulic
- Material Of Cutting Blade:CR12 Mov
- Voltage:At Customer’s Request
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table
| Matching material | Steel coil, Galvanized, PPGI, Aluminum |
| Material thickness range | According to drawings |
| Main motor power | 30W |
| Forming speed | 10-18min (not include punching and cutting time) |
| Hydraulic power | 7.5KW |
| Quantity of rollers | About 18 |
| Shaft diameter and material | 70mm, material is 45#steel |
| Material of rollers | Gcr15 or Cr12 with chromed |
| Way of driven | chain transmission |
| Controlling system | PLC |
| Voltage | 380V/30Phase/50Hz (as customer require) |
| Total weight | About 12 tons |
| Size of the machine | L*W*H 10m*1.2m*1.6m |
