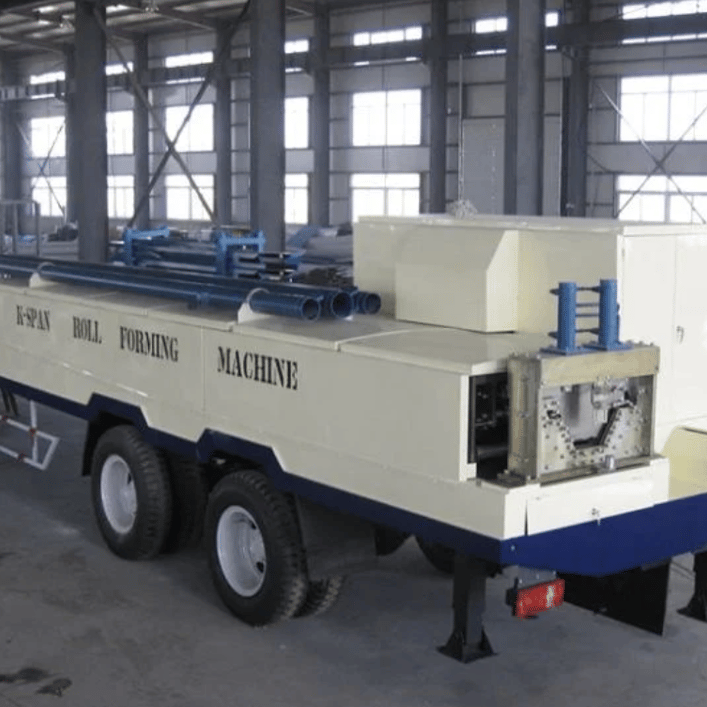

K Span Roll Forming Machine in Kuwait

K Span Roof Panel Roll Forming Machine/Arch Sheet Tile

• Technique parameters of the main roll forming machine
• The size of the production line: 9600mm* 2250mm * 2300mm;
• Total Weight: about 9000KG;
• Main Motor Power: 18.5KW;
• Forming power is 7.5kw;
• Bending power is 4.0kw;
• Cutting power is 4.0kw;
• Conical power is 3.0kw;
• Working Speed: Straight sheet: 15m/min;
• Arch sheet: 13m/min;Sewing: 6m/min;
• Material of rollers: 45# steel, quenched HRC 58-62;
• Material of roller shafts: 45# steel, quenched HRC 58-62;
• Material of cutting blade: Cr12 steel (Taiwan Airline Technique);
• Step of rollers: 13 steps;Span: 10-36m;
• Operating factor of the panel: 67%;
• The depth of the groove: 203mm;
• Gear/Spoket driving: 13 stations to form;
• Type of cutting: Roll-formed and length-set cutting;
• Standard:220V/50HZ/3PHASE;
• Double axles, 8 tyres.
