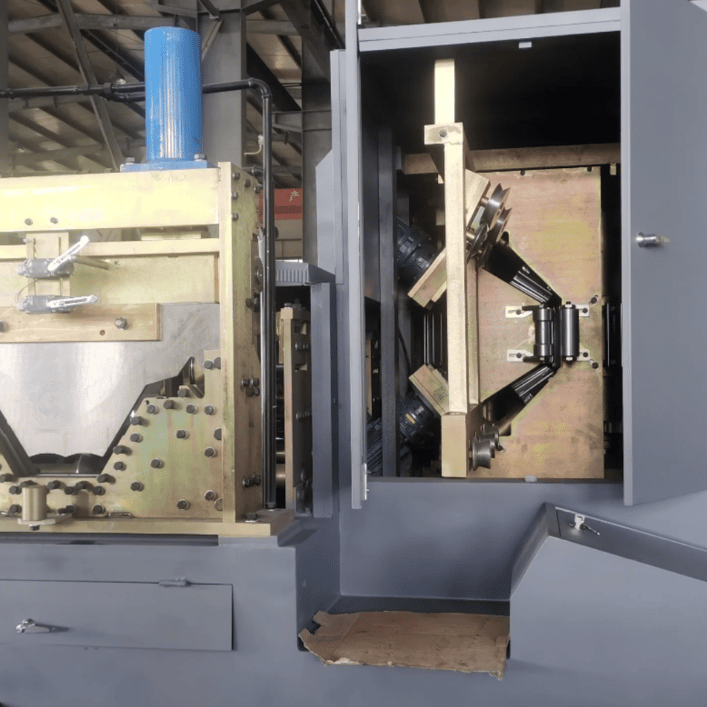

K Span Roll Forming Machine Morocco
| Size | 8900mm X 2230mm X 2300mm (With Single Axle 4 Tires) |
| Total Weight | About 10 Ton |
| Thickness of Bending Leaf | 10mm thickness, processed by CNC |
| Cutting Blade | 12CrMov Material, Heat Treatment |
| Cutting Type | Mechanical Cutting |
| Forming Type | Roll-Formed and Length-Set Cutting |
| Power | Total Motor Power : 17.5KW Main Motor Power : 7.5KW Bending Power : 3.0KW+1.5KWx2 Cutting Power : 4.0KW |
| Seaming Power | 1.1KW+1.1KW |
| Roller Material | 45# High-Quality Steel, Quenched HRC 55~65, Hard Chrome Plating |
| Shaft Material | 45# High-Quality Steel, Galvanized |
| Stand of Molding | 13+1 Steps |
| Feeding Width | 914mm |
| Effective Width | 610mm |
A K-span roll forming machine is a specialized piece of equipment used in the construction and manufacturing industries to create K-span or arch-type metal roofing and building components. This machine can produce continuous, curved metal sheets that are highly durable and suitable for a variety of applications, including warehouses, agricultural buildings, and storage facilities.
Key Features and Benefits of K-Span Roll Forming Machines
- Continuous Production: K-span machines produce long lengths of metal sheets in a single pass, reducing the need for seams and improving structural integrity.
- Customizable Profiles: They can be designed to produce various profiles and thicknesses, allowing for customization based on specific project requirements.
- High Efficiency: These machines are capable of operating at high speeds, resulting in faster production times and reduced labor costs.
- Durability: K-span products are typically made from high-strength materials, ensuring they can withstand harsh weather conditions and provide long-lasting performance.
- Versatility: Suitable for various applications, including roofing, walls, and arch structures, making them popular in both industrial and commercial sectors.
- Easy Operation: Many K-span roll forming machines are equipped with user-friendly controls, making them accessible for operators with different levels of experience.
Applications
- Agricultural Buildings: Used for barns, storage facilities, and equipment sheds.
- Industrial Structures: Suitable for warehouses and manufacturing plants.
- Commercial Buildings: Ideal for retail spaces and office buildings.
Conclusion
K-span roll forming machines are an efficient and effective solution for producing high-quality metal roofing and building components. Their ability to create durable and customizable products makes them a valuable investment for construction and manufacturing businesses looking to enhance their capabilities.
