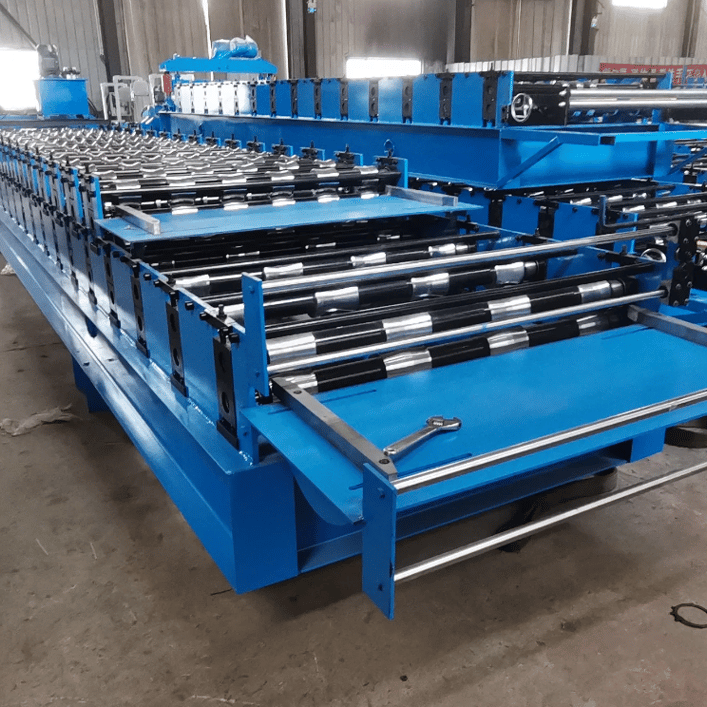

Metal Roof Roll Forming Machine in Texas, USA
- Condition
- New
- Supplier
- Roll Forming Machines United States
- Country
- United States
- Category
- Listing ID
- 8470
Request a Quote
To express an interest in this machine please submit the form below.
| 1 | Coil Width | 914mm/1000mm/1200mm /1250mm or according to your request |
| 2 | Diameter of shaft | 70mm |
| 3 | Forming Speed | 8-12meters/min |
| 4 | Middle plate | 16mm |
| 5 | Material of shaft | 45#steel with tempering |
| 6 | forming thickness | 0.2mm-0.6mm |
| 7 | material of rollers | 45#steel |
| 8 | Cutting type | hydraulic -cutting |
| 9 | Main power | 4kw/5.5kw /7.5kw/11kw according to machine |
| 10 | Main frame | 350H steel |
| 11 | Control system | PLC |
| 12 | Brand of electrical parts | Delta |
| 13 | Manual decoiler | 5 tons |
| 14 | Power | 3 Phase,380 Voltage,50Hz |
| 15 | Dimensions(L*W*H) | About 6.5*1.2*1.2M |
| 16 | Weight | about 3 tons |
