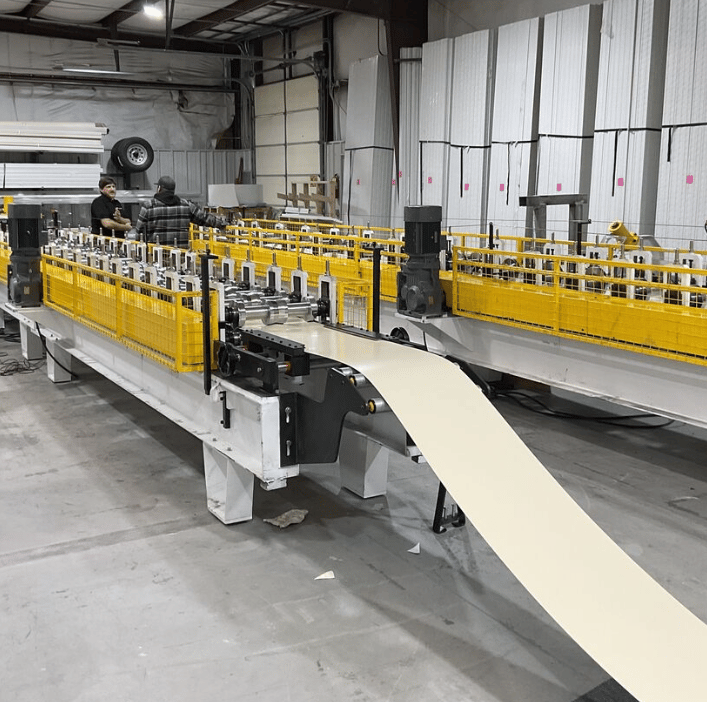

Metal U Channel Trim Roll Forming Machine in USA

The Metal U Channel Trim Roll Forming Machine is a specialized manufacturing system designed to produce precision-engineered U-shaped metal channels used in various industries such as construction, interior design, and industrial frameworks. This machine provides high efficiency, accuracy, and durability, making it an ideal choice for fabricators and contractors in the USA.

The machine forms U-shaped channels from metal coils, ensuring consistent quality and smooth edges. It is equipped with advanced technology, including a PLC control system for automated operations, ensuring ease of use and reducing labor costs. The machine can process different materials such as galvanized steel, stainless steel, aluminum, and other metals with varying thicknesses, making it versatile for diverse applications.

2. Specifications

General Machine Specifications

• Material Compatibility: Galvanized steel, stainless steel, aluminum, carbon steel, and copper.
• Material Thickness: 0.5 mm to 2.5 mm (customizable based on requirements).
• Material Width: Up to 600 mm (variable depending on profile design).

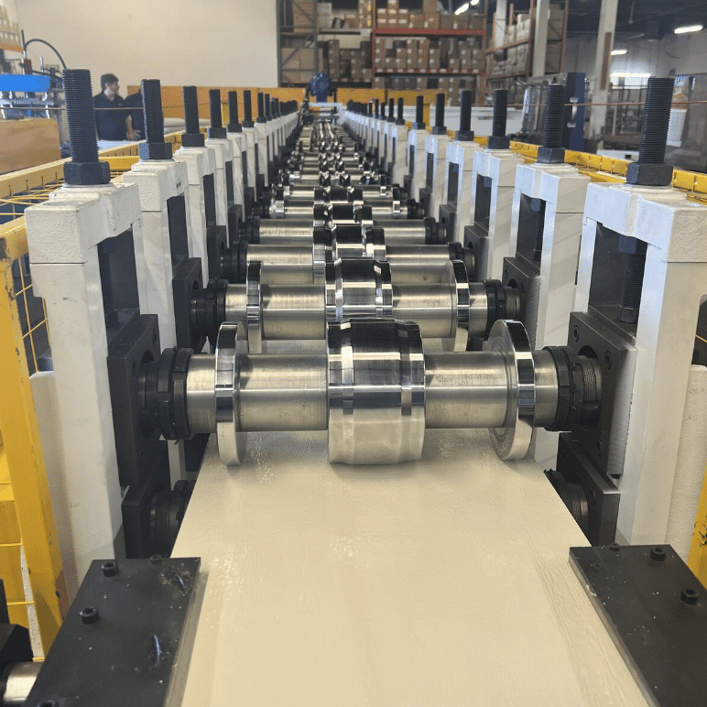

• Roller Stations: 12–20 stations (depending on profile complexity).
• Roller Material: GCr15 steel with chrome plating for durability and precision.
• Frame Structure: Heavy-duty steel with a rigid structure to minimize vibration.
• Machine Speed: 10–30 m/min (customizable with additional servo motors).
• Power Supply: 220V/380V/440V, 50Hz/60Hz (customizable to USA standards).
• Cutting System: Hydraulic cutting with carbide blades for precise cuts.
• Control System: Fully automated PLC control with touch-screen interface.
• Dimension (L×W×H): 8 m × 1.2 m × 1.5 m.
• Weight: Approximately 8,000 kg.

Optional Features

• Automatic stackers for output organization.
• Remote monitoring and control through IoT-enabled PLC systems.

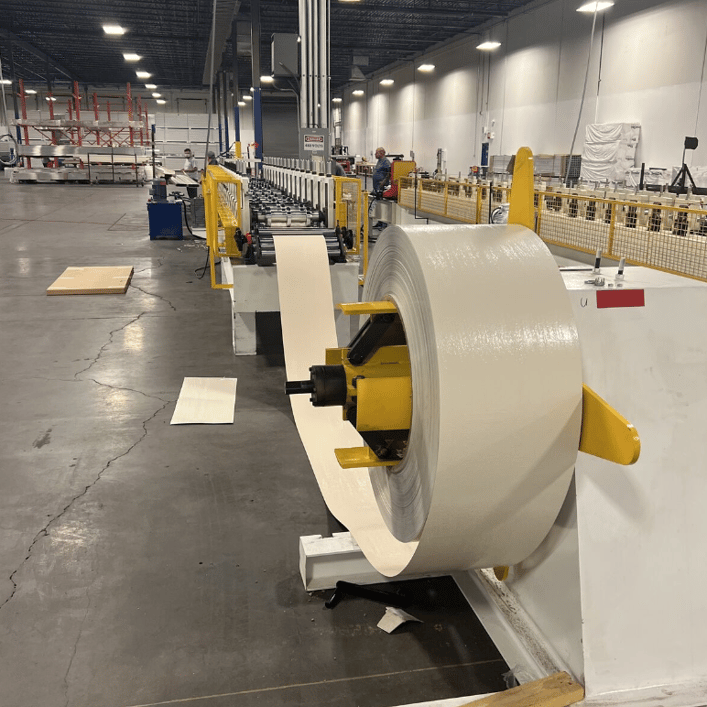

• Coil car and uncoiler systems for improved efficiency.
• Quick-change roll tooling for versatile profile production.

3. U-Channel Profile Description

• Shape: U-shaped with smooth edges and precise dimensions.
• Sizes: Customizable from 10 mm to 300 mm in width and up to 2.5 mm in thickness.
• Material Gauge: Ranges from 20 to 10 gauge.
• Applications:
  • Construction frameworks and drywall installation.
  • Industrial shelving and storage systems.
  • HVAC systems and cable management.
  • Furniture and automotive trims.
• Market Size: Widely used in residential, commercial, and industrial sectors across the USA.

4. Setup and Installation Process

1. Preparation:
   • Unpack and position the machine on a level foundation.
   • Connect to a power supply compatible with USA standards.
2. Assembly:
   • Install rollers and other components.
   • Configure the uncoiler, leveling system, and hydraulic cutting unit.
3. Calibration:
   • Test the roller alignment and material feed.
   • Input dimensions and specifications in the PLC control system.
4. Trial Run:
   • Perform a trial run with a sample coil to ensure accurate profile shaping.
5. Training:
   • Provide operator training on machine operation and maintenance.

5. Maintenance Requirements

• Regular lubrication of rollers and moving parts.
• Periodic inspection of hydraulic systems and cutting blades.
• Cleaning of debris and material residue after each production run.
• Updating PLC firmware for optimal performance.

6. Questions and Answers

Q1: What materials can the Metal U Channel Trim Roll Forming Machine process?

A: It can process galvanized steel, stainless steel, aluminum, carbon steel, and copper with thicknesses ranging from 0.5 mm to 2.5 mm.

Q2: Is the machine compatible with USA power standards?

A: Yes, the machine can be customized for 220V/380V/440V power supply with 50Hz or 60Hz frequency to meet USA standards.

Q3: What is the machine's production speed?

A: The production speed ranges from 10–30 m/min and can be enhanced with optional servo motor systems.

Q4: Are there additional features for automation?

A: Yes, the machine offers options like IoT-enabled PLC systems, automatic stackers, and remote control features.

Q5: Can the machine produce multiple profiles?

A: Yes, with quick-change roll tooling, the machine can be adjusted to produce various U-channel profiles.

Q6: How long does it take to set up the machine?

A: The complete setup process typically takes 2–3 days, including calibration and trial runs.

Q7: What is the expected lifespan of the machine?

A: With proper maintenance, the machine can last over 10 years.

Q8: What industries commonly use U-channel profiles?

A: U-channel profiles are extensively used in construction, HVAC systems, furniture, automotive trims, and industrial shelving.
