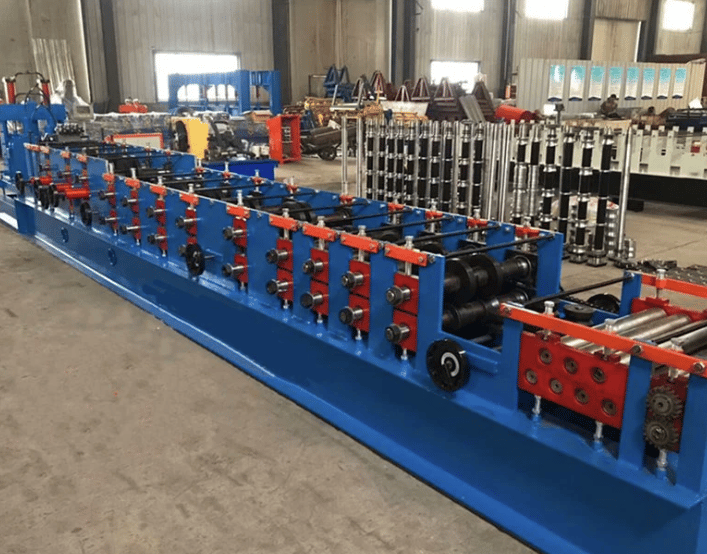

Purlin Roll Forming Machine in Mauritania
- Condition
- New
- Supplier
- Roll Forming Machines Mauritania
- Country
- Mauritania
- Category
- Listing ID
- 9301
Request a Quote
To express an interest in this machine please submit the form below.
Suitable to process | Galvanized steel strips | |
| 2 | Roller | 16-18Rows |
| 3 | Dimensions | 10500*1500*1600mm |
| 4 | Motor Power | 22Kw |
| 5 | Pump Station Motor | 5.5Kw.Lichao Brand |
| 6 | Thickness of the plate | 1.0mm-3.0mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |
| 9 | Diameter of the roller | Φ85mm |
| 10 | Weight | About 8500kgs |
| 11 | Main structure of the machine | 450H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 20 mm |
| 14 | Chain Wheel and Cycle Chain | 2 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer's need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
