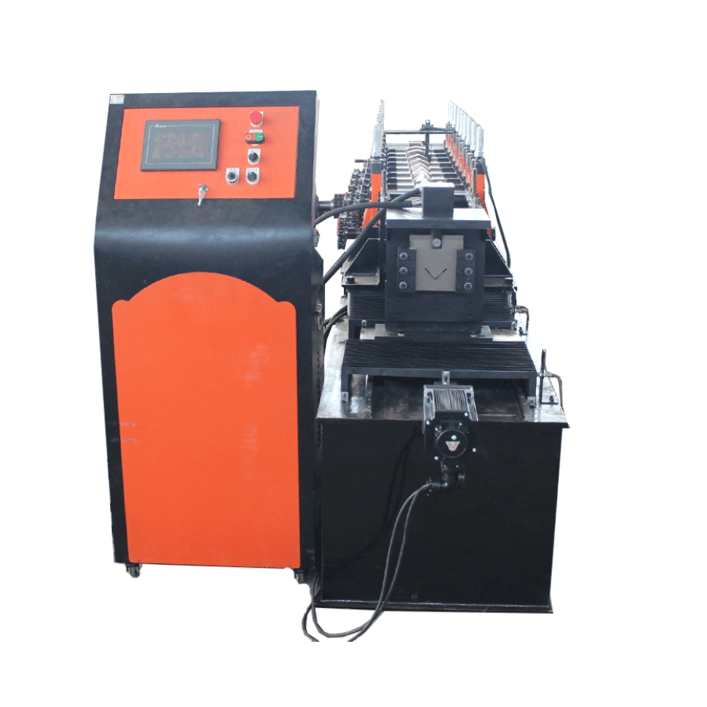

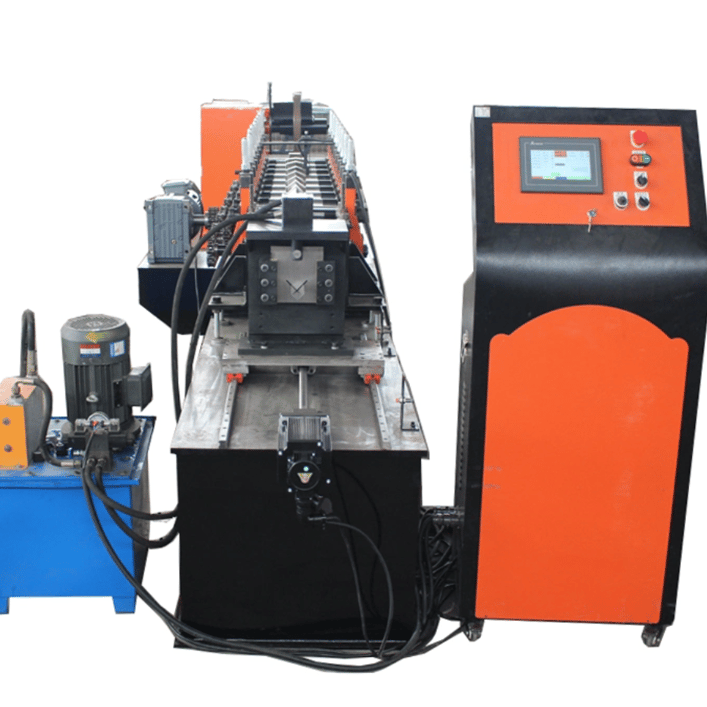

Roof Drip Edge Roll Forming Machine in Texas, USA

Request a Quote

To express an interest in this machine please submit the form below.

Roof Drip Edge Roll Forming Machine specification

Material: pre-painted steel coil, galvanized steel coil, galvalume steel coil;Thickness: 0.4mm - 0.8mm;Width: as per drawings.

(1). Forming stations: 12;

(2). Roller material: 45# steel with CNC machining and surface is being hard chrome;

(3). Diameter of shaft: ¢70mm solid forged 45 #steel, quenching process;

(4). Material of shaft: solid 45# steel with grinding process;

(5). Frame of the machine: square box structure welded with steel;

(6). Wall panel: independent style;

(7). Forming motor power: 4KW;

(8). Hydraulic station motor power: 4KW;

(9). Control system: PLC brand is DELTA from Taiwan;

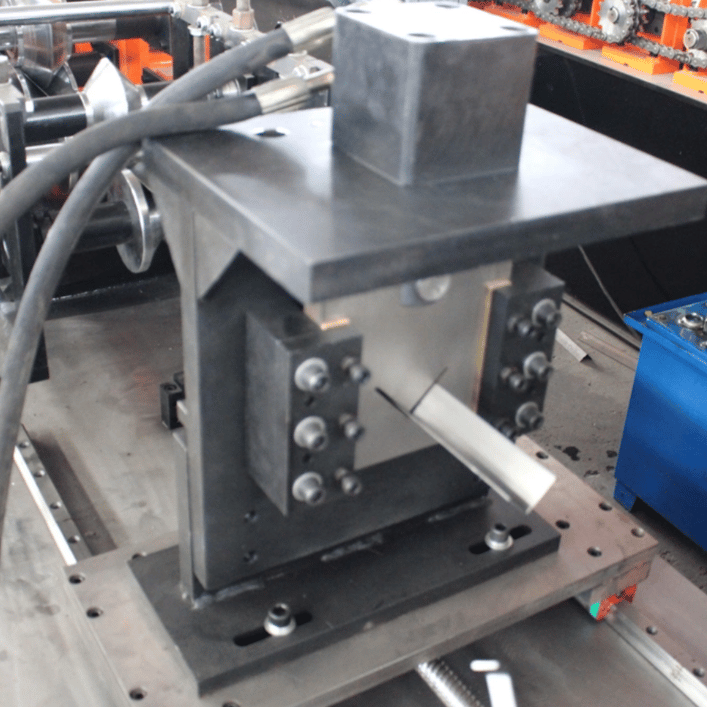

(10). Material of cutting blade: Cr12MoV with hard treatment, HRC52-68;

(11). Driving mode: single chain 1 inch;

(12). Forming speed: 15-20m/min;

(13). Power supply: 380V, 50HZ, 3 PHASES;

(14). Dimensions of forming machine: 5500mm*700mm*700mm (approximate)
