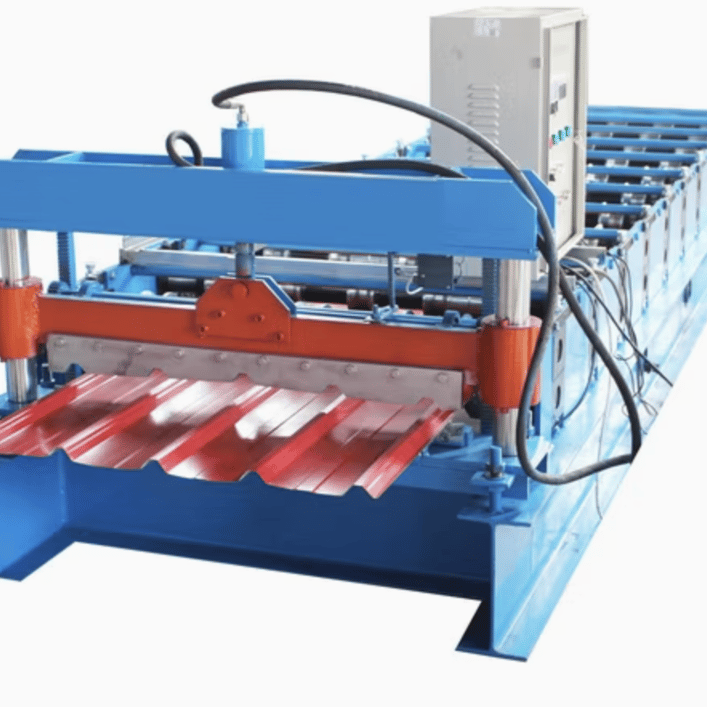

Roofing Roll Forming Machine in Afghanistan

A roofing roll forming machine is a high-performance piece of industrial equipment designed to manufacture metal roofing panels. The machine shapes metal sheets into specific roofing profiles by feeding the material through a series of precisely positioned rollers, which press and form the metal into the desired profile. Roofing roll forming machines are widely used in the construction and manufacturing industries due to their ability to produce high-quality, durable roofing panels efficiently and consistently. They are essential for manufacturers seeking to provide roofing materials for residential, commercial, and industrial buildings.

Machine Description

Roofing roll forming machines are known for their versatility, enabling the production of various roofing profiles such as corrugated panels, standing seam panels, trapezoidal profiles, and more. The machine operates by passing flat metal sheets, typically aluminum, steel, or galvanized steel, through multiple rollers. These rollers gradually bend the metal into the desired profile, creating panels that are lightweight, weather-resistant, and easy to install. This machine is automated, controlled by a PLC (Programmable Logic Controller) system that ensures precision in profile shaping, consistent speed, and efficiency.

Specifications

• Roller Materials: High-quality steel, often coated for corrosion resistance, ensuring durability and long life.
• Frame Size: Robust steel frame designed to handle continuous production with minimal vibration.
• Motors: Typically powered by electric motors with variable speed options to adjust the production rate as needed.
• PLC System: Allows for easy control of the machine’s settings, including profile type, sheet length, and speed adjustments.
• Hydraulic Cutting System: Ensures precise cutting of panels to the required length without causing damage or deformities.
• Machine Speed: Ranges between 10-40 meters per minute, depending on the profile and material thickness.
• Safety Guards & Enclosures: Equipped with protective covers around moving parts to ensure operator safety.
• Profile Width: Customizable according to client specifications, typically ranging from 600mm to 1200mm.
• Thickness Capacity: Can handle material thicknesses from 0.2mm to 1.2mm, depending on the metal type and profile requirements.

Additional Features and Options

• Uncoilers and Recoilers: Handle and manage metal coils before and after the forming process.
• Hydraulic Presses: For added functions such as punching or embossing.
• Stackers: Automatically stack finished roofing panels for easy collection and packaging.
• Remote PLC Control Systems: Allow operators to monitor and control the machine remotely.
• Leveling Systems: Ensure that the metal sheet is straightened before forming, resulting in precise and uniform profiles.

Setup and Installation Process

1. Site Preparation: Choose a location with adequate space and power supply for the machine.
2. Machine Placement and Leveling: The machine is carefully placed on a stable surface and leveled for smooth operation.
3. Connecting Power Supply: Connect to the required power source, often 380V or 440V three-phase electricity.
4. Testing and Calibration: Run tests to calibrate the machine settings for the desired profile, ensuring accuracy and quality.
5. Operator Training: Operators should be trained on machine settings, safety protocols, and maintenance procedures.

Maintenance Requirements

• Regular Cleaning: Clean the rollers and frame to remove dust, metal shavings, or residues that can affect the machine’s performance.
• Lubrication: Apply lubrication to the rollers, cutting systems, and moving parts periodically to reduce wear and friction.
• Electrical Inspection: Check the wiring, PLC system, and electrical connections to ensure they are in good condition.
• Roller Alignment: Inspect roller alignment and adjust as needed to maintain precise profiling.
• Hydraulic System Checks: Regularly inspect hydraulic systems, including pumps and hoses, to prevent leaks and ensure efficient cutting.

Question and Answer Section

Q1: What types of roofing profiles can be produced with a roofing roll forming machine?

A1: Roofing roll forming machines can produce various profiles such as corrugated panels, trapezoidal profiles, and standing seam panels. Custom tooling can be added to produce additional profiles as needed.

Q2: What materials can be used with a roofing roll forming machine?

A2: Common materials include galvanized steel, aluminum, stainless steel, and other metals with thicknesses typically ranging from 0.2mm to 1.2mm. The choice of material depends on the end-use requirements of the roofing panels.

Q3: How fast can a roofing roll forming machine operate?

A3: The production speed varies, typically between 10 to 40 meters per minute, depending on factors like the complexity of the profile, material thickness, and machine configuration.

Q4: What are the key factors to consider when buying a roofing roll forming machine?

A4: Buyers should consider the machine’s profile compatibility, thickness capacity, speed, and whether it meets the specific power requirements. Additionally, evaluating after-sales support, maintenance needs, and available optional features is essential.

Q5: How is a roofing roll forming machine maintained?

A5: Regular maintenance includes cleaning the machine, lubricating moving parts, inspecting the electrical and hydraulic systems, and checking roller alignment. Proper maintenance ensures optimal performance and prolongs machine life.

Q6: Can a roofing roll forming machine be controlled remotely?

A6: Yes, many machines come with a remote PLC control option, allowing operators to monitor and adjust the machine settings from a distance, which adds flexibility and enhances safety.

Q7: Are safety features included in roofing roll forming machines?

A7: Yes, these machines typically come with safety guards and enclosures around moving parts to protect operators from injury. Additionally, emergency stop functions are often integrated for quick response in case of issues.

Q8: What additional equipment is required with a roofing roll forming machine?

A8: Additional equipment may include uncoilers, stackers, and leveling systems to handle the metal coils, stack finished panels, and ensure straight feeding of material. These accessories enhance the efficiency and automation of the production process.
