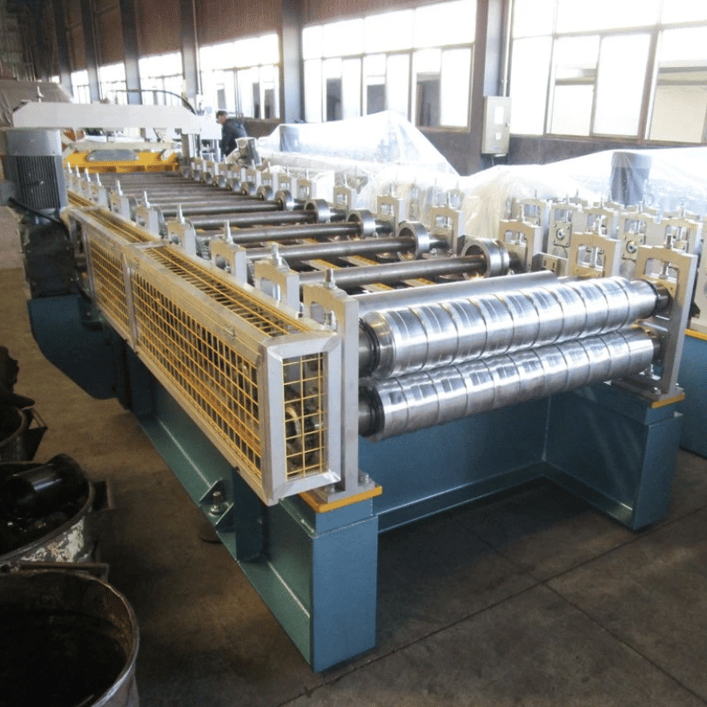

Sandwich Panel Roll Forming Machine in Canada
- Condition
- New
- Supplier
- Roll Forming Machines Canada
- Country
- Canada
- Listing ID
- 9240
Request a Quote
To express an interest in this machine please submit the form below.
| Item | Specification | |
Raw Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness(mm) | 0.3-0.55mm | |
| Roller material | 45# steel , coated with Chrome | |
| Shaft for rollers | Solid shaft with 55mm, processed with cylindrical grinder | |
| Forming speed(m/min) | About 30-35 | |
| Speed adjusting mode | Mitsubishi frequency transformer | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mov. | |
| Length measurement | Nemicon Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 7.5KW | |
| Total power(kw) | 9.7KW | |
| Process flow | Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table | |
