Sheet Metal Roll Forming Machine USA

•
•
•

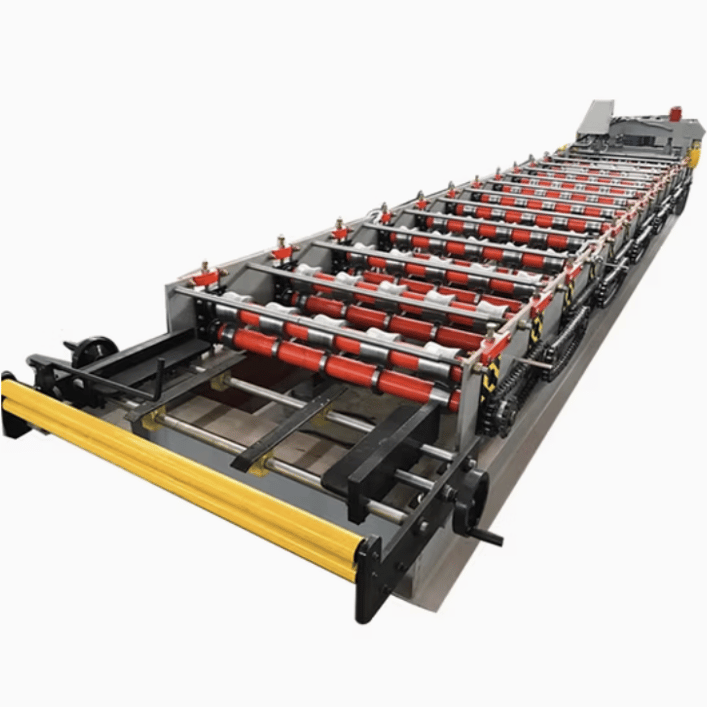

A sheet metal roll forming machine is a specialized piece of equipment used in manufacturing industries to produce precise, continuous lengths of sheet metal profiles through the process of roll forming. These machines are essential for creating a wide range of profiles used in construction, automotive, and industrial applications, such as roofing panels, siding, gutters, door frames, and more.

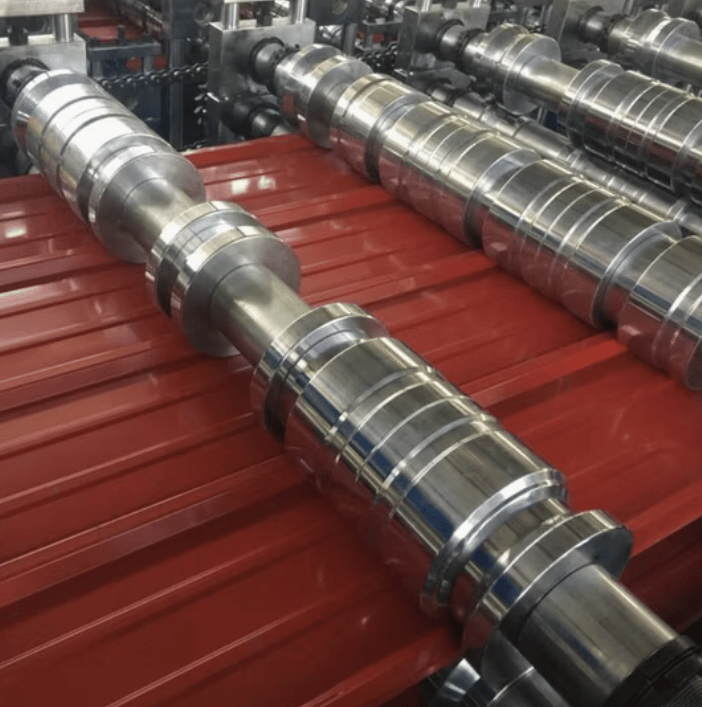

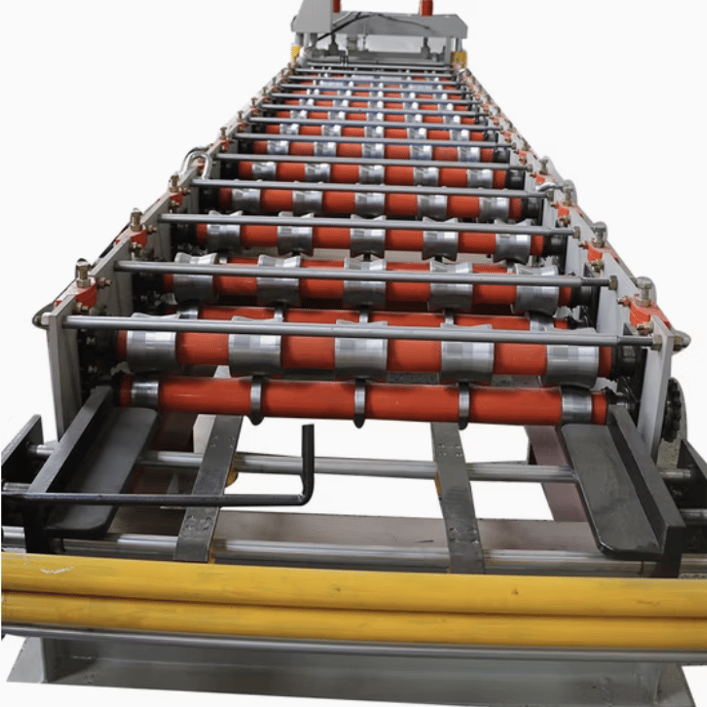

The roll forming process involves feeding a coil of sheet metal into the machine, where it passes through a series of rollers. Each set of rollers progressively shapes the metal until the desired profile is achieved. These machines are known for their high-speed operation, accuracy, and ability to produce complex shapes with consistent quality.

Specifications

Below are the typical specifications for a sheet metal roll forming machine, tailored to meet the needs of the U.S. market:

• Material Capability:
  • Material: Galvanized steel, aluminum, stainless steel, copper, pre-painted steel.
  • Thickness: 0.3 mm to 1.2 mm (customizable depending on application).
• Machine Structure:
  • Frame: Heavy-duty steel frame with anti-corrosion coating.
  • Rollers: High-grade 45# steel or GCr15 with hard chrome plating for durability.
• Forming Stations:
  • Number of Rollers: 10–24 stations (depending on the profile).
  • Roller Shaft Diameter: 50–70 mm.
  • Forming Accuracy: ±0.5 mm.
• Driving System:
  • Motor Type: Servo motors or induction motors.
  • Power: 7.5 kW to 15 kW (depending on the application).
• Cutting System:
  • Cutting Type: Hydraulic or servo cutting system.
  • Blade Material: Cr12Mov steel with heat treatment.
• Control System:
  • PLC Control: User-friendly touch-screen interface.
  • Automation Level: Fully automated with manual override options.
  • Sensors: High-precision sensors for material feeding and profile accuracy.
• Speed:
  • Forming Speed: 15–30 meters per minute (can vary based on the profile).
• Additional Features:
  • Safety Guards: Comprehensive enclosures to ensure operator safety.
  • Noise Level: Below 75 dB.
  • Coil Capacity: 5–10 tons with optional hydraulic decoiler.

Optional Extras

• Stackers: Automatic stackers for finished products.
• Uncoilers & Recoilers: Hydraulic or manual options for smooth coil handling.
• Pre-Punching and Notching Systems: For profiles requiring holes or custom designs.
• Remote Control: For convenient operation and troubleshooting.

Key Applications

• Roofing and cladding panels.
• HVAC ducting.
• Automotive trims.
• Industrial shelving.
• Door and window frames.

Question and Answer Section

Q1: What types of sheet metal can this machine process?
A: The machine is designed to handle various materials, including galvanized steel, aluminum, stainless steel, copper, and pre-painted steel. The material thickness can range from 0.3 mm to 1.2 mm, depending on the specific model.

Q2: Can I customize the profile design?
A: Yes, most manufacturers offer customization options. You can provide a profile drawing or sketch, and the machine will be tailored to produce your desired design.

Q3: How much space is required for installation?
A: A typical sheet metal roll forming machine requires a workspace of approximately 10–20 meters in length and 2–4 meters in width, depending on the machine size.

Q4: Is the machine suitable for high-volume production?
A: Absolutely. These machines are engineered for high-speed operation and can produce up to 30 meters of profile per minute, making them ideal for high-volume production.

Q5: What is the average lifespan of the rollers?
A: The rollers are made from hardened steel and, with proper maintenance, can last 10–15 years or longer.

Q6: How can I ensure compliance with U.S. safety standards?
A: Machines sold in the U.S. typically comply with OSHA and ANSI safety standards. Look for safety features such as emergency stops, safety guards, and noise reduction systems.

Q7: How is the machine powered?
A: Most roll forming machines in the U.S. market are designed to operate on a 3-phase, 220V/380V, 50/60 Hz power supply.

Q8: What maintenance is required?
A: Regular maintenance includes lubricating moving parts, checking roller alignment, inspecting electrical connections, and replacing worn-out components. Following the manufacturer's maintenance schedule will ensure optimal performance.

Q9: Can the machine be operated remotely?
A: Yes, many modern machines come with remote PLC systems, allowing you to control and monitor operations remotely.

Q10: What is the typical lead time for delivery in the USA?
A: Depending on customization requirements and shipping distance, the lead time ranges from 6 to 12 weeks.

Conclusion

A sheet metal roll forming machine is a robust and versatile solution for producing high-quality sheet metal profiles. With features like precision rollers, high-speed operation, and user-friendly controls, these machines are indispensable in industries across the USA. By understanding the specifications, capabilities, and maintenance requirements, businesses can make informed decisions when investing in this equipment.
