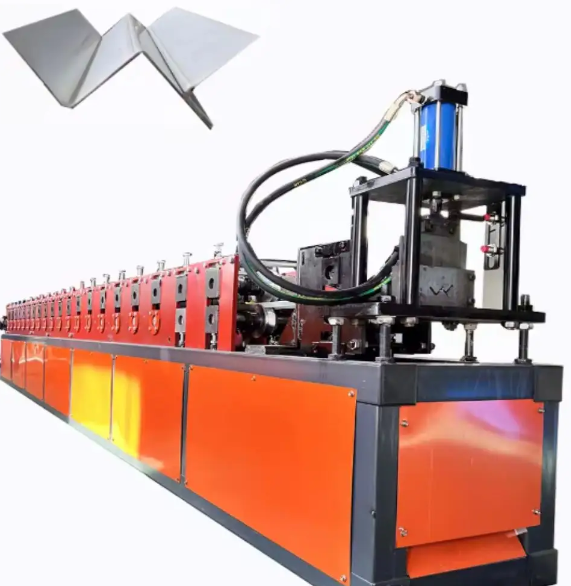

Steel Frame Purlin CZ Roll Forming Machine with Chromed Hydraulic Cutting in Wuxi, China
| Working speed | 10-15 m/min（Shear time is not included） |
| Pressed plate thickness | 0.3-1mm |
| Control mode | Panasonic PLC |
| Discharging rack | 3T manual decoiler |
| Number of molding passes | 12 lanes |
| Roll material | After finishing, the surface of 45# steel is chrome plated. |
| Shaft material and diameter 轴材质及轴径 |
45# Steel finishing，Shaft diameter is￠85mm |
| Main engine power | 5.5kw |
| Power of hydraulic station | 4kw |
| Hydraulic pressure | 12Mpa |

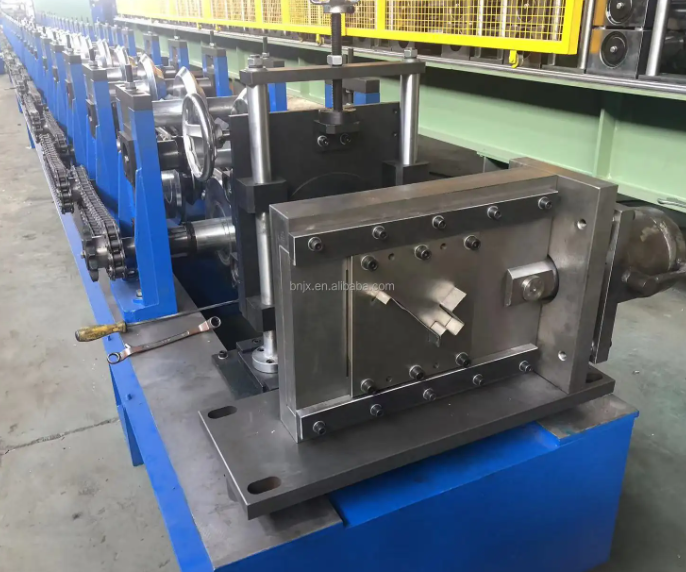

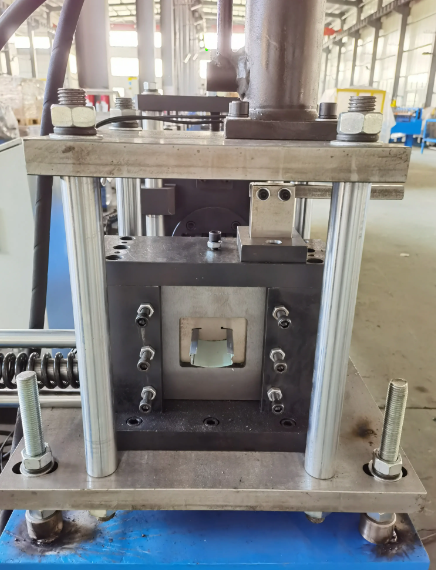

| Cutting mode | Shear after forming |
| Scissors material | Cr12Mov， quench HRC 58-62℃ |
| Length tolerance | 3m±1.5mm |
| Voltage | 380V, 50HZ,3 phase（According to customer requirements can be adjusted） |
| Transmission mode | 1.0 inch single row chain |
| Equipment form | slab-wall structure |
| Equipment color | Company color |
| Equipment size | L*W*H— 8m*1.5m*1.2m |
| Date of delivery | 80 days |
| Payment method | 30% advance charge，70% pay off on delivery |
