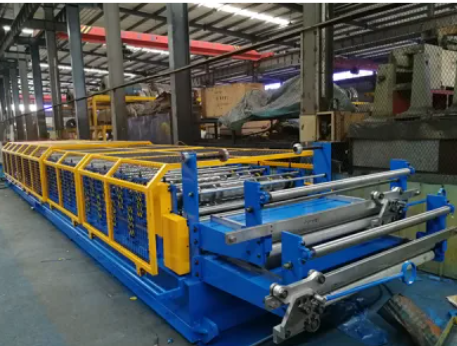

Trapezoidal Metal Sheet Roll Forming Machine in Xiamen, China

Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.

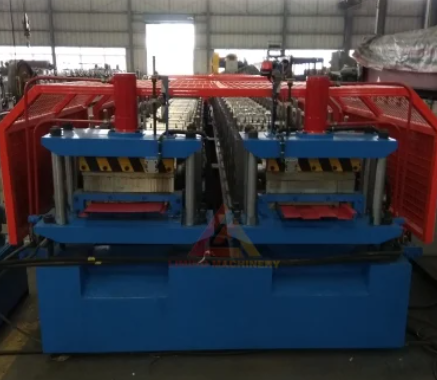

C. Dual Cold Rolling Mills

Gear/Sprocket driving; Dual Levelling,18-step to form

Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated

Shafts Diameter=ф95mm, Precision Machined, fine Polished

Main motor =5.5W, Frequency speed control

Manual Clutch to switch the driven system

Max. Line speed of roll former: Approx. 15m/min

Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside

D. Hydraulic Cutting Device

Stop to cut, Post cut, No blanking cut

Cutting tool material: Cr12, Heat treatment

Hydraulic group, Pump motor =5.5KW
