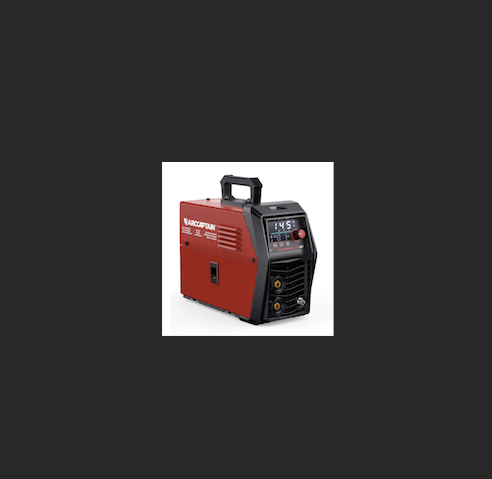

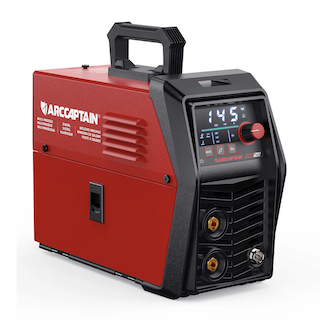

View more details here Arccaptain iControl MIG145 Pro Portable 3 in 1 Flux Core Welder
New $229.00 Location USA
The MIG145 Pro Flux Core Welder is a versatile machine that supports MIG, MMA, and Lift TIG welding modes, making it suitable for a wide range of tasks from DIY home projects to professional workshop use.
Its innovative SYN feature includes a plate thickness selection, automatically adjusting the wire feed speed for optimal performance based on material thickness, making welding easier for both beginners and professionals.
With an intuitive LED screen for simple navigation and parameter adjustments, the MIG145 Pro enhances user experience and productivity.
Its compact, lightweight design ensures easy portability, while the robust construction, detachable torch, and built-in safety features like VRD (Voltage Reduction Device) offer long-lasting, secure use.
Technical details
| Model | MIG145 Pro |
Rated input voltage | Single-phase AC120V 50Hz/60Hz |
Rated input power (KVA) | 5 |
Welding current range(MIG,MMA,TIG) | 40-145A(MIG) 20-145A(MMA) 20-145A(TIG) |
Welding voltage range (MIG,MMA,TIG) | 16-20V (MIG) 20.8-24.8V(MMA) 10.8V-14.8V (TIG) |
Rated duty cycle① | 60% |
No-load voltage (V) | U0=64；Ur=14.5 |
Applicable electrode(in) | 0.030/0.035/0.040 |
Housing protection grade | IP21S |
Insulation grade | H |
Cooling mode | Air cooling |
Overall efficiency | 85% |
Dimension | L12.8in x 5.7in x 9.7in |
In the Box
