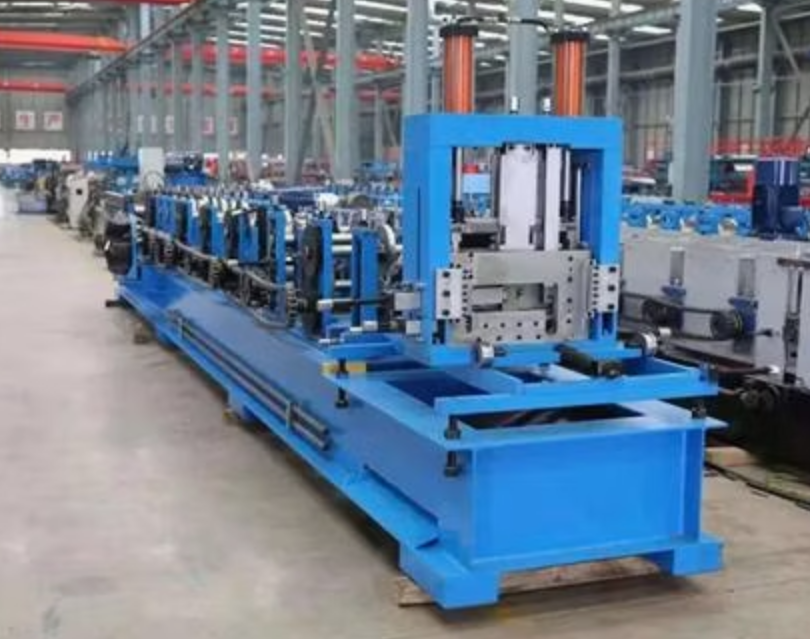

Cee Purlin Roll Forming Machine – United Arab Emirates
The Cee Purlin Roll Forming Machine is an advanced and fully automated solution for producing high-strength, precision-formed Cee (C) purlins used in steel structures across the construction, infrastructure, and industrial building sectors in the UAE. Engineered for speed, flexibility, and durability, this machine is custom-built to produce a wide range of C purlin profiles based on your specific requirements.
Whether you are based in Abu Dhabi, Dubai, Sharjah, or anywhere across the UAE, this machine offers unmatched value for companies manufacturing steel framing components, pre-engineered buildings (PEBs), warehouse and industrial building structures, solar mounting systems, and other metal building systems.
All machines are new, custom-built, and delivered directly across the UAE, including Abu Dhabi, Dubai, and Sharjah, from our trusted manufacturing partner. They are built to meet your specific profile size, gauge range, and capacity requirements, ensuring maximum production efficiency and compatibility.
| Specification | Detail |
|---|---|
| Machine Type | Cee Purlin Roll Forming Machine |
| Production Speed | 10–20 meters/min (standard); up to 30 m/min with high-speed upgrades |
| Material Thickness Range | 1.2 mm – 3.2 mm |
| Material Width Range | 100 mm – 600 mm |
| Material Types | Galvanized steel, cold-rolled steel, black steel, HR/CR steel |
| Material Yield Strength | Up to 550 MPa |
| Roller Material | GCr15 (high-grade bearing steel) |
| Roller Surface Treatment | Hard chrome plated (for anti-wear and extended life) |
| Number of Forming Stations | 12 – 20 (based on profile design) |
| Roller Shaft Diameter | 75 mm |
| Shaft Material | 40Cr (tempered and quenched for hardness and wear resistance) |
| Main Drive Type | Gearbox drive system |
| Power (UAE Specification) | 380V / 50Hz / 3-Phase |
| Motor Power | 15 kW (customizable based on profile size and speed) |
| Cutting Method | Hydraulic post-cut |
| Blade Material | Cr12MoV (heat-treated for precision and durability) |
| Control Type | PLC control with touch screen HMI (brands such as Siemens or Delta) |
| Operating Mode | Fully automatic with manual override |
| De-coiling System | Manual or hydraulic uncoiler (3T–10T options available) |
| Punching/Notching System | Optional hydraulic punching unit with custom tooling |
| Machine Frame | Welded steel frame, stress-relieved |
| Thickness of Frame Steel | 18–25 mm |
| Profile Shape | Cee Purlin (C-shape) |
| Profile Width and Depth | Customizable: 80 mm – 300 mm web, 40 mm – 80 mm flange |
| Length Tolerance | ±1.0 mm |
| Safety Features | Protective covers, emergency stop, overload protection system |
This Cee purlin roll forming machine is an essential piece of equipment in the steel frame building industry, supporting key sectors such as:
Pre-engineered building (PEB) construction
Industrial warehouses and logistic hubs
Carports, awnings, and shelters
Solar panel mounting frames
Cold storage buildings
Agricultural steel structures
Residential and commercial steel framing
Given the UAE's demand for fast-paced construction, infrastructure growth, and renewable energy development (particularly solar), this machine serves as a core asset for fabricators and general contractors.
Q: Can the machine be customized for different profile sizes?
A: Yes, the machine is custom-built to your required Cee purlin profile sizes and gauges. Just send us your profile drawings and material specifications for an accurate quote.
Q: Is operator training included with the machine?
A: We provide full setup support, training, and remote assistance during commissioning. On-site support in the UAE is also available upon request.
Q: What is the delivery time to the UAE?
A: Standard production and shipping time is between 45–65 days depending on customization and optional extras.
Q: Can I produce both C and Z purlins on the same machine?
A: A combined C/Z purlin roll forming machine is available if needed. Please specify if dual-profile production is required.
Q: What optional extras are available?
A: Optional extras include automatic stackers, punching units, coil cars, hydraulic uncoilers, remote diagnostics systems, and inverter speed control systems.
Q: What after-sales support is offered in the UAE?
A: One-year warranty included. Machine Matcher also provides maintenance packages, spare parts support, and technical assistance from our regional service partners.
Prices start from: Based on base configuration
Final pricing: Determined by profile complexity, thickness range, optional systems, and automation level
For a customized quotation, please send your profile drawing, material specs, and production requirements to:
[email protected]
All machines are new and built to your specifications
Delivery and support throughout the UAE, including Abu Dhabi, Dubai, Sharjah
Backed by expert service teams in the UK and USA
Industry-specific guidance and consultation
Global delivery with localized voltage, motor standards, and safety compliance
