Most Popular Roll Forming Machines in Mali

Roll forming machines are becoming an essential part of Mali's growing construction and manufacturing industries. As the demand for infrastructure, metal roofing, and steel-framed buildings increases, so does the need for reliable and efficient roll forming equipment. This blog explores the most popular roll forming machines in Mali, their specifications, the profiles they produce, the industries using them, areas of demand, maintenance tips, machine costs, manufacturers, setup and operation, and how Machine Matcher can help buyers find the right machine.

Popular Types of Roll Forming Machines in Mali

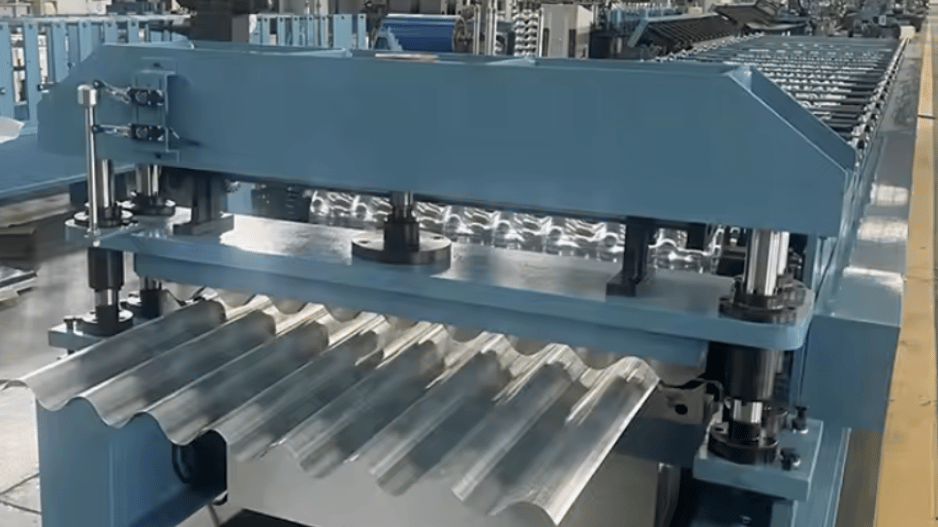

1. Roofing Sheet Roll Forming Machines
These are widely used in Mali for manufacturing corrugated and trapezoidal metal roofing sheets, commonly used in residential and commercial construction.

Specifications:

• Roller material: 45# steel with hard chrome coating
• Frame: 300 H-beam welded structure
• Drive system: Chain drive or gearbox drive
• Cutting system: Hydraulic cutting with Cr12 mold steel blades
• PLC: Siemens or Delta PLC control
• Speed: 10–15m/min standard; can go up to 25m/min with upgraded motors

Profiles:

• Corrugated 762/914/1000mm
• Trapezoidal IBR profiles
• Ribbed roofing panels

2. C and Z Purlin Roll Forming Machines
Used for producing structural purlins for steel-framed buildings.

Specifications:

• Roller material: GCr15 steel with hardening treatment
• Frame: Welded steel structure
• Drive system: Gearbox-driven or motor-driven
• Cutting: Hydraulic post-cutting
• Width adjustment: Manual or automatic
• Size range: C100–C300 and Z120–Z300

Profiles:

• Light steel framing
• Purlins for industrial warehouses and hangars

3. Door Frame Roll Forming Machines
Utilized by companies producing steel security doors, industrial doors, and storage doors.

Specifications:

• Rollers: 45# steel or Cr12MoV
• Frame: Heavy-duty steel frame
• Motors: 7.5kW and above
• Cutting: Flying shear or hydraulic
• Additional punching: Inline hydraulic punching

Profiles:

• Jambs, headers, and steel door trims

4. Ridge Cap Roll Forming Machines
These machines create ridge caps for metal roofing systems.

Specifications:

• Roller stations: 10–18 steps
• Cutting blade: Hydraulic with sensor alignment
• Control system: Touch screen HMI
• Speed: Up to 20m/min

Profiles:

• Angular ridge caps
• Curved ridge caps

Industries Using Roll Forming Machines in Mali

1. Construction Companies: The booming real estate and infrastructure sectors are the largest users of roofing and purlin machines.
2. Manufacturers of Pre-Engineered Buildings (PEBs): Use C and Z purlin machines and decking machines.
3. Metal Fabricators: Operate smaller roll formers for trim, ridge caps, and door frames.
4. Agricultural Sector: Uses machines to produce metal sheds and greenhouses.
5. Government and NGO Projects: Often require roofing and framing machines for schools, hospitals, and housing developments.

Key Cities and Areas Where Machines Are Used

• Bamako: The capital city is the hub for construction and metal fabrication companies.
• Sikasso: A growing city with agricultural and industrial development.
• Kayes: Demand for warehouse and infrastructure development.
• Ségou and Mopti: Regions seeing rural development projects involving roofing and structural steel.

Maintenance Requirements for Roll Forming Machines

• Daily Checks: Lubricate bearings, inspect rollers for wear, and clean the machine.
• Weekly Maintenance: Check gearbox oil, clean filters, and tighten chains.
• Monthly Inspection: Calibrate sensors, inspect hydraulic fluid, and align cutting blades.
• Annual Overhaul: Replace worn rollers, test motor function, and inspect the PLC system.

Regular maintenance helps extend machine life, improve product quality, and reduce downtime.

Price Range: Low and High Cost of Machines

• Entry-Level Machines (Manual or semi-automatic):
  • Price: USD 8,000 – USD 20,000
  • Use: Small workshops or low production needs
• Mid-Range Machines (Standard full automatic systems):
  • Price: USD 20,000 – USD 40,000
  • Use: Medium-sized operations with standard output
• High-End Machines (Fully automatic, servo systems, high-speed lines):
  • Price: USD 50,000 – USD 100,000+
  • Use: Industrial manufacturers and large-scale construction suppliers

Main Manufacturers and Suppliers in Mali

Most machines used in Mali are imported from China, Turkey, and India. There are few local manufacturers, but local agents or resellers offer installation and support.

Some local fabricators assemble machines from imported parts, but for full-service solutions, buyers turn to international suppliers like those available through Machine Matcher.

Setup and Operation of Roll Forming Machines

Setup Steps:

1. Place machine on level foundation
2. Connect electrical and hydraulic lines
3. Install coil uncoiler and feeding system
4. Load coil and thread material through rollers
5. Program the PLC with profile length and quantity
6. Test run and calibrate alignment

Operation:

• Start machine via HMI control
• Material feeds through rollers
• Profile is formed and cut automatically
• Stacked manually or with optional stackers

Safety measures such as guards, emergency stops, and operator training are crucial for safe operation.

Questions and Answers

Q: Can roll forming machines be used for different profiles?
A: Some machines can be customized or have adjustable tooling, but most are designed for a specific profile to ensure accuracy.

Q: How long does delivery take to Mali?
A: Depending on the country of origin, delivery can take 4 to 8 weeks including shipping and customs clearance.

Q: Is technical support available in Mali?
A: Yes, many suppliers offer remote support or partner with local technicians for installation and service.

Q: What power supply is required?
A: Most machines require a 3-phase 380V system. Step-up transformers are used in areas with different supply.

Q: Do I need a foundation for the machine?
A: Yes, especially for heavy-duty machines. A reinforced concrete base ensures alignment and stability.

Why Machine Matcher is Your Best Option in Mali

At Machine Matcher, we connect you with the right roll forming machines to suit your exact profile, production volume, and budget needs. Whether you're building metal roofs in Bamako, producing purlins in Sikasso, or manufacturing steel doors in Kayes, we help you:

• Choose between new and used machines
• Match machine specifications to your profile
• Compare pricing across multiple manufacturers
• Arrange international shipping and customs documentation
• Access remote setup support and local technicians

Contact Machine Matcher
Speak to one of our roll forming machine experts today:
UK: +44 20 335 56554
USA: +1 407 559 7948
Europe: +32 460 24 13 95
WhatsApp: +44 20 335 56554
Email: [email protected]

Let us help you make the best investment for your business and ensure you receive the right roll forming machine for Mali's industrial demands.
