PBR Metal Roof Panels

PBR Metal Roof Panels: Everything You Need to Know

When it comes to roofing, PBR metal roof panels (Panel Bearing Rib) have become a popular choice across various industries, including commercial, agricultural, and residential construction. Their durability, affordability, and aesthetic appeal make them a top contender for any roofing project. In this comprehensive guide, we’ll cover what PBR metal roofing is, how to install it, pricing details, and why it might be the right choice for your project.

What is PBR Metal Roofing?

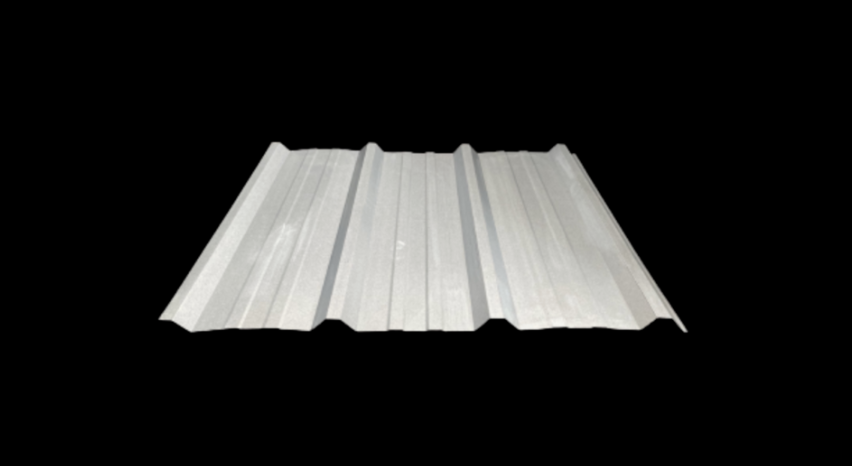

PBR metal roof panels are a type of metal roofing system designed with a special ribbed profile. The "PBR" stands for "Panel Bearing Rib," which refers to the raised rib at the edge of each panel that overlaps with adjacent panels to provide structural integrity and weather resistance.

Key Features:

  • Overlapping Design: The extra overlap ensures better waterproofing, making it ideal for low-slope roofs.
  • Material Composition: Typically made from galvanized or Galvalume steel, these panels often come with protective coatings like PVDF (Kynar 500) or SMP to enhance durability and resist corrosion.
  • Panel Dimensions: Common widths range from 36 inches to 48 inches, with lengths customizable to fit specific roofing projects.
  • Gauge Options: Usually available in 26-gauge or 24-gauge thicknesses, offering strength and resilience.
  • Common Uses:
    • Agricultural buildings like barns and sheds.
    • Industrial warehouses and factories.
    • Residential homes with modern or rustic designs.

Advantages:

  • Weather Resistance: Excellent protection against rain, snow, and UV rays.
  • Affordability: Cost-effective compared to other roofing materials like tiles or shingles.
  • Low Maintenance: Requires minimal upkeep, with a lifespan of 40–50 years.
  • Energy Efficiency: Reflective coatings reduce heat absorption, lowering cooling costs.

How to Install PBR Metal Roofing

Installing PBR metal roofing is relatively straightforward but requires precision to ensure durability and aesthetics. Here’s a detailed step-by-step guide:

  1. Preparation:
    • Gather Materials: PBR panels, screws, metal flashing, ridge caps, sealant, and a drill.
    • Prepare the Roof Decking: Ensure the roof deck is clean, level, and structurally sound.
    • Underlayment: Install a waterproof underlayment to provide extra protection against leaks.
  2. Start from the Bottom Edge:
    • Begin at one corner of the roof.
    • Lay the first panel perpendicular to the roof edge, ensuring it overhangs slightly to direct water runoff.
  3. Align and Secure Panels:
    • Place the second panel overlapping the rib of the first panel.
    • Secure the panels with self-tapping screws, placing them on the rib crests to prevent water from pooling around fasteners.
    • Maintain consistent screw spacing, typically every 12 to 24 inches.
  4. Install Flashing and Ridge Caps:
    • Use flashing to seal edges and prevent water ingress.
    • Add ridge caps along the roof peak to ensure a weather-tight seal.
  5. Apply Sealant:
    • Use a high-quality sealant along overlaps and screw heads for additional waterproofing.
  6. Finishing Touches:
    • Inspect for gaps or loose screws.
    • Clean the roof surface to remove debris or metal shavings.

Safety Tips:

  • Always use fall protection equipment when working on a roof.
  • Work with a partner to handle large panels safely.
  • Follow manufacturer instructions for specific products.

PBR Metal Roofing Price

Understanding the cost of PBR metal roofing can help you plan your budget effectively.

Factors Affecting Price:

  • Material Type: Galvanized steel is typically cheaper than Galvalume or aluminum.
  • Gauge Thickness: Thicker panels (e.g., 24-gauge) are more expensive but offer better durability.
  • Coatings: Premium finishes like PVDF (Kynar 500) cost more than basic polyester coatings.
  • Location: Local labor rates and material availability can influence pricing.

Price Breakdown:

  1. Material Costs:
    • $2.50–$4.00 per square foot for PBR panels.
    • Premium panels with special coatings may cost up to $5.00 per square foot.
  2. Installation Costs:
    • $3.00–$6.00 per square foot, depending on labor rates and roof complexity.
  3. Total Cost:
    • $5.50–$10.00 per square foot, including materials and installation.

Cost-Saving Tips:

  • Purchase panels in bulk for larger projects.
  • Source materials locally to reduce shipping costs.
  • Opt for standard colors and finishes to avoid custom charges.

Why Choose PBR Metal Roof Panels?

PBR panels offer a unique combination of strength, style, and cost-efficiency. Here’s why they might be the perfect choice for your project:

  • Durability: Resistant to extreme weather conditions, including hail and high winds.
  • Versatility: Suitable for both low-slope and steep-slope roofs.
  • Eco-Friendly: Recyclable materials reduce environmental impact.
  • Customizable: Available in various colors, finishes, and lengths to match aesthetic and functional needs.

Conclusion

PBR metal roof panels are an excellent investment for anyone seeking a durable, cost-effective, and aesthetically pleasing roofing solution. Whether you’re covering a warehouse, barn, or home, PBR panels deliver unmatched value and performance.

With proper installation and maintenance, these panels can provide reliable service for decades, ensuring your structure remains protected and visually appealing. If you're considering PBR roofing for your next project, be sure to weigh the factors discussed here to make an informed decision.
