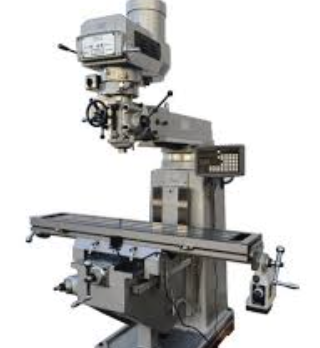

10" x 54" Metal Milling Machine in Ontario, Canada

• Taiwan mill
• “Meehanite” casting
• Turcite “B” coating on X/Y ways like CNC mills
• ISO 9001 certified
• Mechanical variable spindle speeds from 70-4,300 rpm
• Heavy duty 3 HP AC spindle motor, 3 phase (ideal for tapping jobs. Strongly recommend to take 3 phase mill with phase converter)
• Heavy Duty high grade castings
• Hardened & ground ways, square ways on knee and column
• Hardened & ground table and Ground table T-slots
• Precision ground ACME Leadscrews
• Chromed ground quill ( spindle )
• Chromed dials
• Adjustable ways
• Hand brake on mill head
• Tilting & rotating head
• Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
• One shot lube system
• front and rear rubber chip guards, and (1) manual draw bar
• Tool box kit and leveling pads
• Prewired power source 220V 3-Phase (optional 440V , 3 phase)
• One year industrial warranty for parts

A metal milling machine is a versatile tool used in manufacturing and machining processes to shape and cut metal workpieces. It operates by rotating a cutting tool, typically a milling cutter, against the workpiece to remove material and create precise dimensions and complex shapes. Here are some key aspects of metal milling machines:

Types of Metal Milling Machines

1. Vertical Milling Machines: Feature a vertically oriented spindle and are suitable for precision work, drilling, and finishing operations.
2. Horizontal Milling Machines: Have a horizontally oriented spindle and are typically used for larger workpieces and more aggressive cutting operations.
3. CNC Milling Machines: Computer Numerical Control (CNC) machines automate the milling process, allowing for high precision and repeatability in production.
4. Universal Milling Machines: Can perform various milling operations, with the ability to adjust the spindle's angle for complex tasks.

Key Features

• Cutting Tools: Various cutting tools can be used, such as end mills, face mills, and slab mills, depending on the desired finish and material.
• Table Size and Movement: Milling machines come with different table sizes and movement capabilities (X, Y, and Z axes) to accommodate various workpiece sizes.
• Feed Rate: The speed at which the workpiece is fed into the milling cutter can be adjusted for different materials and cutting operations.

Applications

• Metal Fabrication: Used in manufacturing components for machinery, automotive parts, and aerospace applications.
• Prototyping: Ideal for creating prototypes due to its precision and versatility.
• Repair and Maintenance: Useful for repairing parts and components by reshaping or remachining worn or damaged areas.

Benefits

• Precision and Accuracy: Offers high levels of precision, making it suitable for intricate designs and tight tolerances.
• Versatility: Capable of performing various operations, including drilling, tapping, and contouring.
• Efficiency: Reduces production time and material waste, especially when used in CNC configurations.

Considerations for Use

• Material Compatibility: Different milling machines and tools are suited for various materials, including aluminum, steel, and other alloys.
• Safety: Proper safety measures must be followed, including wearing protective gear and understanding machine operation protocols.

Metal milling machines are essential in modern manufacturing, providing the ability to produce complex metal parts with high precision.
