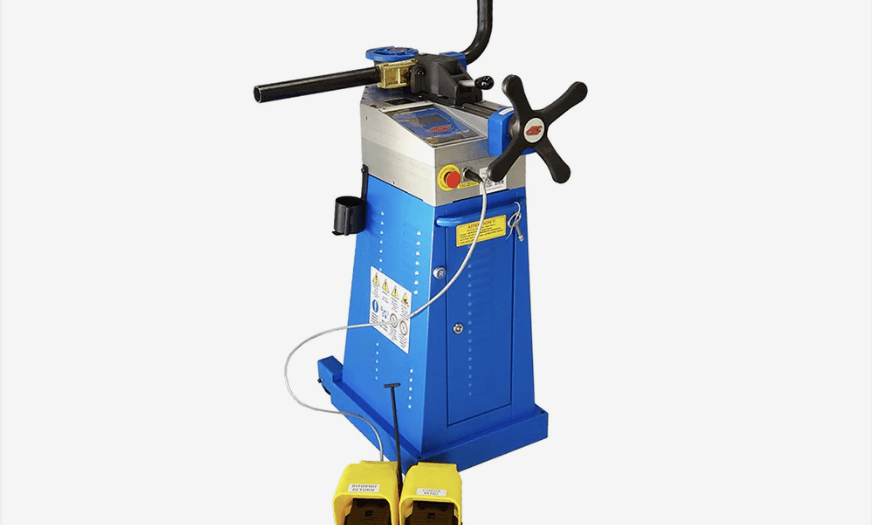

2" Rotary Draw Bender in Ontario, Canada

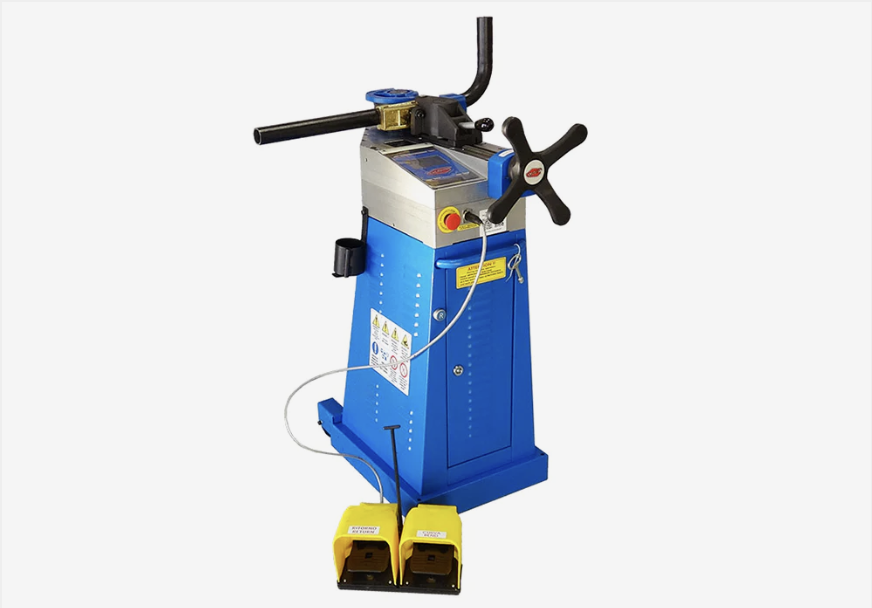

Ercolina SB48-TC Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

STANDARD FEATURES

• Bend to CLR as small as 2D
• Touch screen programming of bend angle with system diagnostics in multiple language capability
• Touch screen indicates bend angle, springback and bend speed for each angle within the program
• Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components
• Quick-change tooling system
• Material spring back compensation
• Foot pedal control for hands-free operation
• Counter bending die positioning monitored electronically for accuracy and repeatability
• Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
• Portable with base wheels and lift handle
• No hydraulic components
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity.

SPECIFICATIONS AND CAPACITIES

• Tube - (Min.) ¼″ (Max.) 2″
• Pipe - (Max.) 1½″ Sch. 40
• Centerline Radius - (Min.) 2 x Ø (Max.) 8⅞″
• Degree of Bend - 0-210°
• Bending Speed - Variable
• Unlimited programs with unlimited bends per program
• Material Positioning Table Available
• Voltage - 120V 1ph (3ph available)
• Length, Width, Height - 22½″ x 16¼″ x 39½″
• Weight- 300 lbs.
