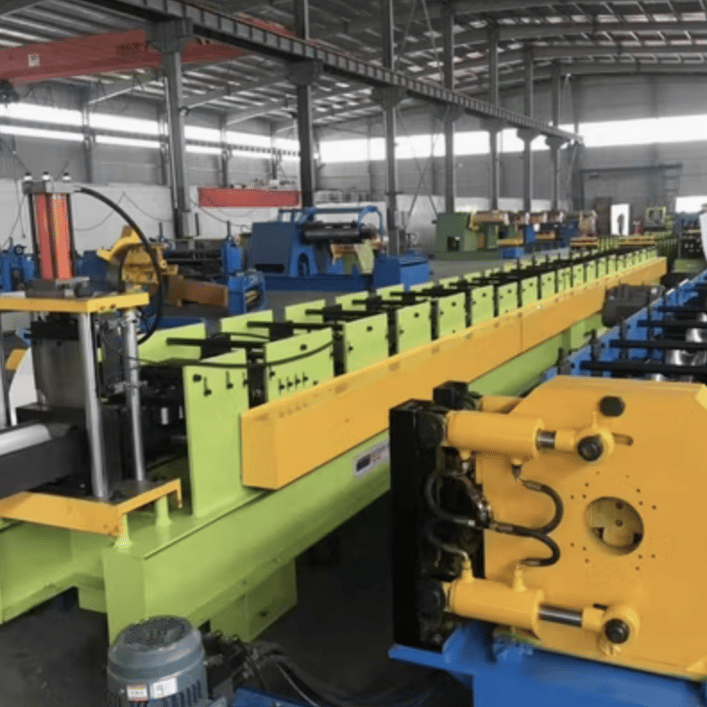

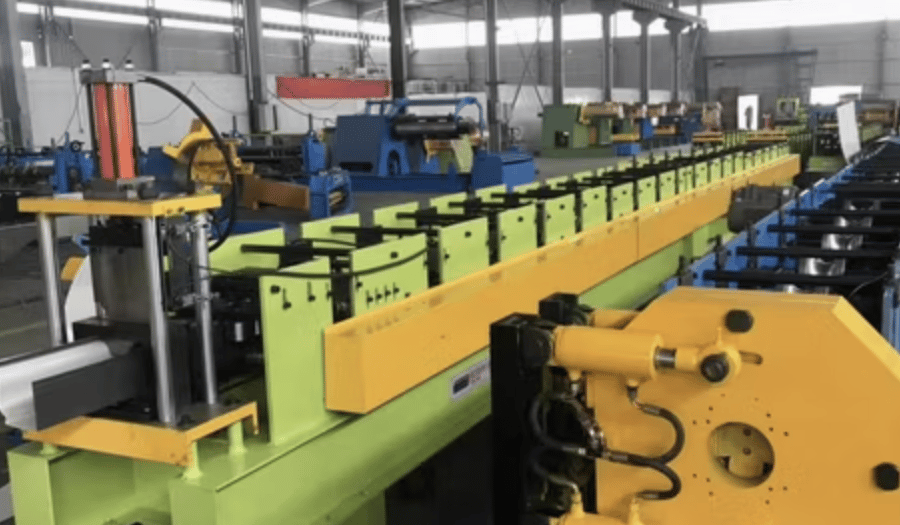

6 Inch Rain Gutter Roll Forming Machine in Trinidad and Tobago

A 6-inch rain gutter roll forming machine is designed specifically for the production of high-quality rain gutters, commonly used in residential and commercial buildings for effective rainwater management. This machine transforms flat metal coils into continuous gutter profiles with precise dimensions, durability, and aesthetic appeal. It is equipped with advanced components and customization options to produce gutters that meet diverse architectural requirements.

Machine Description

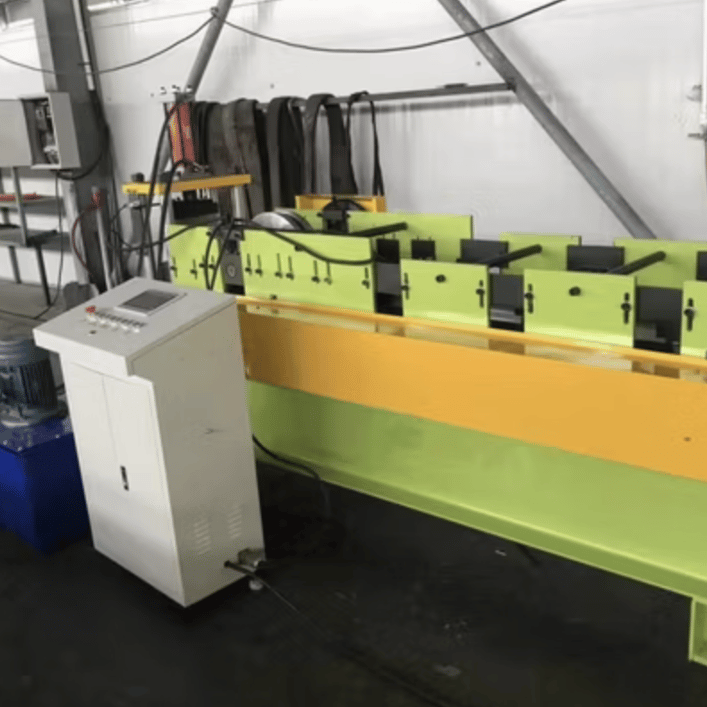

The 6-inch rain gutter roll forming machine operates through a series of roller stations that shape flat metal into the desired gutter profile. The machine typically incorporates a PLC control system, allowing for easy operation, monitoring, and adjustments. Operators can set production speeds, adjust the dimensions, and manage other parameters directly from the control panel. With its sturdy frame and high-quality rollers, the machine ensures consistency, reducing waste and maintaining high output quality. It can work with different materials, including aluminum, galvanized steel, and copper, to suit various environmental needs.

Specifications

1. Roller Material: High-grade steel, heat-treated for durability
2. Frame Size: 350 mm (customizable based on requirements)
3. Roller Stations: 12-16 stations for gradual forming of the gutter profile
4. Profile Width: 6 inches
5. Material Thickness: 0.5–1.2 mm (can vary based on material type)
6. Material Type: Compatible with aluminum, galvanized steel, and copper
7. Motor Power: 5–7.5 kW (varies by model and capacity)
8. Cutting System: Hydraulic cutting with programmable cutting lengths
9. Production Speed: 10–15 meters per minute
10. PLC Control System: Provides automatic length measurement and control
11. Power Supply: 380V / 50 Hz (customizable based on regional requirements)
12. Safety Features: Emergency stop button, safety covers, and enclosures around rollers
13. Optional Add-ons:

• Coil car tippers for easy material loading
• Remote PLC systems for automation and monitoring
• Uncoilers and recoilers for efficient handling of coil materials

Machine Operation

The machine begins by unwinding the metal coil, which is then fed into the forming rollers. As the coil passes through each station, the rollers gradually shape it into the final 6-inch gutter profile. The hydraulic cutting system at the end of the production line ensures clean cuts to the desired lengths, allowing for precision and minimal waste.

Maintenance Requirements

Regular maintenance is essential for the longevity and performance of the machine. Operators should clean and lubricate rollers, check hydraulic fluid levels, inspect the PLC system for any programming issues, and perform general inspections on the motor and power supply. A maintenance schedule with daily, weekly, and monthly tasks can ensure efficient machine operation and extend its lifespan.

Question and Answer

Q1: What materials can the 6-inch rain gutter roll forming machine process?

A1: The machine can process a variety of materials commonly used in gutter systems, including aluminum, galvanized steel, and copper. Each material has specific thickness requirements, generally ranging from 0.5 to 1.2 mm.

Q2: What is the average production speed of this machine?

A2: The machine has a production speed of approximately 10–15 meters per minute, depending on the material and profile specifications.

Q3: Does this machine support customization for different gutter profiles?

A3: Yes, the 6-inch gutter roll forming machine can be customized to produce various profiles and sizes to match different building requirements.

Q4: How is the machine controlled?

A4: The machine is equipped with a PLC control system that allows operators to set parameters such as length, speed, and cutting intervals. It also enables easy monitoring and adjustment for efficient operation.

Q5: Is this machine compatible with other equipment?

A5: Yes, it can be used with additional equipment like uncoilers, recoilers, and coil car tippers, which can improve productivity and streamline the manufacturing process.

Q6: What kind of power supply is required?

A6: The standard power supply for the machine is 380V / 50 Hz, but it can be adjusted to match regional requirements if necessary.

Q7: What are the maintenance needs for this machine?

A7: Regular maintenance involves cleaning and lubricating the rollers, checking the hydraulic fluid, inspecting the PLC system, and ensuring that the motor and safety features are in good condition. Maintenance routines can help maximize machine lifespan and production quality.

Q8: Is there a warranty for this machine?

A8: Most manufacturers offer a standard warranty period, typically ranging from one to two years, which covers major components. However, it’s best to check with the specific manufacturer for detailed warranty information.
