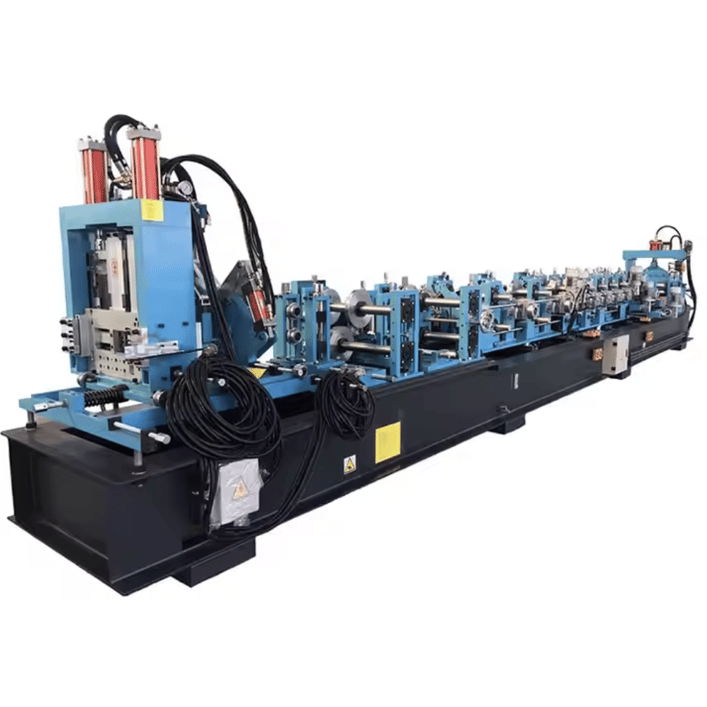

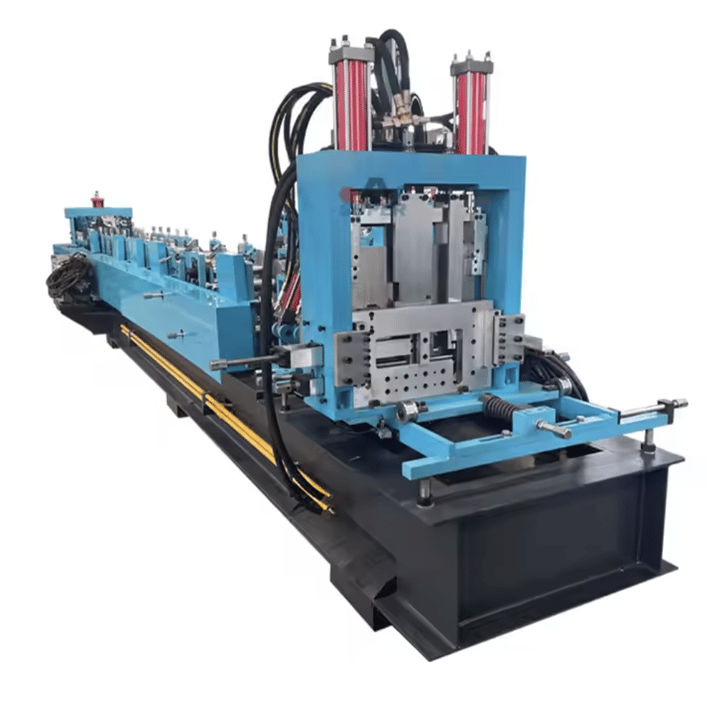

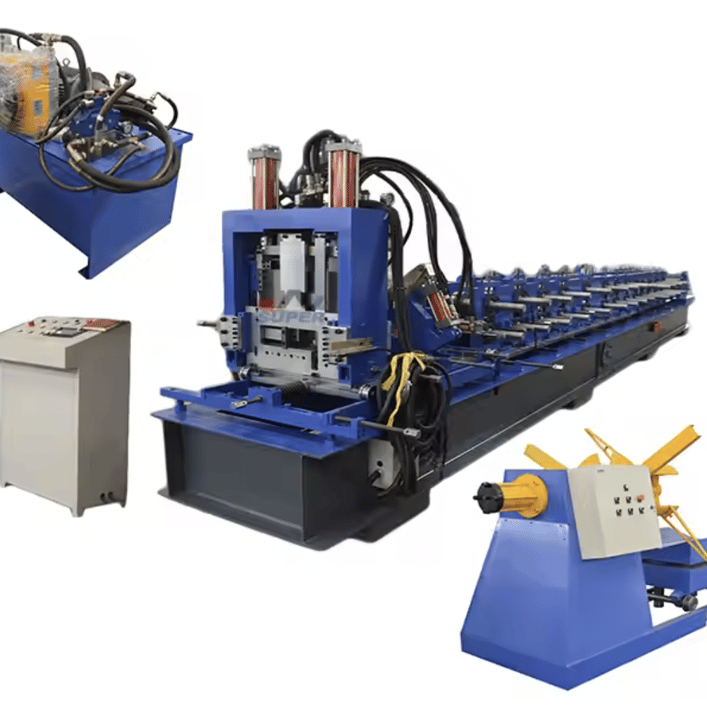

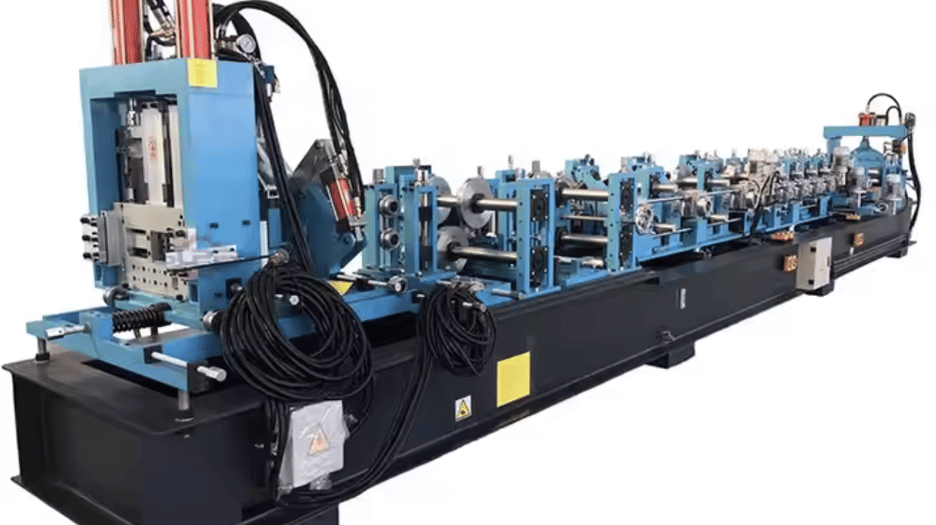

80-320 Automatic C/Z Purlin Quick Changed Roll Forming Machine in China
| Type | Steel Frame & Purlin Machine |
| Work Pressure | 16 MPA |
| Voltage | 380V 50HZ |
| Power | 37KW |
Other attributes
| Core Components | PLC, Engine, Motor, Pump |
| Place of Origin | Jiangsu, China |
| Weight | 13000 kg |
| Warranty | 1 Year |
| Key Selling Points | Easy to Operate |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Brand Name | SUPER |
| Dimension(L*W*H) | according to the model |
| Material Thickness | 1.5-3.0mm |
| Main Motor Power | 22kw |
| Hydraulic Pressure | 16Mpa |
| Control System | PLC control Panel |
| Shaft Material | 40Cr |
| Roller Material | Cr12 |
| Cutter Blade Material | Cr12 |
| Forming Speed | 16-20m/min |
| Roller Station | 14 Stations |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 30X30X30 cm |
| Single gross weight: | 30.000 kg |
Request a quote
We'll respond within one business day
Enquiring about 80-320 Automatic C/Z Purlin Quick Changed Roll Forming Machine in China
Prefer to talk?
Call us on +44 20 3355 6554 (UK) or +1 407 887 3237 (US) to speak directly with our sales engineers.
- Condition
- New
- Supplier
- Nantong Super Machinery Co., Ltd
- Country
- China
- Categories
- C & Z Purlin Cassette Changeover
- Listing ID
- 9509
