AG Series Gantry Plasma Cutting Machine (AG-400 / AG-500 / AG-600)

Jinfeng (Ningbo Jinfeng Welding & Cutting Machinery Manufacture): Cixi, Ningbo, China

CNC gantry cutting machine in three spans (4, 5, and 6m) for plasma cutting of steel and non-ferrous plate, with an optional flame cutting torch, bevel stations, and powder and inkjet marking.

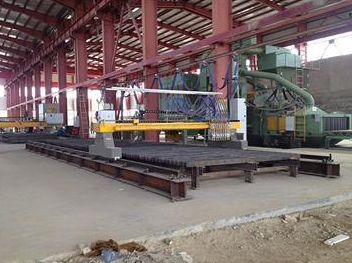

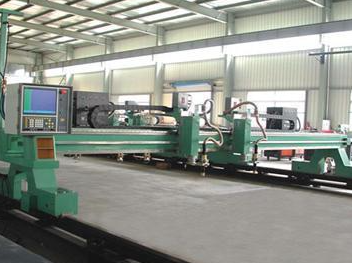

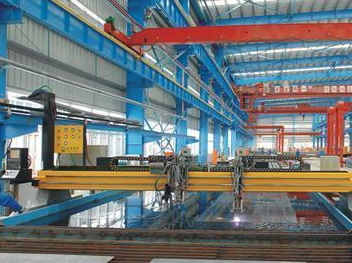

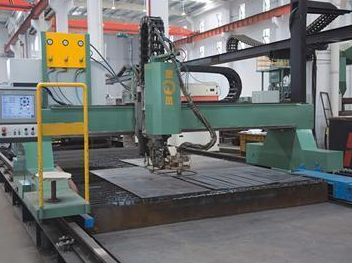

The AG series is a CNC gantry cutting machine for plate. The standard machine cuts with plasma, and can also be fitted with flame cutting for thick steel. Plasma cutting with the right working gas handles metals that are hard to cut with oxygen, and is especially effective on stainless steel, carbon steel, aluminium, copper, titanium, and nickel. Jinfeng says the cutting speed on ordinary carbon steel sheet can be 5 to 6 times that of oxygen cutting, with a smooth cut face, little thermal deformation, and almost no heat-affected zone.

There are three models by gantry span: the AG-400 (4,000mm span, 3,200mm effective cutting width), the AG-500 (5,000mm, 4,200mm), and the AG-600 (6,000mm, 5,200mm). The rail is 14,000mm long as standard, extendable on request, and the effective cutting length is the rail length less 2,000mm, so 12,000mm as standard. The machine has two cutting torch carriages, bilateral longitudinal drive, and a travel speed of 0.1 to 12m/min.

Jinfeng lists customers in car parts, pressure vessels, chemical machinery, the nuclear industry, general and engineering machinery, and steel structure.

Why Choose a Gantry Plasma Cutter?

Plasma cuts faster than oxy-fuel on thin and medium plate, and cuts stainless and non-ferrous metals that flame cutting can't. Adding a flame torch to the same gantry means one machine can cut thin plate with plasma and thick plate with oxy-fuel.

• Plasma and flame on one machine. Flame is an option for thick steel.
• Three widths. Cutting widths from 3.2m to 5.2m, and rails that can be extended.
• Full marking options. Powder and inkjet marking identify parts and welding lines.
• Bevel cutting options. Straight-line bevel stations and a rotating contour bevel torch.
• Rigid frame. A welded square-tube beam, stress-relieved by vibration ageing.

Machine Specifications

• AG-400: span 4,000mm; effective cutting width 3,200mm
• AG-500: span 5,000mm; effective cutting width 4,200mm
• AG-600: span 6,000mm; effective cutting width 5,200mm

Common to all models

• Rail length: 14,000mm (extendable to customer requirements)
• Effective cutting length: rail length minus 2,000mm
• Cutting torch carriages: 2
• CNC single flame cutting torch: optional
• Guide rail: 43kg/m
• Operating position: left side
• Cabling: suspended
• Colour: blue

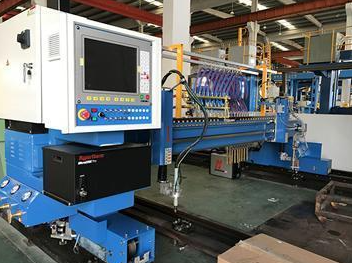

• CNC system: Hypertherm MicroEDGE Pro (see notes)
• Nesting software: FastCAM (Pro)
• Maximum travel speed: 0.1 to 12m/min
• Torch lifting distance: 200mm
• Linear positioning accuracy: ±0.5mm per 10m
• Linear repeatability: ±0.4mm per 10m
• Marking precision: 0.5mm or better
• Set-speed error: ±5% or better

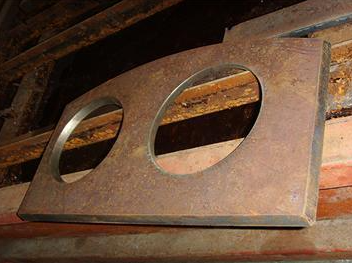

• Cut surface roughness: Ra 12.5 to 25
• Automatic height adjustment precision: 0.5mm or better
• Longitudinal drive: bilateral
• Other functions: perforation with third-level air supply, groove cutting, fine hole cutting

Construction

• Beam: welded square tube, vibration aged to relieve stress
• Drive: precision gear and rack (grade 7), planetary gear reducers, Panasonic AC servo drives (domestic servo optional)
• Guides: linear guides (imported from Taiwan) on the cross rail; special steel longitudinal rails
• Lifting: alloy steel with a linear guide and ball screw
• End frames: guide wheels, and a dust remover for the rail

Condition Available: New

Optional Cutting and Marking Units

• Single flame cutting torch: for shapes of any geometry, up to 200mm thick (300mm by contract), with flashback arrestors and a hose protected with stainless mesh
• Flame triple or fourfold torch bevel station: cuts up, straight, and bottom bevels at once, in V, X, Y, and K forms, 0 to 45°, up to 75mm thick, with preheat and large-angle options
• Rotation, contour bevel, or curve cutting torch: ±45° deflection and ±540° rotation for cutting fixed and variable bevels on curves, with anti-collision protection
• Double or twin torch: two flame torches adjustable from 80 to 200mm apart for cutting identical parts together
• Powder marking device: sinters a white line of 0.8 to 1mm on the plate to show part shapes, welding lines, and marks
• Inkjet marking device: prints symbols, dates, and variable text on cut parts, at up to 12m/min

Key Features

• CNC gantry with plasma cutting and optional flame cutting
• Three spans, with rails extendable beyond the standard 14m
• Hypertherm MicroEDGE Pro CNC and FastCAM nesting
• Bilateral drive with precision rack and pinion
• Automatic height control
• Range of bevel and marking options

Applications

• Cutting steel, stainless steel, and non-ferrous plate
• Car parts, pressure vessels, chemical and nuclear equipment
• General and engineering machinery
• Steel structure fabrication

Who This Machine Is For

• Fabrication shops cutting medium and large steel plate
• Pressure vessel and heavy engineering manufacturers
• Shops that also cut stainless steel and aluminium

Frequently Asked Questions

What plate sizes can it cut?
Effective cutting width of 3.2m, 4.2m, or 5.2m, and length of 12m as standard on the 14m rail.

Can it cut thick steel?
Yes, with the optional single flame torch, which cuts up to 200mm (300mm by contract). The flame bevel station cuts up to 75mm.

What metals can it cut?
Plasma cuts stainless steel, carbon steel, aluminium, copper, titanium, and nickel.

Can it cut bevels?
Yes, with optional flame bevel stations (0 to 45°) or a rotating contour bevel torch.

Can it mark parts?
Yes, with optional powder marking and inkjet marking devices.

Can the rails be extended?
Yes. The standard rail is 14m, and it can be extended to the customer's requirements.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This machine is available new, built to order.
