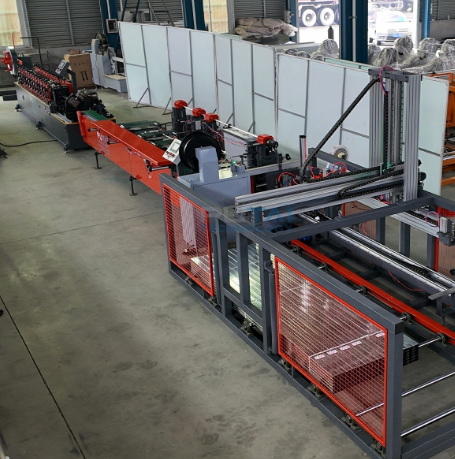

PUTAI Automatic Drywall Profile Roll Forming Machine – Light Steel Keel Line, Made in Tianjin, China

Known in different markets as a drywall profile machine, C channel machine or light steel keel machine, the PUTAI automatic drywall profile roll forming machine produces the standard C-shaped steel channels behind gypsum board walls and ceilings. Built at PUTAI's factory in Tianjin, China, it runs galvanized coil in the common drywall gauges of 0.45, 0.5 and 0.6 mm through 12 forming stations, cutting each channel to length on the move at up to 50 m/min. The whole process is automated from coil to finished profile, giving construction material suppliers consistent quality, less waste and low-cost mass production.

One Product, Many Names

• Drywall profile: The common term in Europe and North America
• Light steel keel: Widely used in China, Southeast Asia, the Middle East and Africa
• C channel or C profile: Describes the C-shaped cross-section
• Gypsum board channel: Refers to its use supporting plasterboard

What Buyers Gain

• Speed: Up to 50 m/min for high daily output
• Low running costs: A 5.5 kW main motor keeps power consumption down
• Consistency: Every channel is formed to the same dimensions, so walls and ceilings go up straight
• Less waste: Channels are cut to exact length directly from coil
• Reliability: Forged Cr12 rollers and a gear drive for long, low-maintenance service

Machine Build

• Forming section: 12 stations with forged Cr12 (D3) rollers
• Shafts: 50 mm forged 45# steel
• Drive: Gear transmission with a 5.5 kW main motor
• Roller stands: Archway frames with graduated adjusting nuts for accurate, repeatable setup
• Cutting: Servo tracking cut-off that cuts without stopping the line

Technical Specifications

• Product: Drywall C profile (light steel keel)
• Material: Galvanized steel (GI)
• Material thickness: 0.45 mm, 0.5 mm, 0.6 mm
• Forming stations: 12
• Roller material: Cr12 (D3), forged
• Shaft: 50 mm, 45# steel, forged
• Speed: 0 – 50 m/min
• Transmission: Gear drive
• Main motor power: 5.5 kW
• Cutting system: Servo tracking cut-off
• Machine weight: Approx. 4,000 kg

Where the Profiles Are Used

• Gypsum board partition walls
• Suspended plasterboard ceilings
• Wall linings and furring
• Prefabricated and modular buildings
• Residential, commercial and hospitality fit-outs

Buying Information

• Brand: PUTAI Technology
• Manufacturer: Tianjin PUTAI Technology Co., Ltd
• Place of origin: Tianjin, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Plastic film wrap for export
• Warranty: One year
• After-sales: Engineer support provided

Buyer Questions

• Is a light steel keel machine the same as a drywall profile machine? Yes. They're different regional names for the same type of machine, making C-shaped channels for gypsum board systems.
• Where is the machine made? By Tianjin PUTAI Technology Co., Ltd at its factory in Tianjin, China, for export worldwide.
• What gauges does it run? Galvanized steel in 0.45, 0.5 and 0.6 mm.
• How fast is it? Up to 50 m/min.
• How much power does it use? The main motor is 5.5 kW, keeping running costs low.
• Can the channel size be customised? Profiles are built to your drawing. Send your required sizes with your enquiry.
• What should I send for a quotation? Your C profile drawing or sample, sizes, thickness, target output, and local voltage and frequency.
