Automatic Heavy Duty Column and Boom Welding Machine (HDC&B)

Qizhi (Nanjing Qizhi Engineering & Equipment): Nanjing, China

Heavy-duty welding manipulator with a square guide rail, ±180° column rotation, and reach from 4×4m up to 12×12m, made for holding SAW and other welding heads over large tanks, vessels, and wind tower sections.

Overview

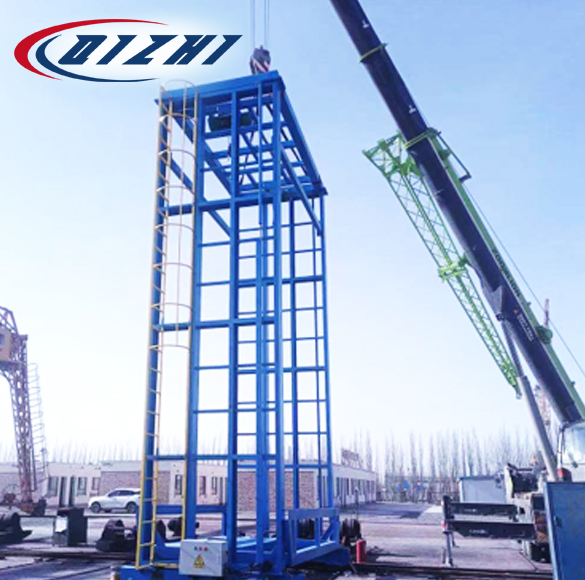

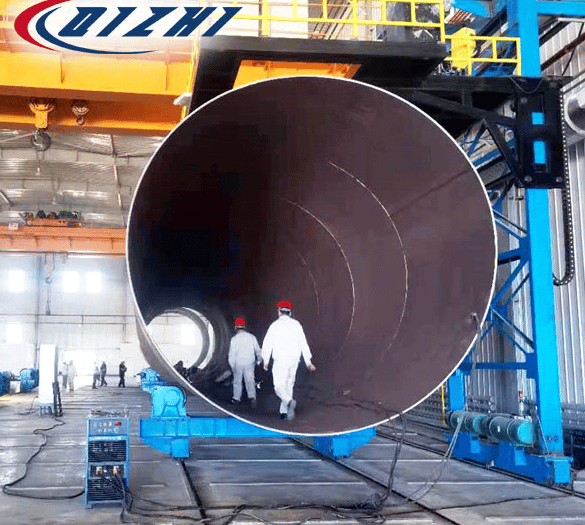

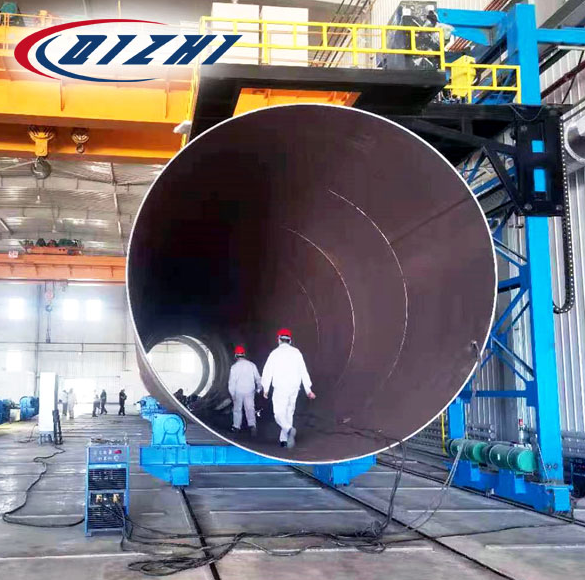

The HDC&B is a heavy-duty column and boom welding machine (a welding manipulator). A vertical column carries a horizontal boom, and the boom holds the welding head, such as a submerged arc welding (SAW) head, and positions it over the work. It is used on large pressure vessels, tanks, and wind tower sections, usually together with a welding rotator that turns the shell.

It is built on a square-type guide rail for high load capacity, good stability, and very little downward deflection of the boom. A shifting fork holds the column to prevent the slide and boom from falling, which is a safety feature for heavy-duty operation. The column rotates ±180° at a speed of 0.36rpm (or a customised speed), and the whole machine can ride on a carriage that travels along a rail.

There are five standard sizes, from the 4×4 (4m lift and 4m reach) to the 9×9 to 12×12 range. Qizhi says the machine can be customised to user requirements.

Why Choose a Heavy-Duty Column and Boom?

Large vessel and tower welds are long and need the welding head held steady at a fixed position while the shell rotates. A rigid, well-guided boom keeps the head where it should be, even with heavy heads and long reach.

• Stiff boom. A square guide rail gives high load capacity and very little downward deflection.
• Safe by design. A shifting fork holds the column to prevent the slide and boom from falling.
• Five sizes. Reach from 4m to 12m, so it can be matched to the work.
• Wide positioning. ±180° column rotation and a travelling carriage give access to the whole weld area.
• Customisable. Qizhi can adapt the machine to your requirements.

Machine Specifications

By model

• HDC&B 4×4: effective lifting range 4,000mm; effective retracting range 4,000mm
• HDC&B 5×5: effective lifting range 5,000mm; effective retracting range 5,000mm
• HDC&B 6×6: effective lifting range 6,000mm; effective retracting range 6,000mm
• HDC&B 7×7 to 8×8: effective lifting range 7,000 to 8,000mm; effective retracting range 7,000 to 8,000mm
• HDC&B 9×9 to 12×12: effective lifting range 9,000 to 12,000mm; effective retracting range 9,000 to 12,000mm

Common to all models

• Lifting speed: 1,000mm/min
• Retracting speed: 100 to 1,000mm/min
• Column rotation: ±180°, at 0.36rpm (or customised)
• Carriage travelling speed: 2,000mm/min
• Guide rail: square type
• Safety: shifting fork holds the column to prevent the slide and boom from falling

Other figures listed on the page, without a clear model match

• Minimum boom height: 1,100mm and 1,118mm (traveling with rotation); 950mm and 1,170mm (fixed with rotation)
• Maximum permissible load at the boom front end: 200kg and 300kg
• Inner span of carriage rail: 2,000mm, 2,200mm, and 2,500mm

Condition Available: New

Key Features

• Square-type guide rail with high load capacity and very little downward deflection
• Shifting fork holds the column to prevent the slide and boom from falling
• ±180° column rotation
• Five sizes from 4×4m to 12×12m
• Travelling carriage option
• Customisable to user requirements

Applications

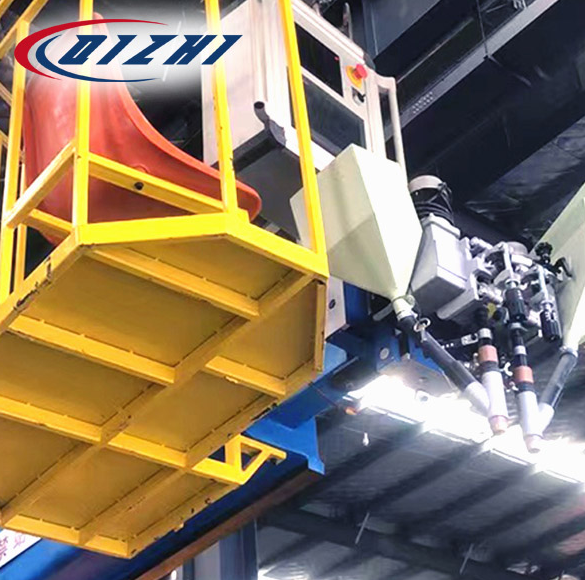

• Holding submerged arc (SAW) and other welding heads on pressure vessels and tanks
• Wind tower section welding
• Long circumferential and longitudinal welds on large shells

Who This Machine Is For

• Pressure vessel, boiler, and tank fabricators
• Wind tower manufacturers
• Heavy fabricators automating long weld seams

Frequently Asked Questions

What is a column and boom used for?
It holds a welding head on a boom at the right position and height, so the seam can be welded automatically while the workpiece rotates or moves.

What sizes are available?
Five models from 4×4m up to 12×12m in lifting and retracting range.

How safe is it?
A shifting fork holds the column to prevent the slide and boom from falling.

How much can the boom carry?
The page lists maximum permissible loads of 200kg and 300kg at the boom front end, but doesn't say which models these apply to.

Can it be customised?
Yes. Qizhi says it can be customised to user requirements.

Does Qizhi make other manipulators?
Yes, including light duty and manned versions.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This machine is available new, built to order.
