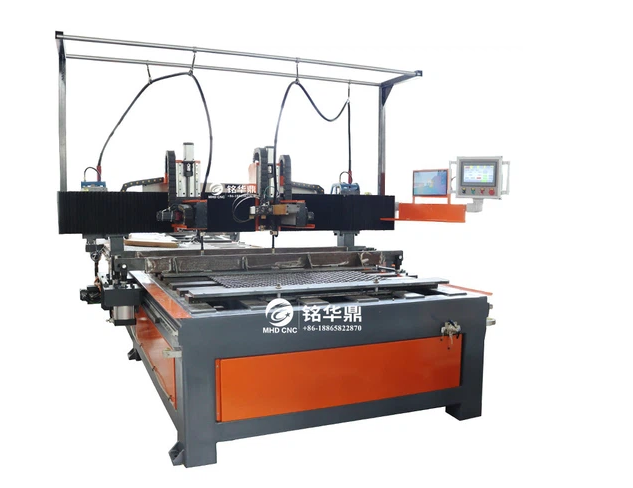

Automatic Metal Mesh Welding Machine (6-16mm Rebar) | MHD CNC, Jinan, China

The Automatic Metal Mesh Welding Machine replaces manual welding in the production of steel mesh. It welds carbon steel rebar from 6mm to 16mm in diameter using the MIG/MAG process, and produces meshes up to 1.3m × 5m with adjustable spacing from 6mm to 50mm.

The machine is servo driven, and the welding area has dual pneumatic clamps with adjustable pressure of 0.2 to 0.5MPa. The front and rear cylinders clamp synchronously, which keeps the mesh flat and stops it shifting during welding. MHD CNC notes this makes it particularly suitable for welding large, thin plates.

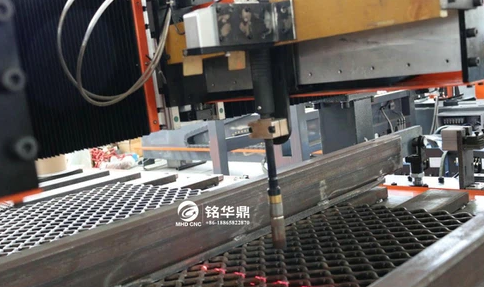

Welding is done with two water-cooled 500A welding guns, powered by two NB-PULSE350 gas-shielded arc welding power sources, with two CW3000 water chillers included as standard. The machine offers two welding modes: circle welding for thick rebar, where continuous deposition builds strength, and interval welding for thin rebar, which reduces heat input and deformation.

Why Choose an Automatic Mesh Welder?

Welding mesh by hand is slow, varies from worker to worker, and is increasingly expensive. MHD CNC positions this machine as a way to raise output and hold quality constant.

• Consistent weld quality. Welding current, voltage, and speed are precisely controlled, so every weld point gets the same treatment.
• Cleaner welds. Machine welding reduces slag and spatter, giving a smoother surface and better-looking mesh.
• Higher output and lower labour cost. Continuous automatic welding replaces heavy manual work and reduces waste and rework.
• Accurate tracking. A laser scanner locates weld points in real time, and the PLC adjusts the welding path to an accuracy of ±0.1mm.
• Two welding modes. Choose circle welding for thick rebar or interval welding for thin rebar to control heat and distortion.

Machine Specifications

• Material: carbon steel
• Weldable rebar diameter: 6mm to 16mm
• Welding method: MIG/MAG
• Weld spacing: 6mm to 50mm (adjustable)
• Weldable mesh size: 1.3m × 5m
• Drive system: servo (5 servo systems)
• Clamping: dual pneumatic clamps in the welding area, adjustable pressure 0.2 to 0.5MPa, with synchronous front and rear cylinders
• Laser scanner range: 300mm
• Tracking accuracy: ±0.1mm
• Welding modes: circle welding (thick rebar) and interval welding (thin rebar)
• Machine working voltage: 380V, 3-phase, 50Hz

Supplied equipment

• Power source: NB-PULSE350 (380V, 3-phase) × 2
• Welding torches: EU-model water-cooled, 500A × 2
• Water chillers: CW3000 × 2
• Machine × 1
• Electrical cabinet × 1
• Control panel × 1
• Laser scanner × 1, with laser scanner screen × 1

Condition Available: New

Key Features

• Automatic MIG/MAG welding for 6 to 16mm rebar
• Laser tracking with PLC control, accurate to ±0.1mm
• Dual welding modes: circle welding and interval welding
• Two water-cooled 500A welding guns and two pulse power sources
• Servo drive with five servo systems
• Synchronous dual pneumatic clamping for flat, stable mesh
• Automatic dipping system to improve weld formation and cut spatter
• Two CW3000 water chillers included

Applications

• Welding steel and rebar mesh
• Production of mesh panels up to 1.3m × 5m
• Mesh production where consistent weld quality matters

Who This Machine Is For

• Rebar and steel mesh manufacturers
• Fabricators replacing manual mesh welding
• Producers making larger mesh panels with thicker rebar

Frequently Asked Questions

What does this machine do?
It automatically welds steel and rebar mesh, using MIG/MAG welding.

What rebar sizes can it weld?
Carbon steel rebar from 6mm to 16mm in diameter.

What size mesh can it produce?
Up to 1.3m × 5m, with adjustable spacing from 6mm to 50mm.

How does the laser tracking work?
A laser scanner with a 300mm range locates the weld points in real time, and the PLC adjusts the welding path, giving an accuracy of ±0.1mm.

What welding modes does it offer?
Circle welding, where continuous deposition suits thick rebar, and interval welding, which suits thin rebar by reducing heat input and deformation.

What equipment is included?
Two NB-PULSE350 power sources, two water-cooled 500A torches, two CW3000 water chillers, a laser scanner, an electrical cabinet, a control panel, and a five-axis servo system.

What power does it need?
380V, 3-phase, 50Hz.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, built to order.
