Automatic Plastic Strip Nail Collating Machine (21° Framing Nails) | FFI, Hefei, China

Plastic Strip Nail Collating Equipment

Fine Fasteners Industry (FFI): Hefei, Anhui, China

Fully automatic machine that arranges loose nails and fixes them in an injection-molded plastic strip, producing 21° collated framing nails for pneumatic nail guns, with servo cutting and PLC control.

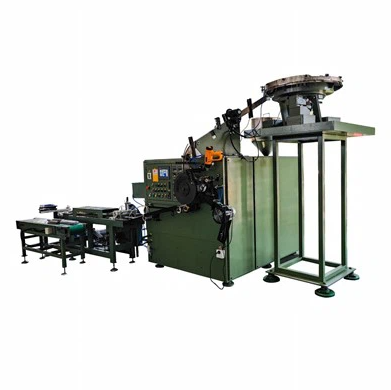

The automatic plastic strip nail collating machine is post-processing equipment for a nail production line. It takes loose nails, arranges them, and fixes them with an injection-molded plastic strip to make 21° plastic collated framing nails for pneumatic framing nail guns.

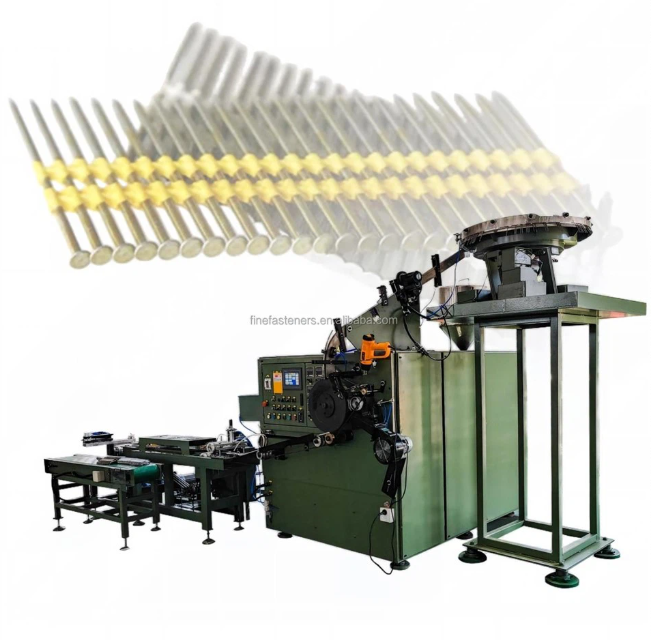

The machine consists of a vibrating nail feeder, an injection molding unit, a cooling system, a servo cutting unit, and a PLC control system. Nails are sorted and oriented by the vibrating feeder, hot-melt plastic is injected around them to form an integrated strip, the strip is water-cooled, and a servo cutter cuts it to length. The operator only needs to refill the nails.

FFI says the nails are firmly wrapped, resist coming apart or dropping out, and that plastic strips are stronger than paper strips and more shock-resistant during high-speed nailing. Photoelectric sensors and the PLC stop the machine and raise an alarm for missing nails or faults. It processes plain shank, ring shank, and screw shank nails in steel or galvanised finish, and can be connected to a nail making machine to form a complete production line.

Why Choose Plastic Strip Collating?

Framing nail guns need nails supplied in strips at a set angle. Plastic strips hold nails more strongly than paper strips and stand up better to high-speed firing. Collating your own nails lets a nail factory sell the higher-value collated product.

• Framing-gun compatible. Makes standard 21° plastic collated nails.
• Strong strips. FFI says plastic is more shock-resistant than paper.
• Automatic. Feeding, injection wrapping, cooling, and cutting, with only nail refilling by the operator.
• Inline option. Can connect to a nail making machine for continuous production.
• Safe operation. Stops and alarms for missing nails or malfunctions.

Machine Specifications

The page gives no numeric specifications. The following is stated:

• Product made: 21° plastic collated framing nails
• Nail types: plain shank, ring shank, and screw shank; steel and galvanised nails
• Feeding: vibrating nail feeder
• Strip forming: injection molding of hot-melt plastic
• Cooling: water cooling
• Cutting: servo cutting to fixed length
• Control: PLC with photoelectric sensors and alarm

Not stated: nail diameter and length range, output rate, collated strip length, injection unit capacity, power supply and consumption, weight, and dimensions.

Condition Available: New

Key Features

• Vibrating feeder that sorts and orients the nails
• Injection-molded plastic strip that fixes the nails at 21°
• Water cooling and servo fixed-length cutting
• PLC control with photoelectric sensors and fault alarms
• Handles plain, ring, and screw shank nails, including galvanised
• Can run inline with a nail making machine

Applications

• Collated framing nails for wood frame housing and building construction
• Nail factories adding collated nail production
• Continuous lines linked to a nail making machine

Who This Machine Is For

• Nail manufacturers adding collated framing nails to their range
• Factories with an existing nail making machine
• Producers supplying pneumatic framing nail guns

Frequently Asked Questions

What does this machine make?
21° plastic collated framing nails.

What nails can it handle?
Plain shank, ring shank, and screw shank nails, in steel or galvanised finish.

How does it work?
A vibrating feeder arranges the nails, hot-melt plastic is injected around them to make a strip, the strip is water-cooled, and a servo cutter cuts it to length.

Can it connect to a nail making machine?
Yes. FFI says it can run inline with a nail making machine for continuous production.

How many operators does it need?
FFI says the operator only needs to refill the nails.

What size nails and what output?
The page doesn't say. Please contact the supplier with your nail size and target output.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This machine is available new.
