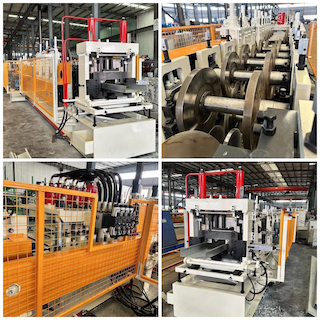

C Channel Steel Purlin Roll Forming Machine in USA

The C Channel Steel Purlin Roll Forming Machine is a high-performance solution designed to manufacture precise and durable steel purlins for the construction and industrial sectors in the USA. Known for its efficiency and reliability, this machine is engineered to meet the demands of steel building structures, providing accurate, customizable profiles for roofs, walls, and framing. It is optimized for heavy-duty production, ensuring consistent output while adhering to American industrial standards and safety regulations.

The machine is ideal for producing purlins used in steel construction projects, such as warehouses, factories, commercial buildings, and more. Its advanced control system ensures smooth operation, while its robust build guarantees long-term durability.

Specifications

• Profile Size: 5" to 12"
• Coil Width: Variable
• Forming Speed: 50-60 ft/min
• Material Thickness: Variable
• Machine Weight: 15 tons
• Machine Footprint: 60 ft x 12 ft
• Main Power: 32 HP, 480V, 3-phase
• Stations: 21 forming stations
• Cutting Type: Hydraulic shear
• Control System: Delta PLC
• Safety Covers: Included for enhanced operator safety

Profiles Related to This Machine

The machine is capable of producing C channel purlin profiles with precise specifications, including:

1. Width: 5" to 12"
2. Height and Thickness: Adjustable based on material and project requirements
3. Material: Steel or galvanized steel
4. Applications: Roof purlins, wall beams, floor framing, and industrial construction elements

Features

1. High Speed & Precision:
   • Forming speed of 50-60 ft/min ensures high productivity.
   • Delta control system enhances precision and minimizes material waste.
2. Durable Construction:
   • The 15-ton weight and robust footprint of 60 ft x 12 ft ensure stability during operation.
   • Hydraulic shear cutting delivers clean and accurate cuts.
3. Customizable Configurations:
   • Adjustable profile sizes (5" to 12") to cater to varying construction needs.
   • Compatibility with variable coil widths and material thicknesses.
4. Safety & Ease of Operation:
   • Integrated safety covers protect operators during operation.
   • Delta PLC control system simplifies machine management and troubleshooting.

Applications

The C Channel Steel Purlin Roll Forming Machine is widely used in:

• Industrial and commercial steel building construction
• Roof and wall support systems
• Agricultural buildings
• Prefabricated structures
• Solar panel mounting systems

Setup and Installation

• Site Preparation: Requires a workspace of at least 60 ft x 12 ft.
• Power Supply: Compatible with 480V, 3-phase industrial power.
• Installation Time: 1-2 weeks, depending on site readiness.
• Training: On-site operator training is available.

Maintenance Requirements

• Regular lubrication of rollers and moving parts.
• Periodic inspection of hydraulic and electrical systems.
• Ensure cleanliness of the Delta control system for optimal performance.

Question and Answer Section

Q1. What types of steel can this machine process?

A: The machine is designed for galvanized steel, mild steel, and high-strength steel materials, accommodating varying thicknesses.

Q2. What is the typical lead time for installation and setup?

A: Installation and setup typically take 1-2 weeks, depending on the site’s preparedness and the availability of technicians.

Q3. Can this machine handle custom profiles?

A: Yes, the machine supports adjustable profile sizes ranging from 5" to 12", suitable for custom configurations.

Q4. How does the Delta control system enhance the machine's performance?

A: The Delta PLC control system ensures precise automation, easy troubleshooting, and efficient production with minimal material waste.

Q5. What are the power requirements for this machine?

A: The machine requires a 480V, 3-phase power supply and consumes approximately 32 HP.

Q6. What safety features are included?

A: The machine is equipped with full safety covers to protect operators and prevent accidents during operation.

Q7. Is it suitable for large-scale production?

A: Yes, with a forming speed of 50-60 ft/min and 21 forming stations, the machine is designed for high-volume production.

Q8. Can it be used in the USA?

A: Absolutely! The machine is designed to meet American power and industrial standards, making it fully compatible for use across the USA.
