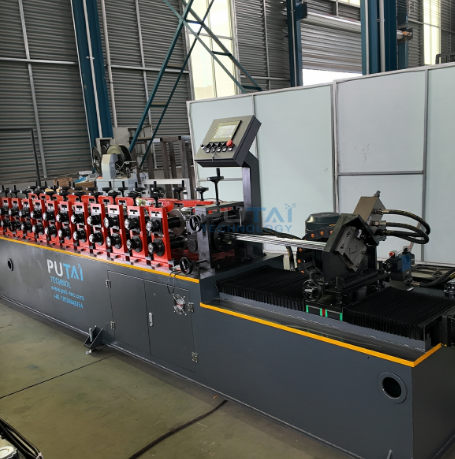

C U Channel Roll Forming Machine, 50 m/min | PUTAI, Tianjin, China

PUTAI C U Channel Roll Forming Machine – Made in Tianjin, China

The PUTAI C U channel roll forming machine produces the two core components of drywall and partition wall systems: C-shaped studs for the vertical frame and U-shaped tracks for the floor and ceiling channels. Built at PUTAI's factory in Tianjin, China, it forms the standard drywall gauges of 0.45, 0.5 and 0.6 mm galvanized steel through 12 forming stations at up to 50 m/min. With a main motor of just 5.5 kW, it delivers strong output with low power consumption, making it a practical choice for building material suppliers and prefabricated building manufacturers.

What Are C Studs and U Tracks?

• C studs: Vertical framing members with a C-shaped section that carry the plasterboard
• U tracks: Horizontal channels fixed to the floor and ceiling that hold the studs in place
• Used together to build lightweight, fast-to-install partition walls and wall linings
• Lighter, straighter and more fire-resistant than timber framing

Key Features

• Produces both C studs and U tracks for complete drywall framing systems
• Speeds of up to 50 m/min
• Low power consumption with a 5.5 kW main motor
• Built for standard drywall gauges of 0.45, 0.5 and 0.6 mm
• 12 forming stations with forged Cr12 rollers
• Servo tracking cutting system cuts to length without stopping the line
• Gear drive for accurate, low-maintenance running
• Archway roller stands with graduated adjusting nuts for quick, repeatable setup

Technical Specifications

• Products: C stud, U track
• Material: Galvanized steel (GI)
• Material thickness: 0.45 mm, 0.5 mm, 0.6 mm
• Forming stations: 12
• Roller material: Cr12 (D3), forged
• Shaft diameter: 50 mm
• Shaft material: 45# steel, forged
• Speed: 0 – 50 m/min
• Transmission: Gear drive
• Main motor power: 5.5 kW
• Cutting system: Servo tracking cut-off
• Machine weight: Approx. 4,000 kg

How the Production Line Works

• Decoiling: Galvanized steel coil is loaded and fed into the line
• Roll forming: 12 stations shape the strip into a C stud or U track profile
• Servo tracking cut: Each piece is cut to the programmed length while the line keeps running
• Output: Finished studs and tracks are collected for bundling

Applications

• Drywall partition walls in homes, offices and hotels
• Wall linings and shaft walls
• Ceiling framing
• Prefabricated and modular buildings
• Commercial fit-out and renovation projects

Which PUTAI Stud and Track Machine Is Right for You?

• C U Channel Roll Forming Machine (this machine): Up to 50 m/min with low power use, for standard 0.45–0.6 mm drywall gauges
• Drywall C U Channel Roll Forming Machine: 25–40 m/min, with inline punching and web widths from 40 to 150 mm
• High Speed Drywall Light Steel Machine: Up to 100 m/min, for 0.4–0.8 mm steel and very high-volume production

Commercial Details

• Brand: PUTAI Technology
• Manufacturer: Tianjin PUTAI Technology Co., Ltd
• Place of origin: Tianjin, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Plastic film wrap for export
• Warranty: One year
• After-sales: Engineer support provided

Frequently Asked Questions

• Where is this machine made? It is manufactured by Tianjin PUTAI Technology Co., Ltd at its factory in Tianjin, China, and exported worldwide.
• Can it make both C studs and U tracks? Yes. The line produces both profiles for complete drywall framing.
• What thickness does it form? Galvanized steel in 0.45, 0.5 and 0.6 mm gauges.
• How fast does it run? Up to 50 m/min.
• Is it expensive to run? The main motor is only 5.5 kW, which keeps power consumption low.
• Does the line stop to cut? No. The servo tracking cutter cuts each piece while the line keeps running.
• What should I send for a quotation? Your stud and track drawings or samples, sizes needed, thickness, target output, and local voltage and frequency.
