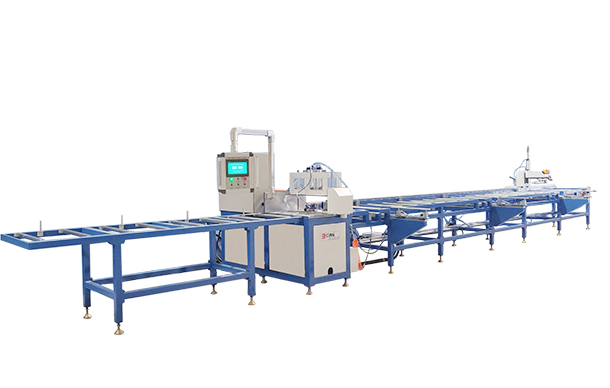

CCSN-500/550 CNC Automatic Aluminium Formwork Cutting Machine | CBS Industry, Jinan, China

The CCSN-500/550 is a CNC automatic cutting machine for large aluminium profiles, designed especially for aluminium formwork extrusions. It cuts at 90 degrees only, which suits the straight cross-cutting that makes up most formwork profile production.

An automatic feeding manipulator picks up the profile and feeds it according to the cutting list, so operators load material and the machine works through the job. The saw blade feed uses a linear bearing moving pair with a pneumatic feeding cylinder and hydraulic damping system, which gives smooth movement. A spray mist cooling system cools the blade quickly during cutting.

The cutting range is extra large, so several profiles can be cut in a single pass. This is useful for high-volume formwork production, where cut speed and repeatability matter more than angle flexibility.

Why Choose a Dedicated Formwork Cutting Machine?

Aluminium formwork panels are made from long, large-section extrusions that need to be cut to many different lengths with very consistent accuracy. A general-purpose saw slows this down and leaves more room for error.

This machine is built around that job:

• Cutting-list feeding. The manipulator feeds profiles to the sizes in your cutting list, reducing manual measuring and handling.
• Tight tolerance. Repeat sizing tolerance is ±0.2mm and the angle tolerance is under 5 minutes of arc, so cut parts fit consistently in the next stage of panel assembly.
• Multiple profiles per pass. The large cutting range lets you cut several profiles at once.
• Durable build. The compact structure has a small footprint, and the worktable surface is specially treated for durability.

If you need angled cuts, CBS makes separate degree-cutting and variable-angle machines. This one is 90° only.

Machine Specifications

• Cutting angle: 90° only
• Saw blade diameter: 500mm or 550mm
• Saw blade speed: 2800 r/min
• Maximum cutting section: 600 × 80mm, 450 × 150mm, or 600 × 95mm, 450 × 175mm (depending on configuration)
• Feeding speed: up to 10m/min
• Repeat sizing tolerance: ±0.2mm
• Angle tolerance: less than 5′ (5 minutes of arc)
• Input voltage: 3-phase, 380V, 50Hz
• Input power: 4.0kW
• Working air pressure: 0.5 to 0.8MPa
• Air consumption: 120L/min

Condition Available: New

Key Features

• Automatic feeding manipulator that feeds profiles from the cutting list
• Linear bearing saw feed with pneumatic cylinder and hydraulic damping for smooth movement
• Spray mist cooling system to cool the saw blade quickly
• Extra large cutting range for multiple profiles in one pass
• Compact structure with small footprint
• Specially treated worktable surface for durability
• High machining accuracy and durability

Applications

• Cutting aluminium formwork profiles and extrusions to length
• 90° cutting of large aluminium profiles
• U panel cutting (demonstrated by CBS)

Who This Machine Is For

• Aluminium formwork manufacturers
• Formwork system producers cutting high volumes of large profiles
• Aluminium extrusion processors handling large-section profiles

Frequently Asked Questions

Can this machine cut angles other than 90°?
No. It is a 90° cutting machine only. CBS supplies separate degree-cutting and variable-angle cutting machines for angled cuts.

How accurate is it?
Repeat sizing tolerance is ±0.2mm and the angle tolerance is under 5 minutes of arc.

What is the difference between the 500 and 550?
The number refers to the saw blade diameter, 500mm or 550mm. The page lists maximum cutting sections of 600 × 80mm, 450 × 150mm, 600 × 95mm, and 450 × 175mm, so ask CBS which section size applies to which blade.

How does the automatic feeding work?
A feeding manipulator picks up the profile and feeds it automatically according to your cutting list, at speeds up to 10m/min.

Can it cut more than one profile at a time?
Yes. The extra large cutting range allows several profiles to be cut in a single pass.

What power and air supply does it need?
3-phase 380V, 50Hz power at 4.0kW, plus compressed air at 0.5 to 0.8MPa with 120L/min consumption.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer that supplies complete formwork machine ranges and turn-key lines.
